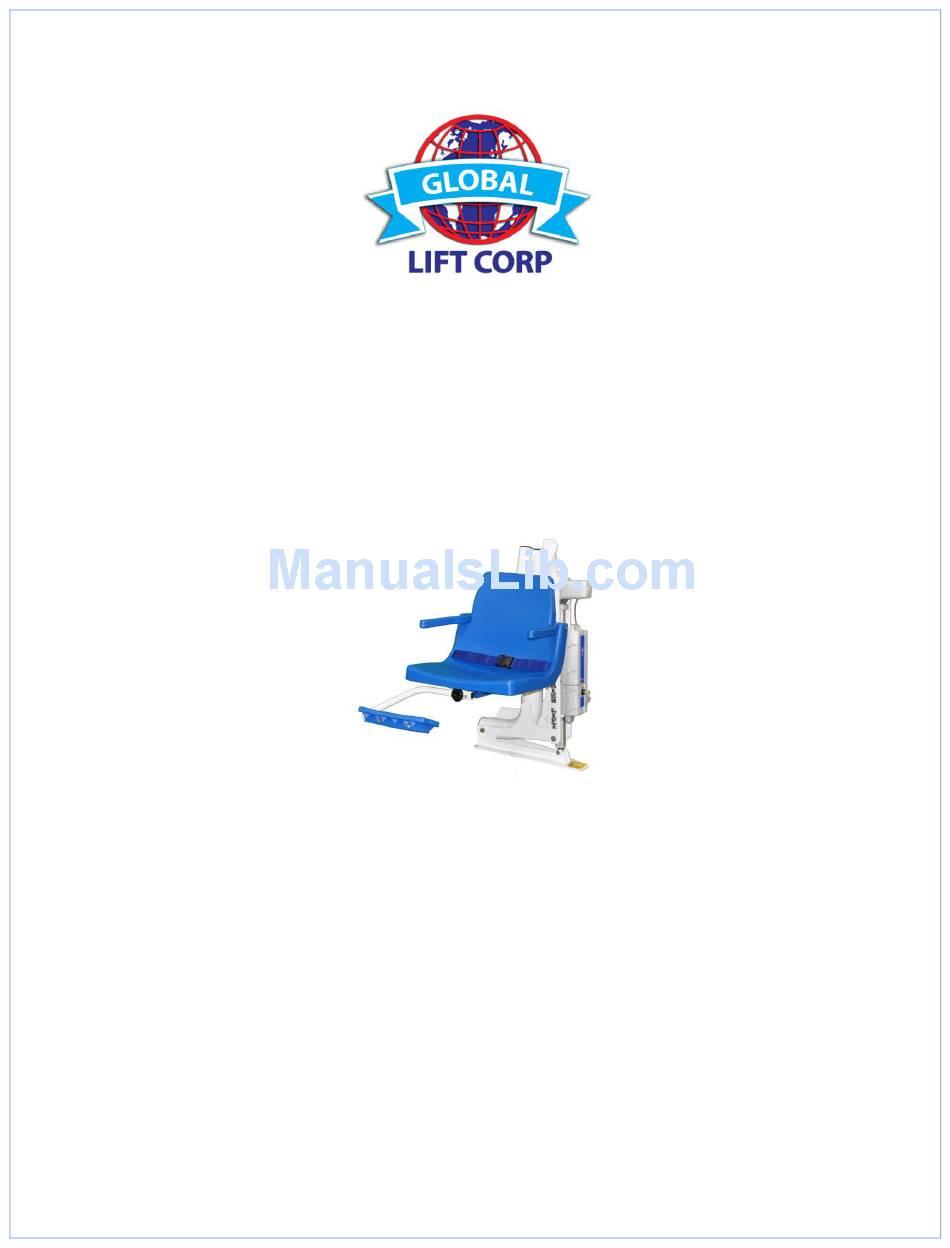

- Page 1 Owner’s Manual Superior Series Proformance Series S-350 / P-375 Page | 1...
- Page 2 SUPERIOR AND PROFORMANCE SERIES POOL LIFTS S-350 / P-375 TABLE OF CONTENTS INTRODUCTION PAGE – 3 ADA GUIDELINES FOR PLACEMENT PAGE – 4 24 VOLT BATTERY SYSTEM/WITH CONTROLS PAGE – 5 SUPERIOR SERIES OPERATING INSTRUCTIONS PAGE – 6 UNIT MAINTENANCE AND CARE PAGE –...
- Page 3 Your Number One Choice for Commercial Pool Access Equipment Global Lift Corp. is located in Mid Michigan, Global Lift Corp. prides itself in manufacturing top of line quality aquatic access equipment. Global Lift Corp.'s key staff has a century of combined industry experience and we take pride in each and every product that we build.
- Page 4 ADA GUIDELINES FOR POOL LIFT PLACEMENT 1. Pool Lift Location. Pool lifts shall be located where the water level does not exceed 48 inches (1220 mm). 2. Seat Location. In the raised position, the centerline of the seat shall be located over the deck and 16 inches (405 mm) minimum from the edge of the pool.
- Page 5 24 VOLT BATTERY SYSTEMS WITH CONTROLS All of Global Lift Corp’s Superior/Proformance Series Lifts are equipped with a sealed 24 volt battery that is rechargeable. Along with a charging unit, hand held controller and control compartment. The 24 volt battery mounts right above the control compartment and the battery simply snaps in.
- Page 6 SUPERIOR / PROFORMANCE SERIES POOL LIFT OPERATING INSTRUCTIONS Prior to using the Superior/Proformance Series Pool Lift perform a test run of the lift empty. Once that is completed and the lift is back to original position, make sure that the arm lifts are in the up position and the seatbelt is unbuckled, once acknowledged you are ready! Once you are in the seat, buckle the seatbelt (make sure it is snug) and lower the arm rails.
- Page 7 Maintenance Regular servicing will help prolong the life of your lift. Routine maintenance and cleaning is very important. The following is a routine maintenance you should follow. Daily Check and charge battery Test for normal operations Inspect your lift Clean the lift and seat Cover and store lift after use Weekly o Overview Daily Checklist...
- Page 8 TROUBLESHOOTING GUIDE Before any troubleshooting commences make sure the battery has a full charge! (1) Does the lift raise or lower (a) Check the battery connection and reconnect (b) Check hand controls, make sure they are connected properly (c) Check for any lose wires on the control compartment (d) Check the connection cable for damage (e) Check to see that the lock on the hand control or front control box is in the unlocked position.
- Page 9 The Superior series lift has a 5 year structural limited warranty. Global Lift Corp warrants to the original retail end user only products manufactured by Global Lift Corp, when properly installed in accordance to the...
- Page 10 Global Lift Corp’s decision regarding the claim. If the request made by Global Lift Corp for the product to be returned to its factory or distributor of choice for inspection and/or repair, purchaser will be liable for “Freight Prepaid”. Global Lift Corp at...
- Page 11 Warranty Procedure Warranty Claims shall be submitted to Global Lift Corporation by the distributor which originated the sale with Global Lift Corporation. All RGA (Return Goods Authorization) documents shall be requested by and issued only to the distributor which originated the sale.
- Page 12 I have read and I accept the warranty terms. Signature: ______________________________________ Date: ______________ This card must be completed and returned to Global Lift Corp within 30 days of purchase date to assure coverage. Please mail to: Global Lift Corp, 684 N Port Crescent Suite C, Bad Axe, MI 48413...
