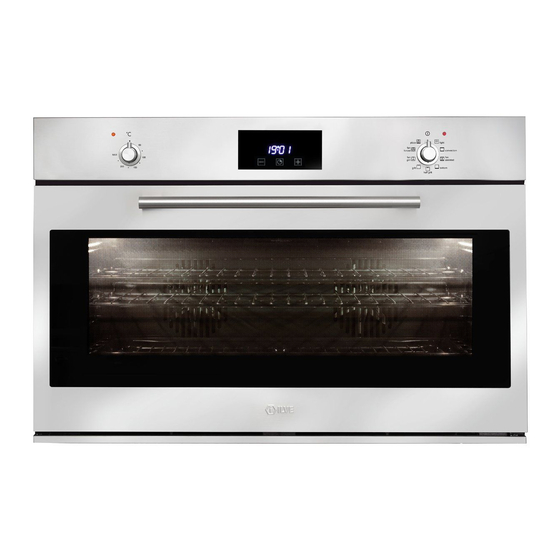

- Page 1 INSTRUCTION MANUAL FOR 90 SERIES BUILT-IN OVEN 900SKMP...
- Page 2 OPEN 24 ILVE ACCESSORIES ONLINE SHOP For a wide range of coffee machines, pods, and other ILVE accessories at the click of a button shop.ilve.com.au...
- Page 3 ILVE IMPORTANT: The oven’s data plate is accessible even with the oven fully installed. The plate is visible simply by opening the door.
-
Page 4: Table Of Contents
KEEP CHILDREN UNDER AGE 8 AWAY, UNLESS CONSTANTLY SUPERVISED. CHILDREN MAY NOT PERFORM CLEANING AND MAINTENANCE UNSUPERVISED. DO NOT USE HARSH ABRASIVE CLEANERS OR SHARP METAL SCRAPERS TO CLEAN THE OVEN DOOR GLASS SINCE THEY CAN SCRATCH THE SURFACE, WHICH MAY RESULT IN SHATTERING OF THE GLASS. CONTENTS First use Self-cleaning panel... -
Page 5: Self-Cleaning Panel
THE FIRST TIME YOU USE THE OVEN Clean the oven thoroughly with soapy water and rinse well. To remove the lateral frames from smooth walled ovens, proceed as shown in the figure.Operate the oven for about 30 minutes at maximum temperature to burn off all traces of grease which might otherwise create unpleasant smells when cooking. -
Page 6: Control Panel
CONTROL PANEL FUNCTIONS FUNCTION SYMBOL SON THE SELECTOR Oven light (stays on while oven is in use). Bottom heating element. Thermostat setting from 50°C to MAX. Top and bottom heating elements. Thermostat setting from 50°C to MAX. Top and bottom heating elements with fan. Thermostat setting from 50°C to MAX. -
Page 7: Instructions For Use
INSTRUCTIONS FOR USE CONVENTIONAL COOKING Conventional cooking use stop and bottom heat to cook a single dish.Place the food in the oven only once cooking temperature has been reached, i.e.when the heating indicator goes out.If you want to increase top or bottom temperature towards the end of the cooking cycle, set the temperature control to the right position.It is advisable to open the oven door as little as possible during cooking. -
Page 8: Grill Cooking
GRILL COOKING Use the grill to grill or brown foods.Some ovens may be equipped with an electric motor, spit and skewers for turning on the spit. Place the shelf with the food to be cooked in the 1 st or 2nd position from the top. Pre-heat the oven for 5 minutes. -
Page 11: Removing The Oven Door
REPLACING THE OVEN LIGHT IMPORTANT: The oven light must have these precise features: a) it must be able to resist high temperatures (up to 300°C) b) power supply: see V/Hz indicated on data plate. c) power 25W. d) E 14 connection. Before proceeding, disconnect the appliance from the power line to avoid the possibility of electric shock. -
Page 12: Installation Instructions Flush Fitting
Lift the two levers shown in fig. Close the door as far as the first stop (caused by the raised levers). Lift the door upwards and outwards to remove it from its mountings.To replace fit the door, fit the hinges in their mountings and lower the two levers. INSTALLATION INSTRUCTIONS Flush fitting The oven can be installed under a work top or in a cooking column. - Page 16 (including deterioration of parts and 48-50 Moore Street, Leichhardt N.S.W 2040 accessories and glass breakage); Post: (b) use for purpose for which the ILVE product Locked Bag 3000, Annandale, N.S.W 2038 was not sold or designed; P: 1300 856 411...
- Page 17 Address: State: Postcode: Email: Home Phone: Mobile: Purchase Date: (Please attach proof of purchase to validate warranty) SERIAL NUMBER MODEL NUMBER (if you cannot locate the serial number please call ILVE on 1300 85 64 11) ILVE Operating Manual 01072016...
- Page 18 Australia National Telephone Number 1300 MYILVE (694 583) New Zealand Telephone Number 0508 458 369 ilve.com.au ILVE showrooms are open daily from 9am-5pm and Saturdays 10am-4pm NSW & ACT (Head Office) VIC & SA WA & NT TAS (Crisp Ikin)
