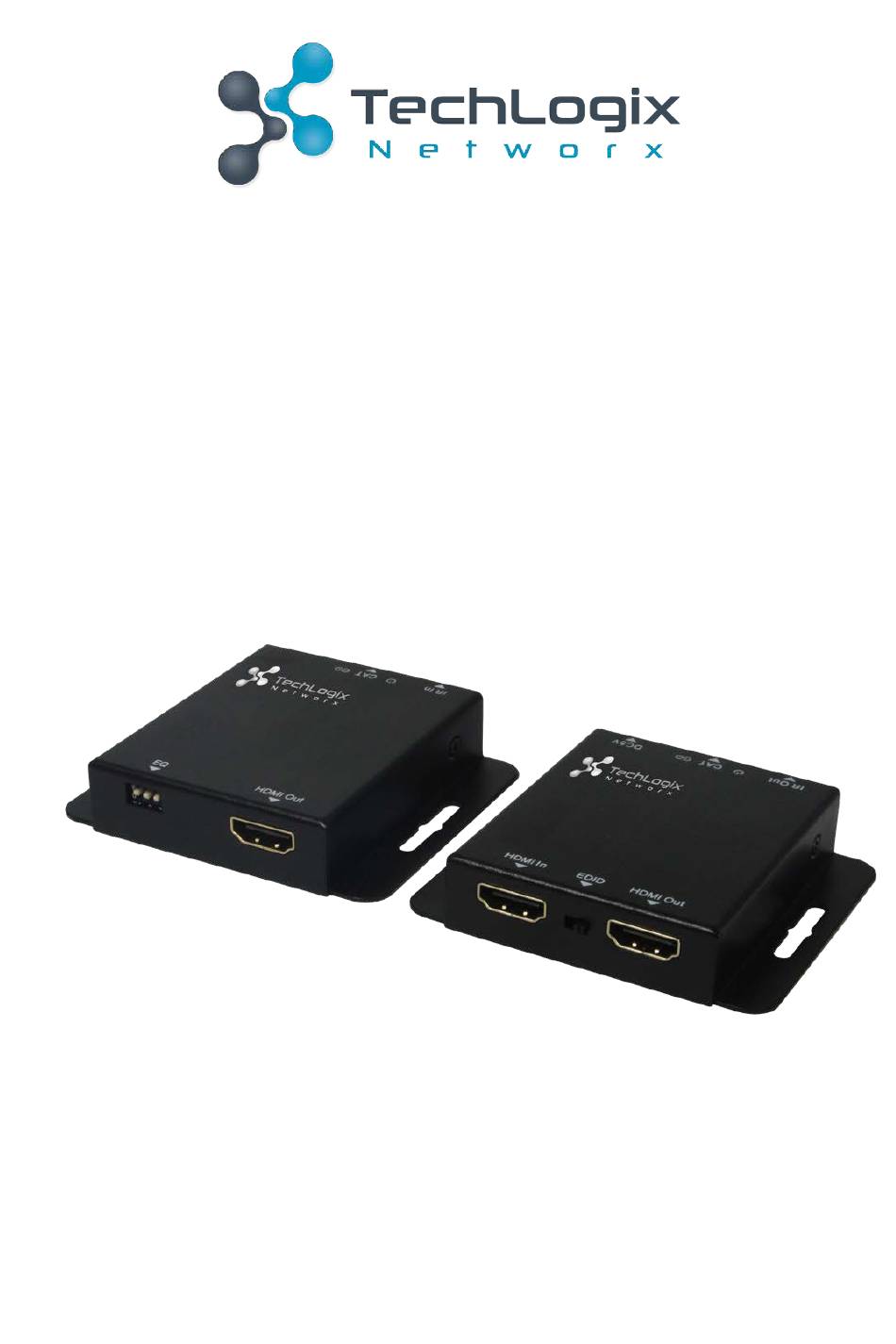

- Page 1 User Manual TL-TP50-HDIR 50m Extender for HDMI & IR All Rights Reserved Version: TL-TP50-HDIR_160929...
- Page 2 TL-TP50-HDIR User Manual Preface Read this user manual carefully before using this product. Pictures shown in this manual is for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage.
- Page 3 TL-TP50-HDIR User Manual SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. l Unpack the equipment carefully and save the original box and packing material...
-
Page 4: Table Of Contents
TL-TP50-HDIR User Manual Contents 1. Introduction ......................1 1.1 Introduction to TL-TP50-HDIR ..............1 1.2 Features ......................1 1.3 Package List ....................1 2. Panel Drawings ...................... 2 2.1 Transmitter ....................2 2.2 Receiver ......................3 3. System Connection ....................4 3.1 Usage Precautions .................. -
Page 5: Introduction
TL-TP50-HDIR User Manual 1. Introduction 1.1 Introduction to TL-TP50-HDIR The TL-TP50-HDIR is a twisted pair extender designed for extending HDMI and IR up to 50 meters (164 ft.) over shielded twisted pair cabling (shielded connectors are also required). The system transmits IR from the destination (receiver end) to the source (transmitter end), and requires power on both ends. -
Page 6: Panel Drawings
TL-TP70-HDIR User Manual 2. Panel Drawings 2.1 Transmitter HDMI Input HDMI connection point for the source device Right toggle: display EDID information copied from HDMI EDID Mode loop out (3) Switch Left toggle: display EDID information copied from RX HDMI output HDMI Output HDMI loop output for local display... -
Page 7: Receiver
TL-TP70-HDIR User Manual 2.2 Receiver Signal equalization switch for twisted pair cable length EQ Switch compensation (see chart below) HDMI Output HDMI output for the remote display IR Input IR input for sending control signals from the RX to the TX Illuminates with a solid power connection via twisted pair Power LED and/or a local 5V power supply... -
Page 8: System Connection
TL-TP70-HDIR User Manual 3. System Connection 3.1 Usage Precautions 1) System should be installed in a clean environment and has a proper temperature and humidity. 2) All of the power switches, plugs, sockets and power cords should be insulated for safety. 3) All devices should be connected before powering the extenders. -
Page 9: Specifications
TL-TP70-HDIR User Manual 4. Specifications I/O Connections (Transmitter) HDMI In 1 HDMI type A connector HDMI Out 1 HDMI type A connector TP Out 1 RJ45 connector IR out 1 3.5mm mono jack Power 1 DC 5V connector EDID 1 Two position sliding switch I/O Connections (Receiver) HDMI Out 1 HDMI type A connector... - Page 10 TL-TP70-HDIR User Manual Bandwidth 4.95 Gbps Chassis and Environmental Enclosure Painted steel Dimensions 80*68*18 mm Shipping Weight 0.55kg / 1.1lbs Operating Temperature 0~50℃ (Environment) Operating Humidity (Environment) 10%-90% Power and Regulatory Maximum Power Consumption 1.5W per end Power Supply DC 5V 1A ESD Protection 15kV Regulatory...
-
Page 11: Ir Pinout
TL-TP70-HDIR User Manual 4.1 IR Pinout www.tlnetworx.com... -
Page 12: Panel Drawing
TL-TP70-HDIR User Manual 5. Panel Drawing www.tlnetworx.com... -
Page 13: Troubleshooting & Maintenance
Cat5e/Cat6 can be used for testing to ensure that the devices are all compatible and working properly. l Adjust the EQ switch to compensate for cable distance. If your problem persists after following the above troubleshooting steps, seek further help from an authorized reseller or our TechLogix technical support. www.tlnetworx.com... -
Page 14: After-Sales Service
TL-TP70-HDIR User Manual 7. After-sales Service If some problems occur when using the device, please check the troubleshooting section referenced in this user manual. 1) Product Limited Warranty: We warrant that our products will be free from defects in materials and workmanship for three years. Please see warranty page posted on www.tlnetworx.com for more info.
