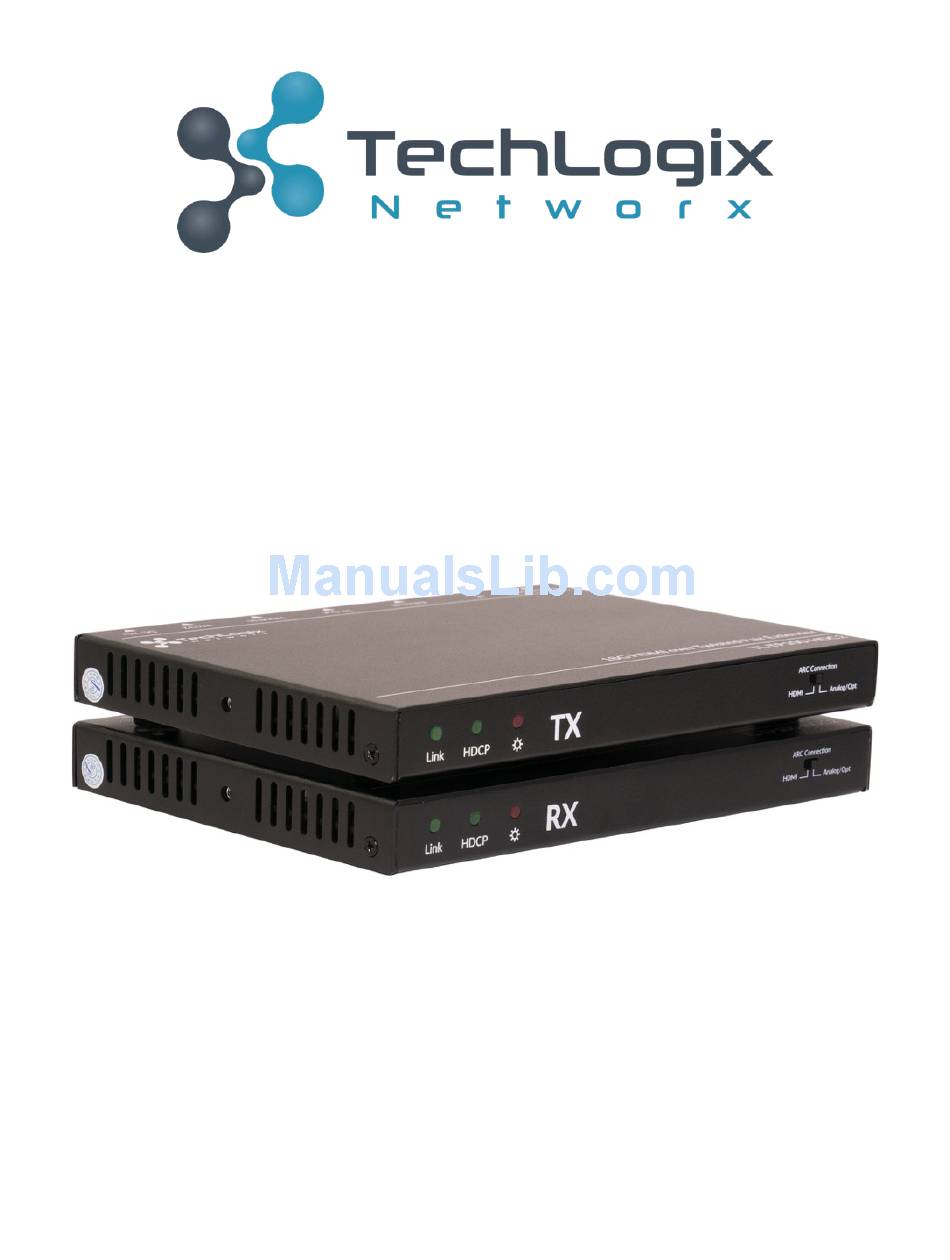

Page 1: User Manual
User Manual TL-TP100-HDC2 100m 4K/60 HDMI & Control Twisted Pair Extender Set All Rights Reserved Version: TL-TP100-HDC2 _180125 www.tlnetworx.com | +1-608-960-7242... -
Page 2: Fcc Statement
TL-TP100-HDC2 User Manual Preface Read this user manual carefully before using this product. Pictures shown in this manual are for reference only; the actual product may vary. This manual is only for operation instruction only and not for any maintenance or repair. -
Page 3: Table Of Contents
TL-TP100-HDC2 User Manual Table of Contents Introduction ............................4 Features at a Glance ........................4 Package Contents.......................... 4 Panel Descriptions..........................5 Transmitter ............................. 5 Receiver ............................7 System Connection ........................... 9 Usage Precautions ......................... 9 Connection Procedure ......................... 9 Panel Drawings ..........................10 Transmitter ........................... -
Page 4: Introduction
The transmitter can output the audio on HDMI, analog, or digital optical outputs. Additional built-in features such as flexible power with Port-Saver™ protection, IR and RS232 signal distribution, and Ethernet pass-through make the TL-TP100-HDC2 extremely powerful and extremely flexible. Features at a Glance •... -
Page 5: Panel Descriptions
TL-TP100-HDC2 User Manual Panel Descriptions Transmitter Name Description Link LED HDBT link status indicator • OFF: no link • GREEN: link successful • Blinking GREEN: link abnormal HDCP LED HDCP compliant indicator • OFF: no HDMI traffic (no picture) • GREEN: traffic with HDCP •... - Page 6 TL-TP100-HDC2 User Manual IR Out Connects to a 5V IR emitter (with carrier); signals tranmitted from the remote receiver Ethernet 100m Ethernet interface. If a strong connection is present, the yellow LED indicators on the corresponding ports will blink and the green LED indicators will remain solid.
-
Page 7: Receiver
TL-TP100-HDC2 User Manual Receiver Name Description Link LED HDBT link status indicator • OFF: no link • GREEN: link successful • Blinking GREEN: link abnormal HDCP LED HDCP compliant indicator • OFF: no HDMI traffic (no picture) • GREEN: traffic with HDCP •... - Page 8 TL-TP100-HDC2 User Manual corresponding ports will blink and the green LED indicators will remain solid. Twisted Pair Input Connect to the TP Out socket on the transmitter via a twisted pair cable. Supports bi-directional PoC. Port-Saver™ protection prevents damage to Ethernet devices that may be connected during device installation.
-
Page 9: System Connection
TL-TP100-HDC2 User Manual System Connection Usage Precautions System should be installed in a clean environment that has a proper temperature and humidity. All of the power switches, plugs, sockets and power cords should be installed properly. All devices should be connected before powering on the devices. -
Page 10: Panel Drawings
TL-TP100-HDC2 User Manual Panel Drawings Transmitter www.tlnetworx.com | +1-608-960-7242... -
Page 11: Receiver
TL-TP100-HDC2 User Manual Receiver www.tlnetworx.com | +1-608-960-7242... -
Page 12: Specifications
TL-TP100-HDC2 User Manual Specifications I/O Connections (Transmitter) HDMI Input HDMI Type A Receptacle (supports ARC) Audio Output 3.5mm TRS / Mini-TOSLINK Combo (Stereo analog / Optical Digital) Twisted Pair 8P8C port (Shielded RJ45) with Port-Saver™ protection IR Input 3.5mm TRS Jack IR Output 3.5mm TS Jack... - Page 13 TL-TP100-HDC2 User Manual Compression Signal Characteristics Compression ratio Up to 2:1 (adaptive for signals above 10.2gbps) Compression type Color Space Conversion (VLC) Chassis and Environmental Enclosure Painted aluminum Dimensions 152mm x 109mm x 16mm Shipping Weight 0.71Kg (1.55 lbs) (Tx+Rx) Operating Temperature -10°...
-
Page 14: Troubleshooting And Maintenance
TL-TP100-HDC2 User Manual Troubleshooting and Maintenance No image on display • Ensure that the display device has been set to the correct input. • Ensure that the HDMI cables used for both the source/transmitter and the receiver/display are properly connected and are working. Test the HDMI cables directly from a source to display and ensure their operation. -
Page 15: After-Sales Service
Use of supplies or parts not meeting the specifications No certificate or invoice as the proof of warranty Damage caused by force majeure Non-authorized service Technical Support: When contacting TechLogix support, please have the following information available: Product part number Installation and sale date Detailed failure information www.tlnetworx.com | +1-608-960-7242...
