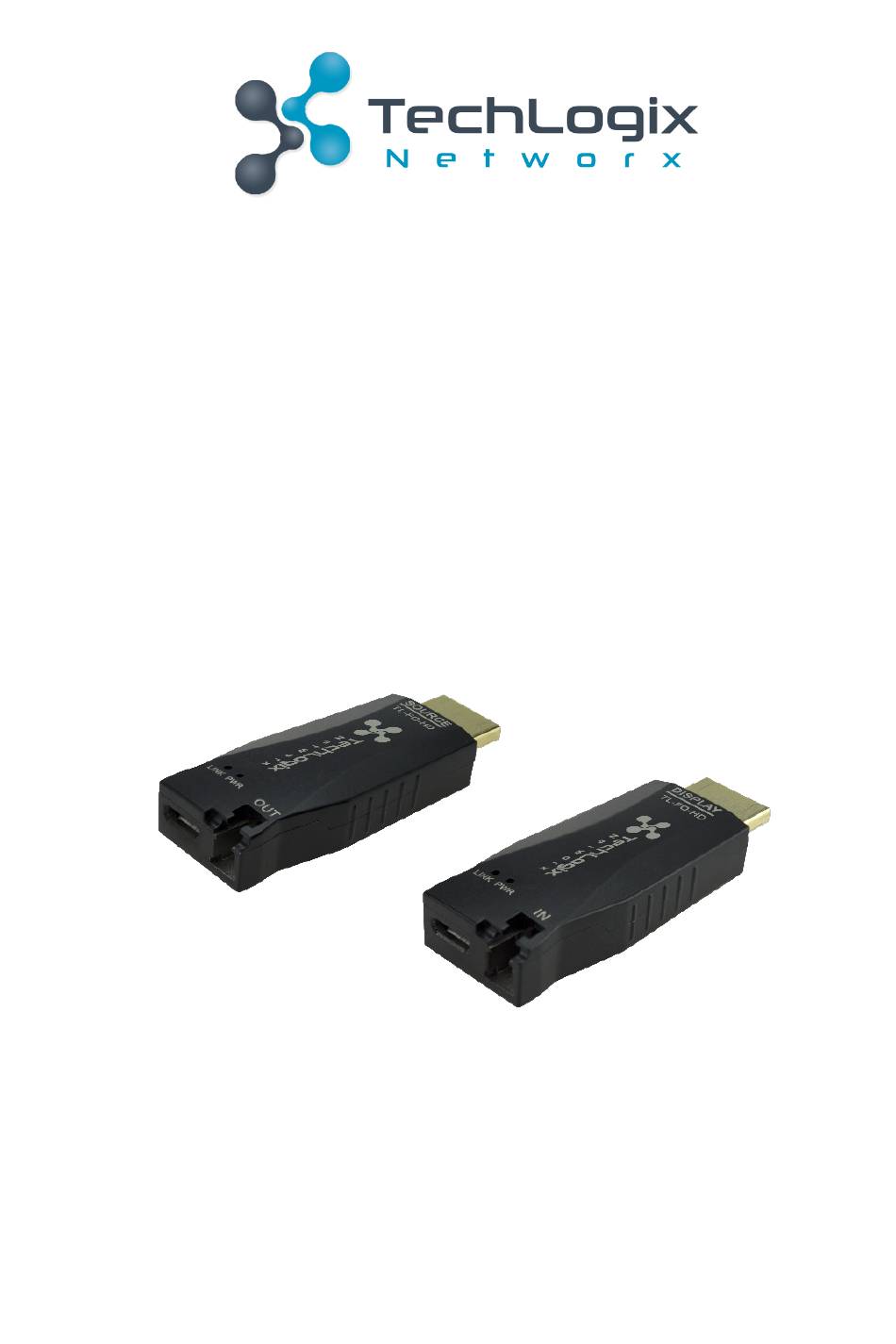

- Page 1 User Manual TL-FO-HD 4K Optical Fiber Extender All Rights Reserved Version: TL-FO-HD_160628...
- Page 2 TL-FO-HD User Manual Preface Read this user manual carefully before using this product. Pictures shown in this manual is for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage. Trademarks Product model and its logo are trademarks. Any other trademarks mentioned in this manual are acknowledged as the properties of the trademark owner. No part of this publication may be copied or reproduced without our prior written consent. FCC Statement This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. It has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial installation. Operation of this equipment in a residential area is likely to cause interference, in which case the user at their own expense will be required to take whatever measures may be necessary to correct the interference. Any changes or modifications not expressly approved by the manufacture would void the user’s authority to operate the equipment. www.tlnetworx.com...
- Page 3 TL-FO-HD User Manual SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. l Unpack the equipment carefully and save the original box and packing material for possible future shipment l Follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. l Do not dismantle the housing or modify the module. It may result in electrical shock or burn. l Using supplies or parts not meeting the products’ specifications may cause damage, deterioration or malfunction. l Refer all servicing to qualified service personnel. l To prevent fire or shock hazard, do not expose the unit to rain, moisture or install this product near water. l Do not put any heavy items on the extension cable in case of extrusion. l Do not remove the housing of the device as opening or removing housing may expose you to dangerous voltage or other hazards. l Install the device in a place with fine ventilation to avoid damage caused by overheat. l Keep the module away from liquids. l Spillage into the housing may result in fire, electrical shock, or equipment damage. If an object or liquid falls or spills on to the housing, unplug the module immediately. l Do not twist or pull by force ends of the optical cable. It can cause malfunction. l Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the device before cleaning. l Unplug the power cord when left unused for a long period of time.
- Page 4 TL-FO-HD User Manual Introduction TL-FO-HD is a mini optical fiber extender for 4K resolution. It contains a SOURCE module and a DISPLAY module. Compatible with multi-mode and single-mode fiber, it extends HDMI signals up to 400m/300m via single-mode cable/ multi-mode cable. With its HDMI1.4& HDCP compliance design, the TL-FO-HD supports high definition (up to 4096x2160@30Hz, 1080p 3D) signal. Package List 1* TL-FO-HD (SOURCE and DISPLAY are included) 2* Power Adapter 1*Optical Fiber Cable (single-mode) 1*User Manual Notes：Check whether all the items listed above are included in your package. If not, contact your dealer to make up. Appearances SOURCE Module: ① PWR LED: Illuminated when powered ② LINK LED: Illuminated when SOURCE & DISPLAY module are connected. ③ ④ USB: Insert a DC 5V 1A power adapter here ④ OUT: Connect to the IN of the DISPLAY module. www.tlnetworx.com...

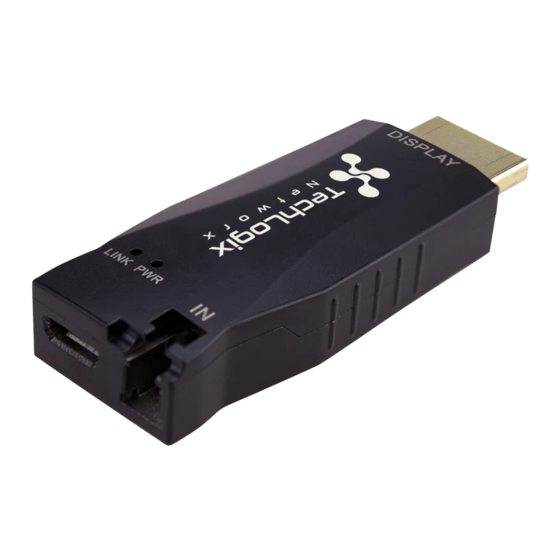

- Page 5 TL-FO-HD User Manual DISPLAY Module: ① PWR LED: Illuminated when powered ② LINK LED: Illuminated when SOURCE & DISPLAY moduleare connected. ③ USB: Insert a DC 5V 1A power adapter here ④ IN: Connected to the OUT of the SOURCE module Connection: The figure below illustrates a typical connection that can be utilized with TL-FO-HD: Step1. Insert the SOURCE module into the HDMI port of a HDMI source device (e.g. a PC). Step2. Connect the OUT port of the SOURCE module to the IN port of DISPLAY module with an optical fiber cable. Step3. Insert the DISPLAY into the HDMI port of a HDMI display device (e.g. a monitor). Step4. Plug DC 5V power adapters to the USB ports of both the SOURCE and the DISPLAY module. Note: Connect the SOURCE/DISPLAY module with HDMI source/ sink directly or through a HDMI cable. www.tlnetworx.com...
- Page 6 TL-FO-HD User Manual Specification Model SOURCE module DISPLAY module Spec Input Input Signal 1 HDMI 1 Optical Fiber Input Connector 19-pin Type A male HDMI LC connector Signal HDMI1.4 Optical Fiber Output Output 1 Optical Fiber 1 HDMI Output Connector LC connector 19-pin Type A male HDMI Signal Optical Fiber HDMI1.4 General Resolution 4k (max) Audio Format PCM, Dolby Digital, DTS, DTS-HD HDMI Standard Support HDMI1.4 and HDCP1.4 Transmission Distance ≤400m via single-mode fiber ≤300m via multi-mode fiber Temperature 0 ~ 50℃ Reference Humidity 10% ~ 90% Power Supply Input: AC 100~240V, 50/60Hz; Output: DC 5V 1A...
- Page 7 TL-FO-HD User Manual Troubleshooting & Maintenance Problems Causes Solutions Color loss or vague/ double Poor quality of the HDMI Change to a high quality image in HDMI display cable (if used) cable. Not powered Power up the unit Power led is off, no video Make sure power adapter is Poor contact of USB port in good contact Source/ Display is off Turn on the source/ display Check the HDMI ports one No output on the display Poor contact of HDMI ports by one to make sure they’re in good contact. If your problem persists after following the above troubleshooting steps, seek further help from authorized dealer or our technical support. www.tlnetworx.com...
- Page 8 TL-FO-HD User Manual After-sales Service If there appear some problems when running the device, please check and deal with the problems referring to this user manual. 1) Product Limited Warranty: We warrant that our products will be free from defects in materials and workmanship for three years. Please see warranty page posted on www.tlnetworx.com for more info. Proof of purchase in the form of a bill of sale or receipted invoice must be presented to obtain warranty service. 2) What the warranty does not cover (servicing available for a fee): l Warranty expiration. l Factory applied serial number has been altered or removed from the product. l Damage, deterioration or malfunction caused by: l Normal wear and tear l Use of supplies or parts not meeting our specifications l No certificate or invoice as the proof of warranty. l The product model showed on the warranty card does not match with the model of the product for repairing or had been altered. l Damage caused by force majeure. l Servicing not authorized l Any other causes which does not relate to a product defect l Delivery, installation or labor charges for installation or setup of the product 3) Technical Support: Email to our after-sales department or make a call, please inform us the following information about your cases.
