- Page 1 K782 Fitting Kit Fitting Instructions for Basic Carrier Revision No: 2B...

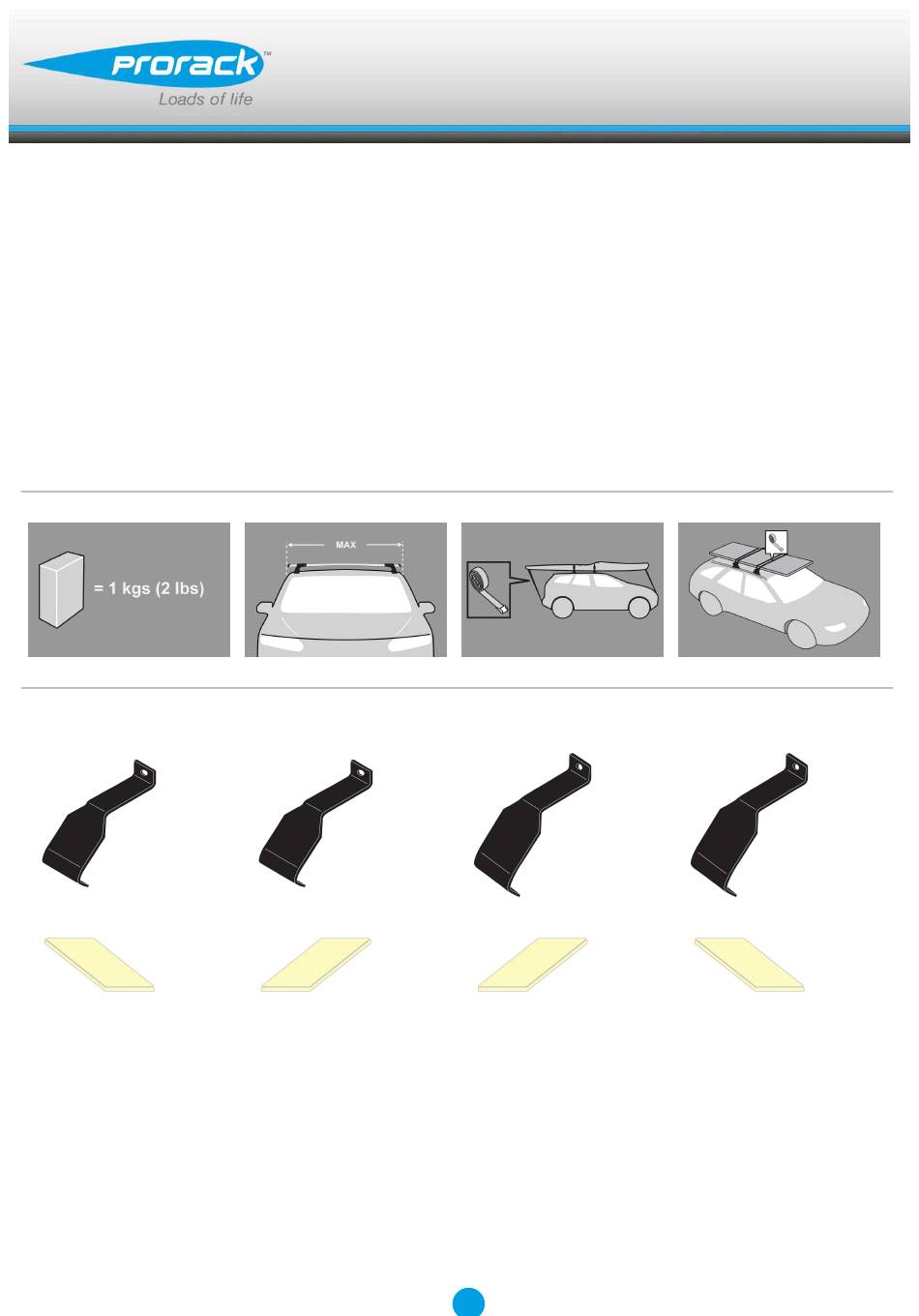

- Page 2 Fitting Kit K782...
- Page 3 Fitting Kit K782 MAX kgs (lbs) Ford Ecosport (Mexico), 5dr SUV 14-+ 45 kgs (99 lbs) 45 kgs (99 lbs) Ecosport, 5dr SUV 14-+ 45 kgs (99 lbs) 45 kgs (99 lbs) Ecosport, 5dr SUV 14-+ 45 kgs (99 lbs)
- Page 4 Fitting Kit K782 Ecosport (Mexico), 5dr SUV 14-+ (US) -200mm 500mm 815mm 805mm -7 -7/8ths" 19 11/16ths" 32 1/16ths" 31 11/16ths" Ecosport, 5dr SUV 14-+ (AU) -200mm 500mm 815mm 805mm -7 -7/8ths" 19 11/16ths" 32 1/16ths" 31 11/16ths" Ecosport, 5dr SUV 14-+ (NZ)
-
Page 5: First Time Installation
Fitting Kit K782 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 6 Fitting Kit K782 Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment method. Ensure each end of the crossbar is...
- Page 7 Fitting Kit K782 Remove locking screw. Apply protective strip as shown. Trim if required. A = Clear B = Grey It is important to put the clamps in the correct position on the vehicle. Letters refer to the part numbers stamped on clamps.

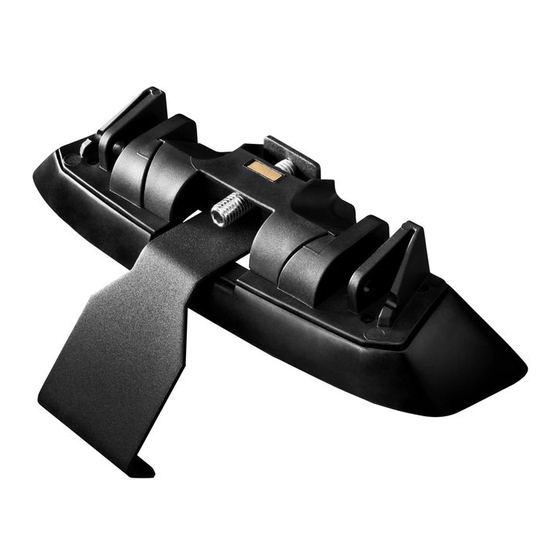

- Page 8 Fitting Kit K782 Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right"). Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw.
- Page 9 Fitting Kit K782 It is important to put the pads in the correct position on the vehicle. Letters refer to the pad part numbers and position. Pad Part Number: A = 244A B = 295A C = 296A Place rubber pads (supplied with fitting kit) on the vehicle roof.
- Page 10 Fitting Kit K782 Fitment Clamps directly to edge of roof under the doors Please check the front of this manual for information relating specifically to your vehicle. Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated).
- Page 11 Fitting Kit K782 Tighten locking screw on both legs evenly, 3 Nm (2.2 ft lb). Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers...
- Page 12 Fitting Kit K782 CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
-
Page 13: Maintenance
Fitting Kit K782 Maintenance Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order. - Page 14 Fitting Kit K782 Check and replace worn out or defective parts. Keep the product clean and maintained. Never drive into a car wash with the roof rack system fitted. Lubricate locks and adjusting screws at regular intervals. Remove the products from the vehicle when not in use.
-
Page 15: Warranty And Disclaimer
Make a claim as soon as practicable by contacting the Prorack dealer from whom you purchased the product, who will give you instructions on how to proceed. If you are unable to contact the Prorack dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: warranty@yakima.co.nz or warranty@yakima.com.au... - Page 16 Yakima or the Prorack dealer will be borne by you. Following receipt of the product and purchase invoice or receipt, Yakima or the Prorack dealer must inspect the product to determine whether the claim falls within the warranty. If: 4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the...
