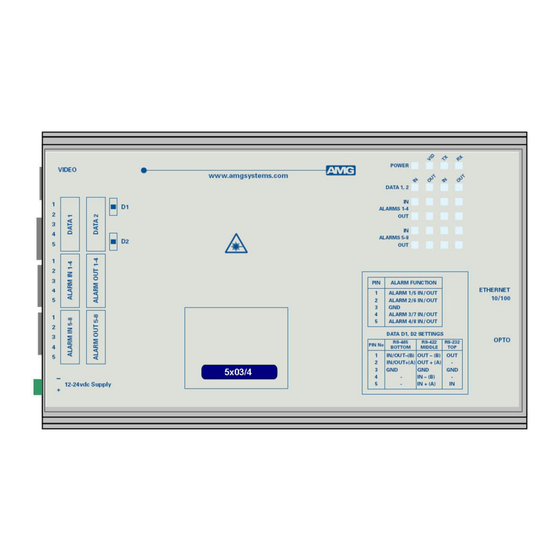

Receive Unit with two Bi-directional Data Channels and
eight Bi-directional Alarms plus Ethernet for a Singlemode
The AMG5904 is a standalone receive unit designed to transmit and receive 2 data signals plus 8 bi-
directional alarms and also provides full duplex 100Base-T Ethernet connectivity over one Singlemode
optical fibre.
The AMG5904 is designed to be powered using an AMG2001 standalone power supply.
The AMG5904 is designed to operate with an AMG5903 or AMG5903R transmit unit in a point to point
configuration. The R suffix in the partno. indicates a rackmount configuration.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Fibre Link
Page 1 of 8
AMG5904
Instruction Manual
AMG5904 Instruction Sheet D22107-
00.doc
Advertisement
Table of Contents
Related Manuals for AMG Systems AMG5904
Summary of Contents for AMG Systems AMG5904
- Page 1 Bi-directional Alarms plus Ethernet for a Singlemode Fibre Link The AMG5904 is a standalone receive unit designed to transmit and receive 2 data signals plus 8 bi- directional alarms and also provides full duplex 100Base-T Ethernet connectivity over one Singlemode optical fibre.

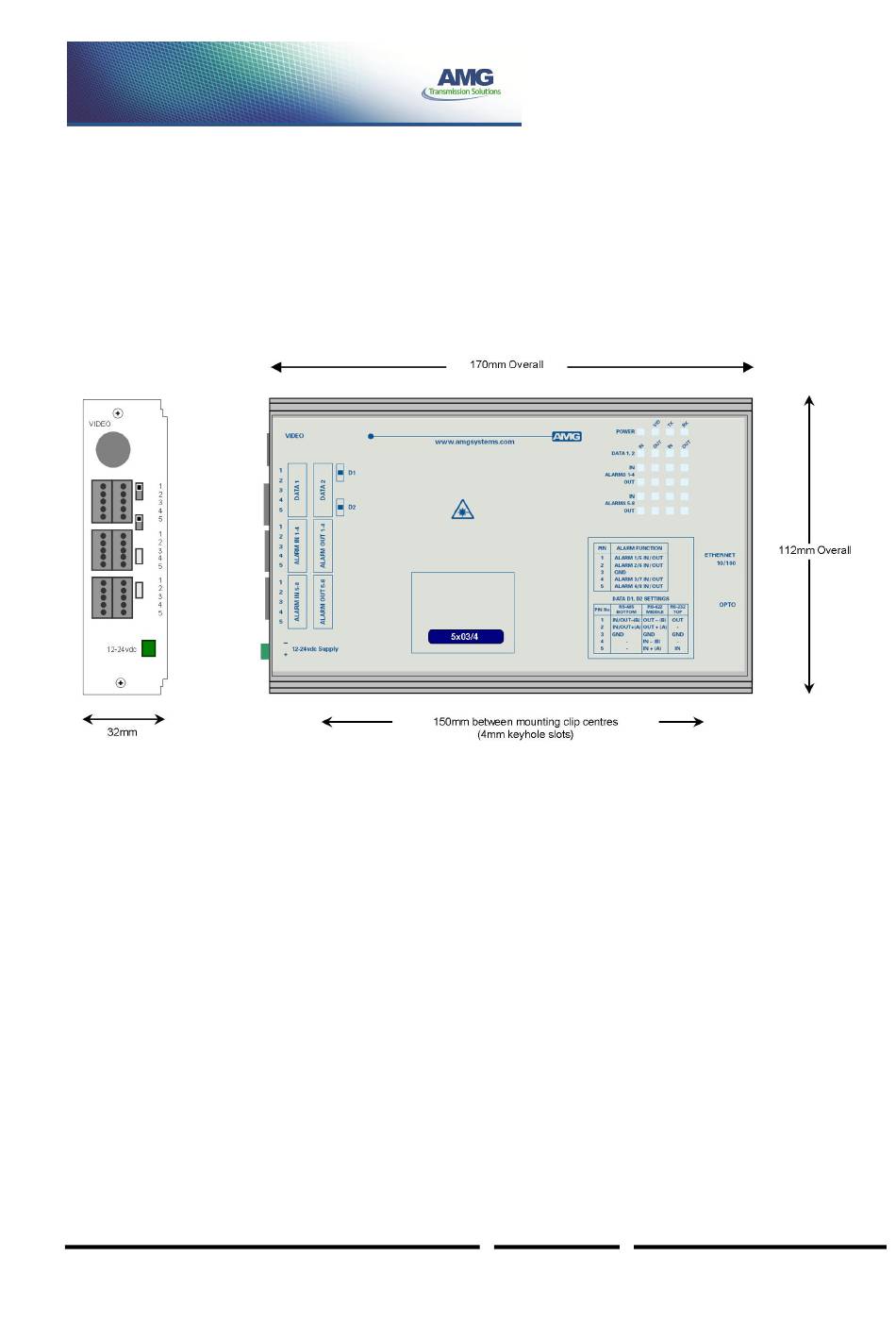

- Page 2 Dimensions ............................8 Mounting Details ..........................8 Safety Maintenance and Repair AMG Systems Ltd. reserves the right to make changes to this Page 2 of 8 AMG5904 Instruction Sheet D22107- document without notice. The information herein is believed to 00.doc...
- Page 3 Ethernet connectivity is also provided between the two units. Optical Connection The AMG5904 connections are illustrated in the following example which shows an AMG5903 single channel transmit unit together with a AMG5904 configured as a point to point system. Ethernet Operation The Ethernet interface supports 100Mbit/s full duplex operation only.
- Page 4 Ethernet Data Connector ....RJ45 Interface ..........Auto-negotiation up to 100BASE-TX full duplex Ethernet Data Rate ......Maximum 100Mb/s total Ethernet traffic on fibre AMG Systems Ltd. reserves the right to make changes to this Page 4 of 8 AMG5904 Instruction Sheet D22107- document without notice.
- Page 5 Link integrity is good, Idle state GBlink - Data transfer Link not present AMG Systems Ltd. reserves the right to make changes to this Page 5 of 8 AMG5904 Instruction Sheet D22107- document without notice. The information herein is believed to 00.doc...
- Page 6 Data and Alarm Channel Configuration The AMG5904 receive unit sends and receives data to/from an AMG5903 or rackmount equivalent AMG5903R transmit unit. The 2 physical data interfaces RS-485, RS-422 or RS-232 are individually selectable by the user with the slide switch mounted from the rear panel.
- Page 7 Each ALARM OUT output can receive an on/off signal from an AMG5903 and is typically used to convey contact closure status. Each alarm output is NPN open collector, maximum load 50mA / 24Vdc. AMG Systems Ltd. reserves the right to make changes to this Page 7 of 8 AMG5904 Instruction Sheet D22107- document without notice.
- Page 8 There are no user serviceable parts within AMG products. See unit data sheet for full specification. In case of problem or failure, please call your local support centre or contact: AMG Systems Ltd. at 3 The Omega Centre, Stratton Business Park, Biggleswade, Beds., SG18 8QB, UK.
