Single Channel Video Receive Unit with four Bi-directional
Data Channels and four Bi-directional Alarms plus Ethernet
The AMG5918 is a standalone one channel video receive unit designed to receive 1 video signal and
transmit and receive 4 data signals plus 4 bi-directional alarms and also provides full duplex 100Base-
T Ethernet connectivity over one Singlemode optical fibre.
The AMG5918 is designed to be powered using an AMG2001 standalone power supply.
The AMG5918 is designed to operate with an AMG5917 or AMG5917R video transmit unit in a point
to point configuration. The R suffix in the partno. indicates a rackmount configuration.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
for a Singlemode Fibre Link
AMG5918
Instruction Manual
Page 1 of 8
AMG5918 Instruction Sheet D22155-
00.doc
Advertisement
Table of Contents
Related Manuals for AMG Systems AMG5918
Summary of Contents for AMG Systems AMG5918
- Page 1 Data Channels and four Bi-directional Alarms plus Ethernet for a Singlemode Fibre Link The AMG5918 is a standalone one channel video receive unit designed to receive 1 video signal and transmit and receive 4 data signals plus 4 bi-directional alarms and also provides full duplex 100Base- T Ethernet connectivity over one Singlemode optical fibre.

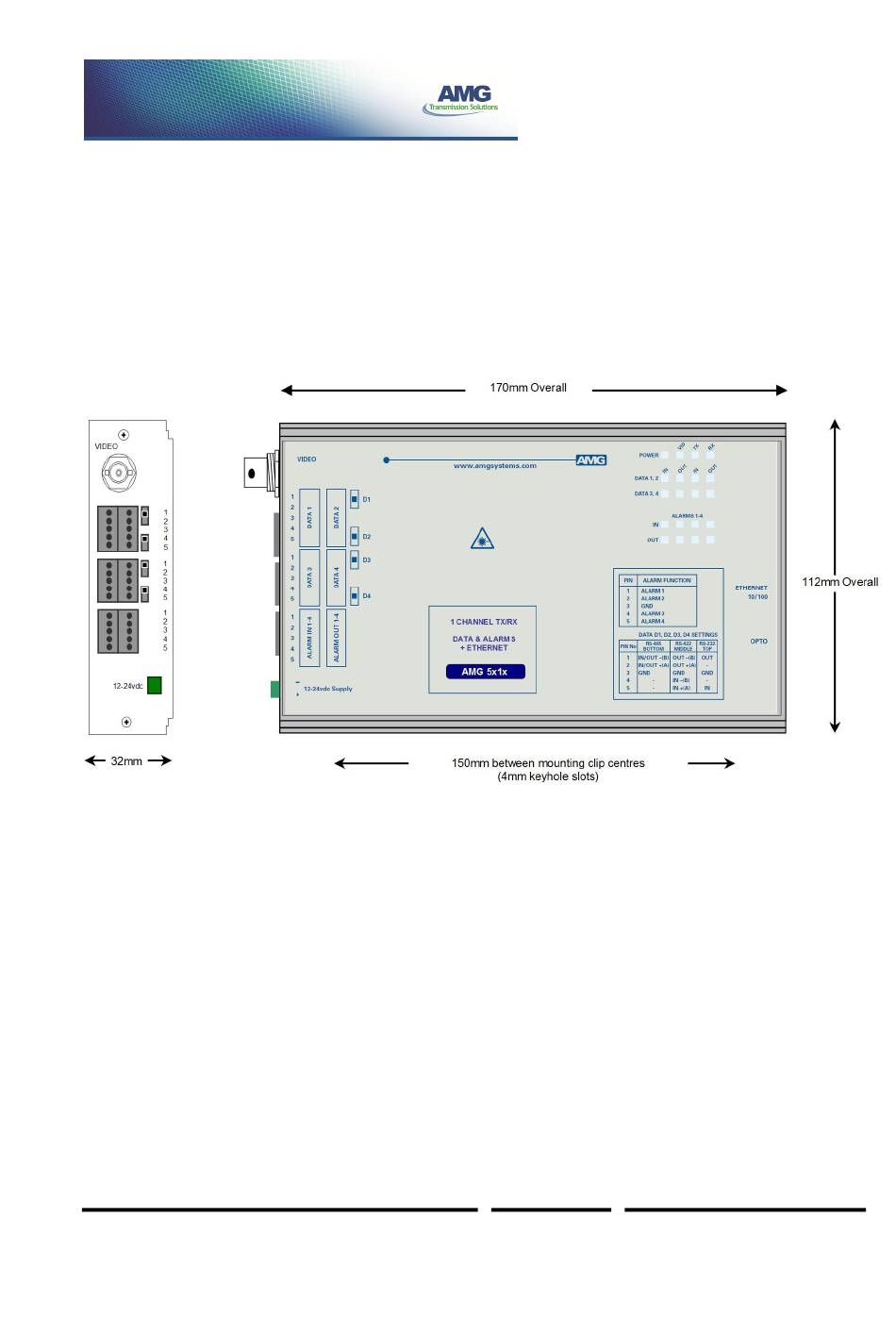

- Page 2 Dimensions ............................8 Mounting Details ..........................8 Safety Maintenance and Repair AMG Systems Ltd. reserves the right to make changes to this Page 2 of 8 AMG5918 Instruction Sheet D22155- document without notice. The information herein is believed to 00.doc...
- Page 3 Ethernet connectivity is also provided between the two units. Optical Connection The AMG5918 connections are illustrated in the following example which shows an AMG5917 single channel transmit unit together with a AMG5918 configured as a point to point system. Ethernet Operation The Ethernet interface supports 100Mbit/s full duplex operation only.
- Page 4 Ethernet Data Connector ....RJ45 Interface ..........Auto-negotiation up to 100BASE-TX full duplex Ethernet Data Rate ......Maximum 100Mb/s total Ethernet traffic on fibre AMG Systems Ltd. reserves the right to make changes to this Page 4 of 8 AMG5918 Instruction Sheet D22155- document without notice.
- Page 5 Link integrity is good, Idle state GBlink - Data transfer Link not present AMG Systems Ltd. reserves the right to make changes to this Page 5 of 8 AMG5918 Instruction Sheet D22155- document without notice. The information herein is believed to 00.doc...
- Page 6 Data and Alarm Channel Configuration The AMG5918 receive unit sends and receives data to/from an AMG5917 or rackmount equivalent AMG5917R transmit unit. The 4 physical data interfaces RS-485, RS-422 or RS-232 are individually selectable by the user with the slide switch mounted from the rear panel.
- Page 7 RS-232 (no termination), RS-422 (120Ω) or RS-485 (120Ω). Alarm Channel Configuration The AMG5918 provides 4 bi-directional contact closure inputs / alarm outputs. Each ALARM IN input is via an internal 10kΩ series resistor with a 47kΩ pull-up resistor to the internal +3V3 supply.
- Page 8 There are no user serviceable parts within AMG products. See unit data sheet for full specification. In case of problem or failure, please call your local support centre or contact: AMG Systems Ltd. at 3 The Omega Centre, Stratton Business Park, Biggleswade, Beds., SG18 8QB, UK.
