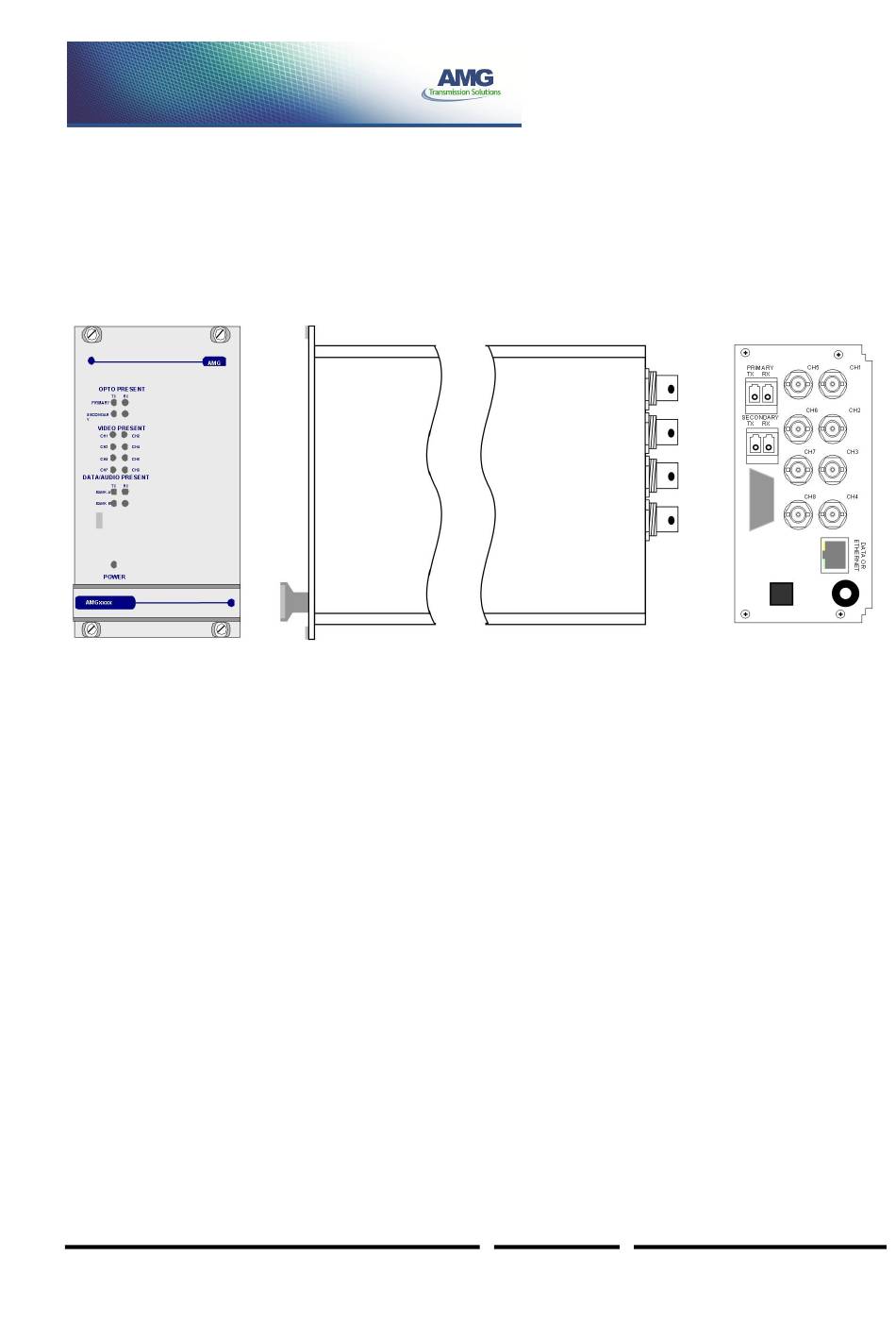

8 Channel Video Receive Unit with Ethernet for a Dual
The AMG3782EG-DR is a rackmount eight channel video receive unit designed to receive 8 video
signals from a dual singlemode optical fibre ring with Dual Redundant operation. It also provides full
duplex 100BaseT Ethernet connectivity around the ring.
The AMG3782EG-DR is designed to be powered using an AMG2003 standalone power supply.
The AMG3782EG-DR is designed to operate with AMG3741E-DR or rackmount equivalent
AMG3741EG-DR four channel video and Ethernet insert units. It may also be used with other
combinations of single, dual and four channel video and Ethernet insert units.
An AMG3782EG-DR receive unit will 'drop off' up to eight video channels which are being transmitted
around the fibre ring from up to eight single channel insert units, or from an equivalent combination of
multi-channel insert units.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Redundant Fibre Ring
AMG3782EG-DR
Instruction Manual
Page 1 of 8
AMG3782EG-DR Instruction Sheet
D16844-02.doc
Advertisement
Table of Contents
Related Manuals for AMG Systems AMG3782EG-DR
Summary of Contents for AMG Systems AMG3782EG-DR
- Page 1 Ethernet insert units. An AMG3782EG-DR receive unit will 'drop off' up to eight video channels which are being transmitted around the fibre ring from up to eight single channel insert units, or from an equivalent combination of multi-channel insert units.
-
Page 2: Table Of Contents
Removal / replacement from / to the Case..................8 Safety Maintenance and Repair AMG Systems Ltd. reserves the right to make changes to this Page 2 of 8 AMG3782EG-DR Instruction Sheet document without notice. The information herein is believed to D16844-02.doc... -
Page 3: Introduction
1 selects video channel 1 and setting switch to position 8 or 9 selects channel 8. Optical Connection The AMG3782E-DR or rackmount AMG3782EG-DR is designed to be connected in a ring or point to point system. In a ring system, single, dual and four channel insert units respectively can be combined to make up an 8 channel video transmission system as illustrated below. - Page 4 2 and 3 as there is now no physical connection between the transceivers and the receiver. However operation of cameras 4,5,6,7 and 8 remains fully functional. AMG Systems Ltd. reserves the right to make changes to this Page 4 of 8 AMG3782EG-DR Instruction Sheet document without notice.
-
Page 5: Connections
Ethernet Data Connector ....RJ45 Interface..........Auto-negotiation up to 100BASE-TX full duplex Ethernet Data Rate......Maximum 100Mb/s total Ethernet traffic on fibre AMG Systems Ltd. reserves the right to make changes to this Page 5 of 8 AMG3782EG-DR Instruction Sheet document without notice. -

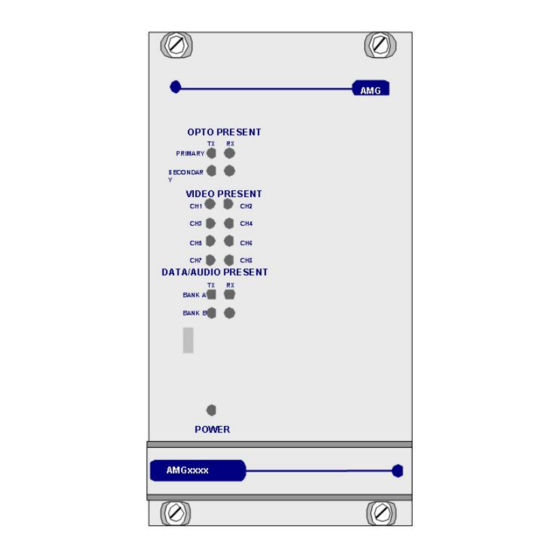

Page 6: Front Panel Indicators
RJ45 Ethernet port operating full duplex RJ45 Ethernet port operating half duplex Note: the RJ45 Ethernet auto-negotiates up to 100Mbit/s full duplex. AMG Systems Ltd. reserves the right to make changes to this Page 6 of 8 AMG3782EG-DR Instruction Sheet document without notice. -
Page 7: Ethernet Operation
The 100BaseT port does not implement MDI/MDIX; it should be connected with a straight though cable to an external switch port and with a cross over cable when connected directly to a PC or DTE. AMG Systems Ltd. reserves the right to make changes to this Page 7 of 8 AMG3782EG-DR Instruction Sheet document without notice. -
Page 8: Physical Information
There are no user serviceable parts within AMG products. See unit data sheet for full specification. In case of problem or failure, please call your local support centre or contact: AMG Systems Ltd. at 3 The Omega Centre, Stratton Business Park, Biggleswade, Beds., SG18 8QB, UK.
