Transmit Unit with two Bi-directional Data Channels and
eight Bi-directional Alarms plus Ethernet for a Multimode
The AMG5803 is a standalone data transmit unit designed to transmit and receive 2 data signals plus
8 bi-directional alarms and also provides full duplex 100Base-T Ethernet connectivity over one
Multimode optical fibre.
The AMG5803 is designed to be powered using an AMG2001 standalone power supply.
The AMG5803 is designed to operate with an AMG5804 or AMG5804R receive unit in a point to point
configuration. The R suffix in the partno. indicates a rackmount configuration.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Fibre Link
Page 1 of 8
AMG5803
Instruction Manual
AMG5803 Instruction Sheet D22090-
01.doc
Advertisement
Table of Contents
Related Manuals for AMG Systems AMG5803
Summary of Contents for AMG Systems AMG5803
- Page 1 The AMG5803 is designed to be powered using an AMG2001 standalone power supply. The AMG5803 is designed to operate with an AMG5804 or AMG5804R receive unit in a point to point configuration. The R suffix in the partno. indicates a rackmount configuration.

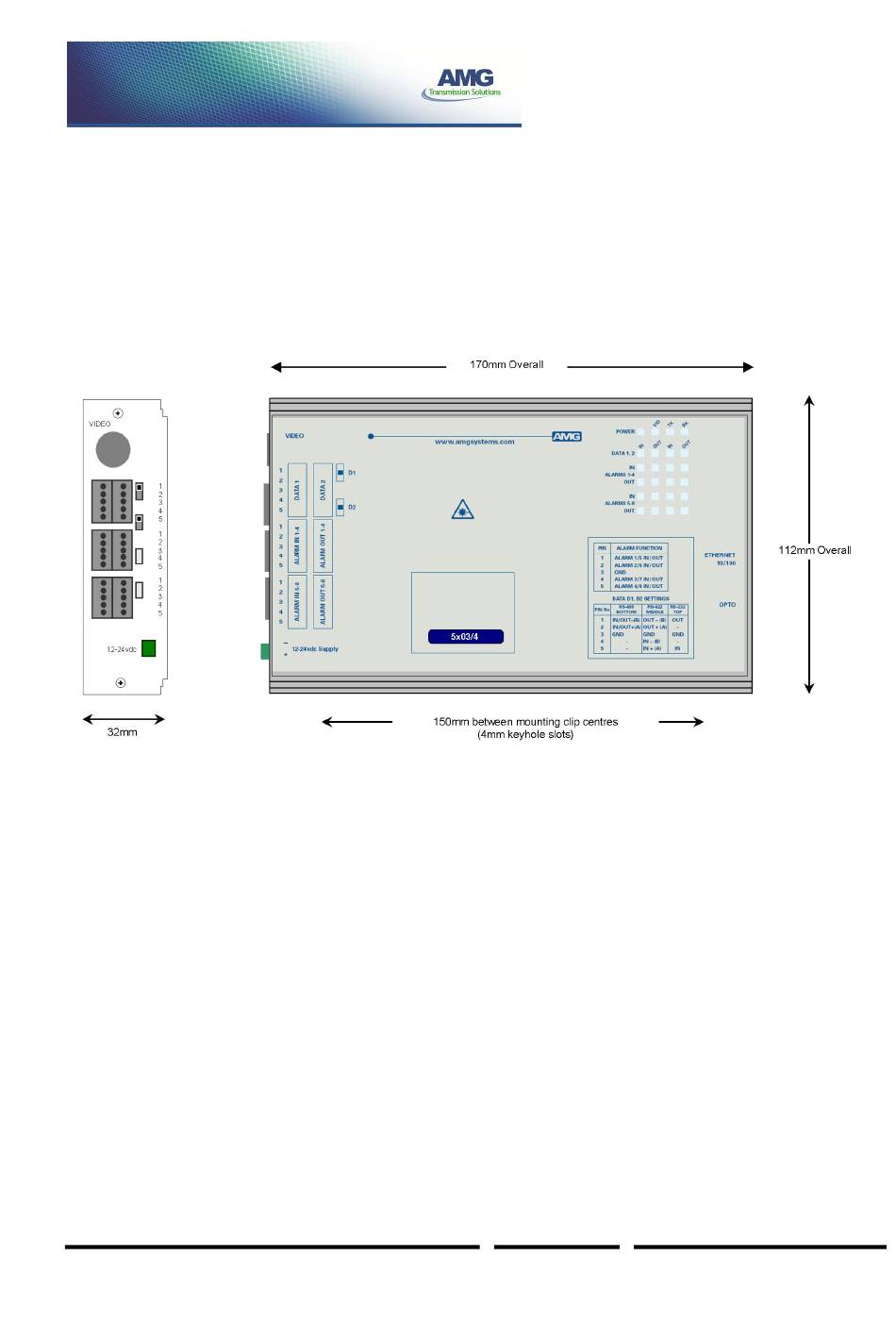

- Page 2 Dimensions ............................8 Mounting Details ..........................8 Safety Maintenance and Repair AMG Systems Ltd. reserves the right to make changes to this Page 2 of 8 AMG5803 Instruction Sheet D22090- document without notice. The information herein is believed to 01.doc...
- Page 3 Ethernet connectivity is also provided between the two units. Optical Connection The AMG5803 connections are illustrated in the following example which shows an AMG5803 transmit unit together with an AMG5804R rackmount receive unit configured as a single channel point to point system.
- Page 4 Ethernet Data Connector ....RJ45 Interface ..........Auto-negotiation up to 100BASE-TX full duplex Ethernet Data Rate ......Maximum 100Mb/s total Ethernet traffic on fibre AMG Systems Ltd. reserves the right to make changes to this Page 4 of 8 AMG5803 Instruction Sheet D22090- document without notice.
- Page 5 Link integrity is good, Idle state GBlink - Data transfer Link not present AMG Systems Ltd. reserves the right to make changes to this Page 5 of 8 AMG5803 Instruction Sheet D22090- document without notice. The information herein is believed to 01.doc...
- Page 6 Data and Alarm Channel Configuration The AMG5803 transmit unit sends and receives data to/from an AMG5804 or rackmount equivalent AMG5804R receive unit. The 2 physical data interfaces RS-485, RS-422 or RS-232 are individually selectable by the user with the slide switch mounted from the rear panel.
- Page 7 RS-232 (no termination), RS-422 (120Ω) or RS-485 (120Ω). Alarm Channel Configuration The AMG5803 provides 8 bi-directional contact closure inputs / alarm outputs. Each ALARM IN input is via an internal 10kΩ series resistor with a 47kΩ pull-up resistor to the internal +3V3 supply.
- Page 8 There are no user serviceable parts within AMG products. See unit data sheet for full specification. In case of problem or failure, please call your local support centre or contact: AMG Systems Ltd. at 3 The Omega Centre, Stratton Business Park, Biggleswade, Beds., SG18 8QB, UK.
