Single Channel Video Receive Unit with two Bi-directional
Data Channels and eight Bi-directional Alarms plus
Ethernet for a Multimode Dual Fibre Link
The AMG5814R-DF is a rackmount one channel video receive unit designed to receive 1 video signal
and transmit and receive 2 data signals plus 8 bi-directional alarms and also provides full duplex
100Base-T Ethernet connectivity over two Multimode optical fibres.
The AMG5814R-DF is designed to plug into an AMG2009 or AMG2015 subrack, which in turn fits into
a 19" rack system.
The AMG5814R-DF is designed to operate with an AMG5813-DF or AMG5813R-DF video transmit
unit in a point to point configuration. The R suffix in the partno. indicates a rackmount configuration.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
AMG5814R-DF
Instruction Manual
Page 1 of 8
AMG5814R-DF Instruction Sheet
D22166-00.doc
Advertisement
Table of Contents
Related Manuals for AMG Systems AMG5814R-DF
Summary of Contents for AMG Systems AMG5814R-DF
- Page 1 2 data signals plus 8 bi-directional alarms and also provides full duplex 100Base-T Ethernet connectivity over two Multimode optical fibres. The AMG5814R-DF is designed to plug into an AMG2009 or AMG2015 subrack, which in turn fits into a 19" rack system.
-
Page 2: Table Of Contents

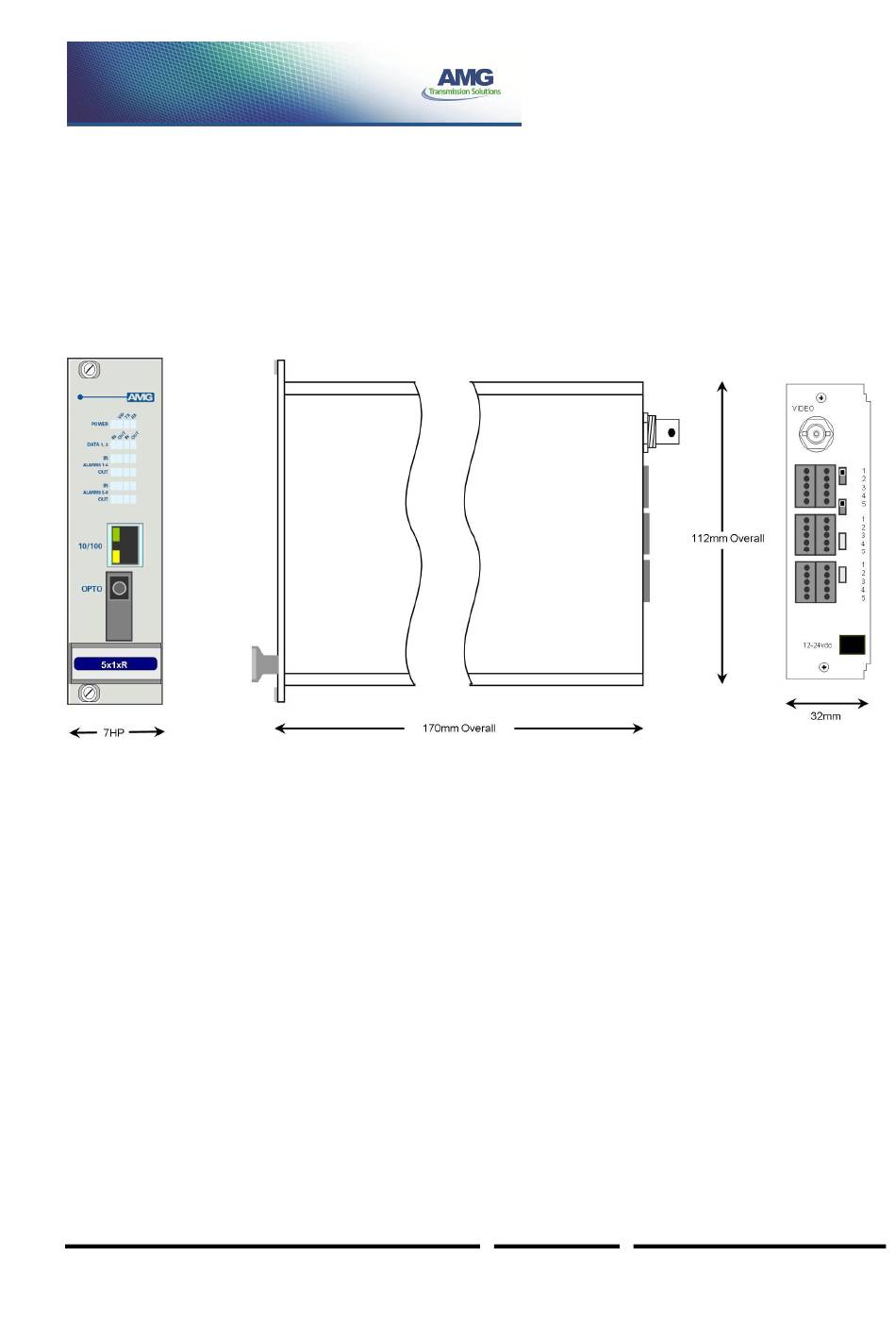

Physical Information Dimensions ............................ 8 Mounting Details ..........................8 Safety Maintenance and Repair AMG Systems Ltd. reserves the right to make changes to this Page 2 of 8 AMG5814R-DF Instruction Sheet document without notice. The information herein is believed to D22166-00.doc... -
Page 3: Introduction
Optical Connection The AMG5814R-DF connections are illustrated in the following example which shows an AMG5813R- DF transmit unit together with an AMG5814R-DF rackmount receive unit configured as a single channel point to point system. Ethernet Operation The Ethernet interface supports 100Mbit/s full duplex operation only. -
Page 4: Connections
Ethernet Data Connector ....RJ45 Interface ..........Auto-negotiation up to 100BASE-TX full duplex Ethernet Data Rate ......Maximum 100Mb/s total Ethernet traffic on fibre AMG Systems Ltd. reserves the right to make changes to this Page 4 of 8 AMG5814R-DF Instruction Sheet document without notice. -

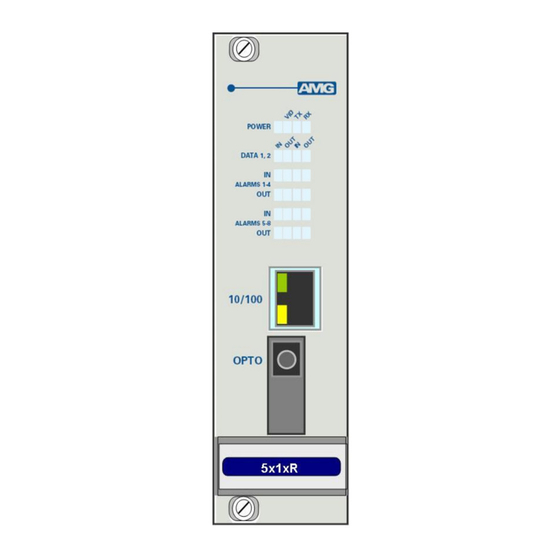

Page 5: Front Panel Indicators
Link integrity is good, Idle state GBlink - Data transfer Link not present AMG Systems Ltd. reserves the right to make changes to this Page 5 of 8 AMG5814R-DF Instruction Sheet document without notice. The information herein is believed to D22166-00.doc... -
Page 6: Data And Alarm Channel Configuration
Data and Alarm Channel Configuration The AMG5814R-DF receive unit sends and receives data to/from an AMG5813-DF or rackmount equivalent AMG5813R-DF transmit unit. The 2 physical data interfaces RS-485, RS-422 or RS-232 are individually selectable by the user with the slide switch mounted from the rear panel. -
Page 7: Alarm Channel Configuration
RS-232 (no termination), RS-422 (120Ω) or RS-485 (120Ω). Alarm Channel Configuration The AMG5814R-DF provides 8 bi-directional contact closure inputs / alarm outputs. Each ALARM IN input is via an internal 10kΩ series resistor with a 47kΩ pull-up resistor to the internal +3V3 supply. -
Page 8: Alarm Interface Connections
There are no user serviceable parts within AMG products. See unit data sheet for full specification. In case of problem or failure, please call your local support centre or contact: AMG Systems Ltd. at 3 The Omega Centre, Stratton Business Park, Biggleswade, Beds., SG18 8QB, UK.
