Summary of Contents for Omega ODW300XN

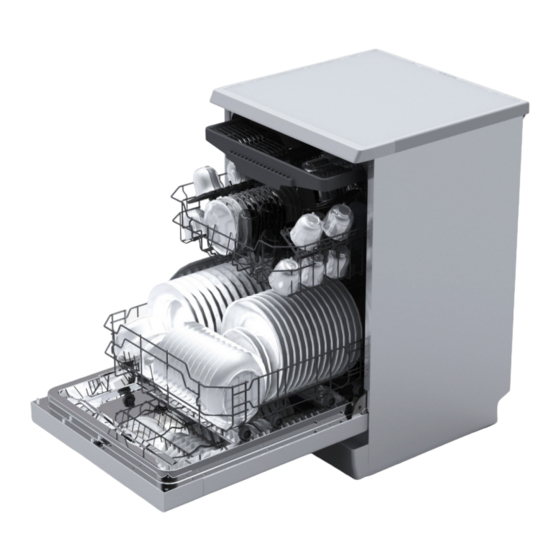

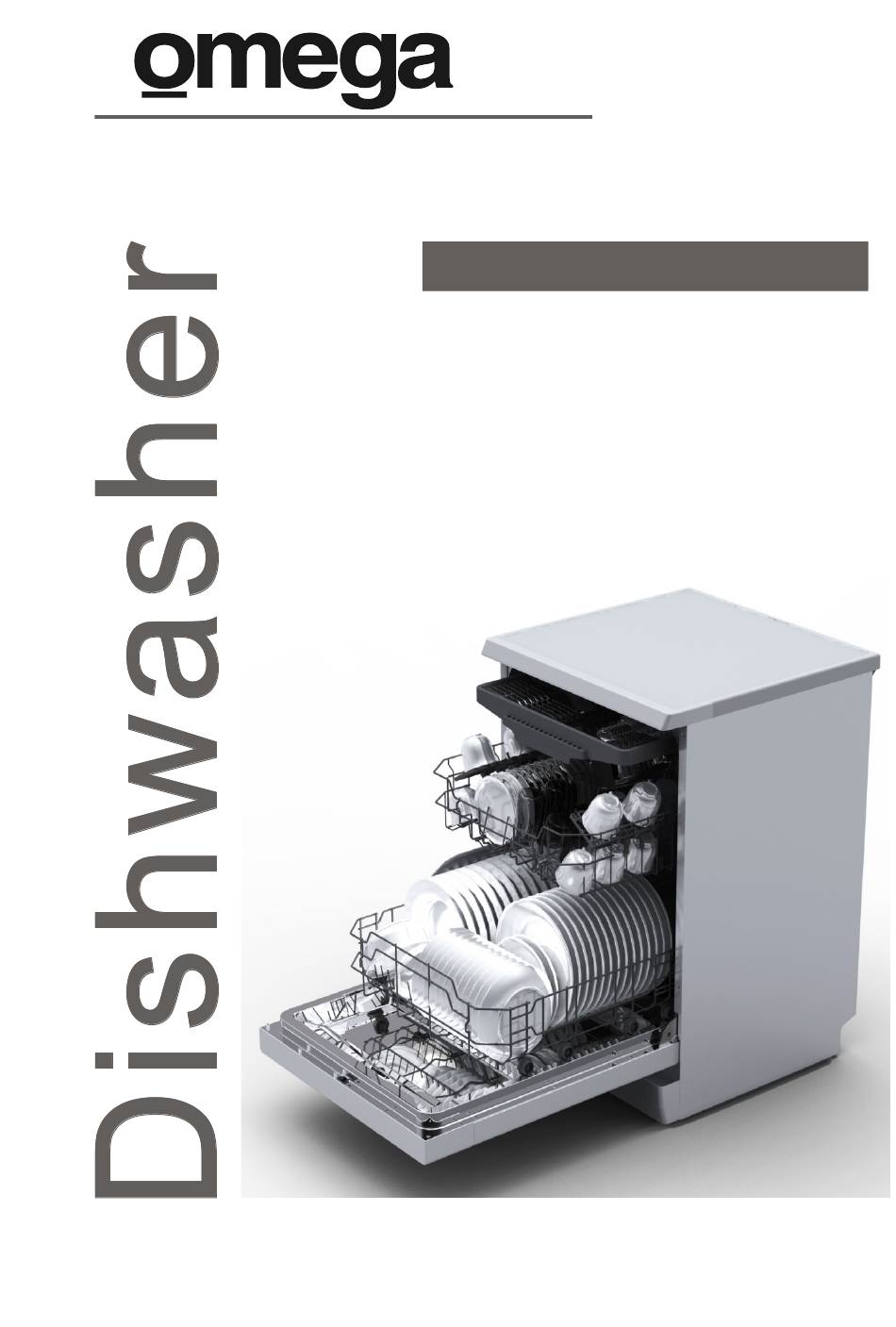

- Page 1 Instruction Manual Instruction Manual ODW300XN 10 place settings...
- Page 3 2.Quick operation guide 2.Quick operation guide For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Open the door, press the On/Off button to switch on the appliance. Compartment A: Compartment A: For each wash cycle. Compartment B: Compartment B: Fill the detergent dispenser...
- Page 4 Recommendation..........Following cutlery/dishes........
-
Page 5: Important Safety Information
1.IMPORTANT SAFETY INFORMATION 1.IMPORTANT SAFETY INFORMATION WARNING! WARNING! When using your dishwasher, follow the precautions listed below: This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses;... - Page 6 Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
- Page 7 Disposal Disposal Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled. Plastic parts are marked with the standard international abbreviations: for polyethylene, e.g. sheet wrapping material for polystyrene, e.g. padding material polyoxymethylene, e.g. plastic clips polypropylene, e.g. Salt filler Acrylonitrile Butadiene Styrene, e.g.
-
Page 8: Control Panel
3.Operation Instruction 3.Operation Instruction IMPORTANT IMPORTANT To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Control Panel Control Panel 3 3 4 4 6.Start /Pause button: To start the selected 1. -
Page 9: Rinse Aid Dispenser
Prior using for the first time Prior using for the first time Before using your dishwasher for the first time: Fill the rinse aid dispenser Fill in detergent A. Rinse Aid Dispenser A. Rinse Aid Dispenser Rinse Aid Dispenser The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. - Page 10 NOTE: NOTE: Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming during the next wash. Don't forget to replace the cap before you close dishwasher door. Adjusting Rinse Aid Dispenser The rinse aid dispenser has six or four settings. Always start with the dispenser Adjust lever Adjust lever set on "4".
-
Page 11: Proper Use Of Detergent
Proper Use of Detergent Use only detergent specifically made for the use in dishwashers. Keep your detergent fresh and dry. Don't put powdered detergent into the dispenser until you're ready to wash dishes. Adding detergent to dispenser Push latch to open Push latch to open Fill in Detergent Fill the detergent dispenser with detergent. -
Page 12: Attention Before Or After Loading The Dishwasher Baskets
5.Loading the Dishwasher Baskets 5.Loading the Dishwasher Baskets Recommendation Recommendation Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low a temperature as possible. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended. -
Page 13: The Method Loading Normal Dishware
The Method Loading Normal Dishware The Method Loading Normal Dishware Loading the Upper Basket Loading the Upper Basket Loading the Lower Basket Loading the Lower Basket The upper basket is designed to hold more delicate We suggest that you place large items and the most and lighter dishware such as glasses, coffee and difficult to clean items are to be placed into the lower tea cups and saucers, as well as plates, small bowls... -
Page 14: Starting A Washing Program
6.Starting a washing program 6.Starting a washing program Wash Cycle Table Wash Cycle Table Means: Rinse-aid dispenser needs to be filled. NOTE: NOTE: Detergent Detergent Description Description Cycle Selection Cycle Selection Running Running Rinse Rinse Energy Energy Water Water Program Program of Cycle of Cycle... -
Page 15: Change The Program
NOTE: NOTE: When you press the Start/Pause button to pause during washing, the LED display? ?will stop blinking and the dishwasher will mooing every minute unless you press the Start/Pause button to start. Change the Program Change the Program Premise: A cycle that is underway can only be modified if it has only been running for a short time. -
Page 16: Maintenance And Cleaning
7.Maintenance and Cleaning 7.Maintenance and Cleaning Filtering System Filtering System The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter,a flat (Main filter) And a microfilter(Fine filter). - Page 17 Remarks: - Inspect the filters for blocking after every time the dishwasher has been used. - By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water. NOTE: NOTE: The entire filter assembly should be cleaned once a week.
-
Page 18: Installation Instruction
How to Keep Your Dishwasher in Shape After Every Wash When not in Use for a LongTime It is recommend that you run a wash cycle with the After every wash, turn off the water supply to the dishwasher empty and then remove the plug from the appliance and leave the door slightly open so that socket, turn off the water supply and leave the door of moisture and odours are not trapped inside. -
Page 19: Drain Hose Connection
Water Connection Water Connection Cold Water Connection Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. -
Page 20: Start Of Dishwasher
How to Drain Excess Water From Hoses If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink. -
Page 21: Troubleshooting Tips
9.Troubleshooting Tips 9.Troubleshooting Tips Before Calling for Service Before Calling for Service Review the charts on the following pages may save you from calling for service. Problem Possible CausesWhat to Do Dishwasher doesn't Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher start... -
Page 22: Error Codes
Problem Possible Causes What to Do The dishes The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. are not clean The programme was Select a more intensive programme. not powerful enough. See" Wash Cycle Table ". Not enough detergent Use more detergent, or change your detergent. -
Page 23: Technical Information
Technical Information Technical Information Height : 845mm Width : 448m m Depth : 600mm (with the door closed) Water pressure: 0.04-1.0MPa Power supply: see rating label Capacity: 10 place settings...
