Instruction Manual
Dishwasher

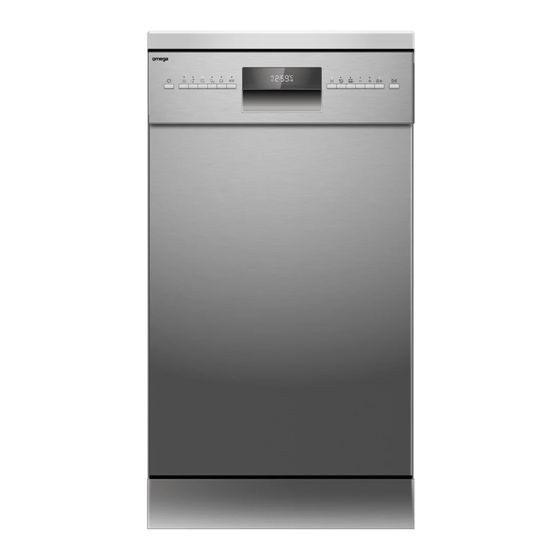

ODW310X

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ODW310X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Omega ODW310X

Summary of Contents for Omega ODW310X

  • Page 1 Instruction Manual Dishwasher ODW310X...
  • Page 2 Thank you for purchasing an Omega appliance Tailored for the modern aesthetic and lifestyle of busy people, your new Omega Appliance will make a welcome addition to the family. Omega caters to style-savvy customers who look for balance between stunning form and clever function.

  • Page 3: Table Of Contents

    The manufacturer will not be responsible for any damage to property or to persons caused by incorrect installation or improper use of the appliance. Due to continual product development, Omega reserves the right to alter specifications and appearances without notice.

  • Page 4: Important Safety Warnings

    SAFETY INFORMATION When using your dishwasher , follow the precautions listed below: Installation and repair can only be carried out by a qualified technician This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments;...
  • Page 5 mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Packaging material could be dangerous for children! This appliance is for indoor household use only. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
  • Page 6 Do not modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician. Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure panels are properly in place.
  • Page 7 Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For unmarked plastic items not so marked, check the manufacturer's recommendations. Use only detergent and rinse agents recommended for use in an automatic dishwasher. Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
  • Page 8 For disposing of package and the appliance please go to a recycling center. Therefore cut off the power supply cable and make the door closing device unusable. Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.

  • Page 9: Product Overview

    PRODUCT OVERVIEW IMPORTANT: To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Top spray arm Inner pipe Lower spray arm Filter assembly Dispenser upper spray arm Cup rack Cutlery rack Upper basket Lower basket NOTE:...

  • Page 10: Using Your Dishwasher

    USING YOUR DISHWASHER Before using your dishwasher : Inside Outside 1. Loading the basket 2. Fill the rinse aid dispenser (Please check the section 1 of PART Ⅱ: Special Version) 3. Fill in detergent (Please check the section 1 of PART Ⅱ: Special Version) Basket Used Tips Adjusting the upper basket Type 1:...
  • Page 11 Type 2: To raise the upper basket, just lift To lower the upper basket, lift the the upper basket at the center of adjust handles on each side to each side until the basket locks into release the basket and lower it to place in the upper position.

  • Page 12: Maintenance And Cleaning

    MAINTENANCE AND CLEANING External Care The door and the door seal Clean the door seals regularly with a soft damp cloth to remove food deposits. When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms.
  • Page 13 Coarse filter n filter Fine filter Open Hold the coarse filter and rotate it The fine filter can be pulled off the bottom of the filter assembly. anticlockwise to unlock the filter. Lift the filter upwards and out of The coarse filter can be detached the dishwasher.
  • Page 14 Spray arms It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To clean the spray arms, follow the instructions below: To remove the upper spray arm, To remove the lower spray arm, pull hold the nut in the center still and out the spray arm upward.
  • Page 15 Caring For The Dishwasher Frost precaution Please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows: 1. Cut off the electrical power to the dishwasher at the supply source. 2. Turn off the water supply and disconnect the water inlet pipe from the water valve. 3.

  • Page 16: Installation Instructions

    INSTALLATION INSTRUCTION Electrical Shock Hazard Attention The installation of the pipes and electrical equipments should be done by professionals. About Power Connection Electrical requirements Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10A/13A/16A, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.
  • Page 17 Cold water connection Connect the cold water supply hose to a threaded 3/4 inch connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure ordinary supply hose that the water is clear.
  • Page 18 Connection Of Drain Hoses Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 1000mm. The free end of the hose must not be immersed in water to avoid the back flow of it.
  • Page 19 Position The Appliance Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.
  • Page 20 1. If dishwasher is in stalled at the corner of the cabinet, there should be some space when the door is opened. Dishwasher Cabinet Door of dishwasher Minimum space NOTE: of 50mm Depending on where your electrical outlet is, you may need to cut a hole in the opposite cabinet side.

  • Page 21: Troubleshooting

    TROUBLESHOOTING TIPS Before Calling For Service Reviewing the charts on the following pages may save you from calling for service. Problem Possible Causes What To Do Dishwasher doesn't Fuse blown, or the Replace fuse or reset circuit breaker. start circuit break tripped. Remove any other appliances sharing the same circuit with the dishwasher.
  • Page 22 Problem Possible Causes What To Do Spilled rinse-aid. Always wipe up rinse-aid spills immediately. Stained tub interior Detergent with Make sure that the detergent has no colourant may colourant. have been used. White film on Hard water minerals. To clean the interior, use a damp inside surface sponge with dishwasher detergent and wear rubber gloves.
  • Page 23 Problem Possible Causes What To Do The dishes Not enough detergent Use more detergent, or change are not clean. was dispensed. your detergent. Items are blocking Rearrange the items so that the spray the movement of can rotate freely. the spray arms. The filter combination Clean and/or fit the filter correctly.
  • Page 24 Problem Possible Causes What To Do The dishes aren't Wrong program has With a short program, the washing drying been selected. temperature is lower, decreasing cleaning performance. Choose a program with a long washing time. Use of cutlery with a Water drainage is more difficult with low-quality coating.

  • Page 25: Loading The Baskets

    LOADING THE BASKETS ACCORDING TO AS/NZS 2007.1: Upper basket: Number Item Cups Saucers Glasses Lower basket: Number Item Dessert dishes Dinner plates Soup plates...
  • Page 26 Cutlery basket: Item Number Soup spoons Forks Knives Teaspoons Dessert spoons Information for comparability tests in accordance with (*AS/NZS 2007.1 ) Capacity: 10 place settings Position of the upper basket: lower position Program: ECO Rinse aid setting: 6 Detergent(Pre/main): 5g/22.5g Door is open at the end of the drying cycle for the drying performance test (Door position: Open 50 mm)

  • Page 27: Quick User Guide

    QUICK USER GUIDE Please read the corresponding content on the instruction manual for detailed operating method. (Please check the section 5 “INSTALLATION INSTRUCTION ” of PART Ⅰ: Generic Version.) Removing the larger residue on the cutlery Selecting a program and running the dishwasher...
  • Page 28 USING YOUR DISHWASHER Control Panel Operation (Button) Press this button to turn on your dishwasher,the screen lights up. 1 Power select the approriate washing program, the selected program indicator will be lit. ECO program This is the standard program suitable for normally soiled loads, such as pot, plates glasses and lightly soiled pans.
  • Page 29 90min For normally soiled loads that need quick wash. Program Rapid A shorter wash for lightly soiled loads that do not need drying. For better drying result. 3 Extra drying (This function is not compatible with the Rapid program.) When you have about or less than half of full place settings dishware to wash, you can choose this function to save energy and water.
  • Page 30 Display If the Water Faucet indicator function is activated.
  • Page 31 Preparing And Loading Dishes Consider buying utensils which are identified as dishwasher-proof. For particular items, select a program with the lowest possible temperature. To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the program has ended. For washing the following cutlery/dishes Are not suitable Cutlery with wooden, horn china or mother-of-pearl handles...
  • Page 32 Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base. Dishes and items of cutlery must not lie inside one another, or cover each other. To avoid damage, glasses should not touch one another.
  • Page 33 Loading the upper basket The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.
  • Page 34 Function Of The Rinse Aid And Detergent The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. When to refill the rinse aid dispenser Unless the rinse-aid warning light ( ) on the control panel is on, you can always...
  • Page 35 Filling The Rinse Aid Reservoir Rinse-Aid indicator To open the dispenser, turn the cap Carefully pour in the rinse-aid into to the "open" (left) arrow and lift its dispenser, whilst avoiding it to it out. overflow. NOTE: Clean up any spilled rinse aid with an absorbent cloth to avoid excessive foaming during the next wash.
  • Page 36 Filling The Detergent Dispenser Push latch to open Press the release catch on the detergent Add detergent into the larger cavity dispenser to open the cover. (A) for the main wash cycle . For more heavily soiled wash loads, also add some detergent into the smaller cavity (B) for the pre-wash cycle .
  • Page 37 PROGRAMMING THE DISHWASHER Wash Cycle Table The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs. )Means: need to fill rinse into the Rinse-Aid Dispenser. Description Energy Water...
  • Page 38 NOTE: AS/NZS 2007.1: This program is the test cycle. The information for comparability test in accordance with AS/NZS 2007.1. Starting A Cycle Wash 1. Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one. 2.
  • Page 39 A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below: 1. Press the Start/Pause button to pause the washing. 2. Wait 5 seconds then open the door. 3. Add the forgotten dishes. 4.

  • Page 40: Error Codes

    ERROR CODES If there is a malfunction, the dishwasher will display error codes to identify these: Codes Meanings Possible Causes Faucets is not opened, or water intake is Longer inlet time. restricted, or water pressure is too low. Not reaching required Malfunction of heating element.

  • Page 41: Technical Information

    TECHNICAL INFORMATION Height (H) 845mm Width (W) 448mm Depth (D1) 600mm (with the door closed) Depth (D2) 1175mm (with the door opened 90°)
  • Page 42 Technical Information Manufacturer Omega Type / Description ODW310X Standard place settings Energy efficiency class Water consumption class Standard cleaning cycle Energy consumption of the standard cleaning cycle 0.506 kWh Water consumption of the standard cleaning cycle 11 liter Program duration of the standard cleaning cycle...

  • Page 43: Warranty

    WHAT IS COVERED: By Our Warranty During the warranty period, Omega or its authorised Service Centre will, at no extra charge, if your appliance is readily accessible without the need of special equipment and subject to the terms and conditions of this warranty, repair or replace any parts which it considers defective.
