Project Nursery PNM411 User Manual

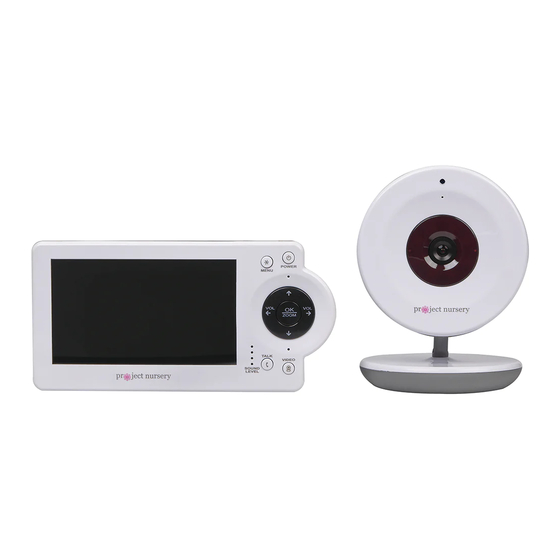

Video baby monitor with digital zoom camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Guide
What's inside
Welcome! ................................................................ 2
Getting started ...................................................... 3
Tour of the system ............................................... 7
Everyday use .........................................................13
Cameras ............................................................14
Motion/Alerts ..................................................18
Recording ......................................................... 21
Playing Back Pictures and Videos .......22
Sleep Mode .....................................................23
Lullabies ...........................................................24
Contrast............................................................25
Settings ............................................................26
Troubleshooting / FAQs ..................................28

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PNM411 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Project Nursery PNM411

Summary of Contents for Project Nursery PNM411

  • Page 1: Table Of Contents

    What’s inside Welcome! ..............2 Getting started ............3 Tour of the system ..........7 Everyday use ............13 Cameras ............14 Motion/Alerts ..........18 Recording ............21 User Guide Playing Back Pictures and Videos ..22 Sleep Mode .............23 Lullabies ............24 Contrast............25 Settings ............26 Troubleshooting / FAQs ........28...

  • Page 2: Welcome

    WELCOME! This baby monitoring system Step 1: Unpack makes it simple to keep your eyes and ears on your little one! This guide takes you through the steps to get started! Parent monitor Wireless camera See our setup videos Go to ProjectNursery.com/ Electronics or scan the QR code here.

  • Page 3: Getting Started

    GETTING STARTED Step 2: Charge the monitor Step 3: Position the camera(s) Find a location for the Find one of the charging camera that gives you the cables included in this best view of your baby in his package. or her crib. Plug one end of this cable into the USB CHARGING jack on the side of the parent monitor.
  • Page 4 Step 4: Plug in the camera(s) Step 5: Turn on the monitor Find the other charging cable(s) included in Press and hold the POWER this package. button on the parent monitor to turn it on. Plug one end into the CHARGING jack on the back of the camera(s).
  • Page 5 Step 6: Set the time on the monitor Press the MENU button on the parent Use the up/down arrow buttons to set the monitor. The menu appears on screen. hours, minutes, and AM/PM. Press OK/ ZOOM when you’re finished. 72º 12:00AM Temperature Time Set...

  • Page 6: Tour Of The System

    TOUR OF THE SYSTEM Parent Monitor accesses the system’s menu screens. turns the monitor on and off (press and hold). turn the volume down/up. In menu screens, these navigate left/right. zooms the camera in/out. navigate up/down in menu screens. SOUND LEVEL indicators show you the level of sound from your baby’s room.
  • Page 7 Parent monitor side and back panels USB CHARGING jack plugs into your charging cable to recharge or power the parent monitor. Built-in easel stand lets you stand the unit on a flat surface. Built-in easel stand Zoom Talking to baby Listening to baby To zoom the active camera: To talk through the speaker...
  • Page 8 Status Bar Indicators Parent monitor shows the strength of the current camera’s signal. Temperature reading shows the temperature in Fahrenheit 72º 2:35 PM at the active camera. If you want to change this to Celsius, see page 27 for instructions. Temperature shows the camera that the monitor is currently reading...
  • Page 9 indicates the Lullabies are playing through one of the cameras. See page 24 for instructions on playing lullabies. indicates that the camera is using night vision. The cameras automatically switch to night vision when they detect that the room has gotten dark. indicate that the monitor is scanning through the available cameras.
  • Page 10 Camera (front, back, and side) Microphone Nighttime sensor Thermal sensor Mounting keyholes POWER (back) turns the camera on and off (press and hold). PAIR (back) links the camera securely with the monitor (press and hold). CHARGING (back) plugs into your charging cable to recharge or power the camera. Mounting keyholes (bottom) let you mount the camera on a wall (mounting hardware not included).

  • Page 11: Everyday Use

    3. EVERYDAY USE This system’s menus let you set 72º 12:00AM up more cameras, set motion and temperature alerts, and much more. This section takes you through each menu. Parent Monitor Menu GETTING AROUND IN THE MENUS Press MENU to access the menus. Use the arrows to highlight items.

  • Page 12: Cameras

    Cameras The Cameras menu lets you pair additional cameras or remove them from your list of cameras. If you have multiple cameras, this menu also lets you scan through them one by one. ACCESSING THE CAMERAS MENU Parent Monitor Front Press MENU on the parent monitor.
  • Page 13 Press the Pair button on the bottom of the new camera. Use the up/down arrows to select Pair: Camera 2, Pair: Camera 3, or Pair: Camera 4. Press OK/ZOOM to select it. If the monitor screen shows a green checkmark next to Pair: Camera, you’re all set to use the monitor and the camera! (If it shows a red X, put the camera closer to the monitor and try again.)
  • Page 14 To scan through the cameras automatically: In the Cameras menu, highlight Scan Cameras. Press OK/ ZOOM to select it. Use the up/down arrows to select how quickly you want to switch cameras: every 5, 10, or 15 seconds. Press OK/ ZOOM to select that option.

  • Page 15: Motion/Alerts

    Motion/Alerts The Motion/Alerts menu lets you set up alerts that are activated by motion, sound, or temperature in your baby’s room. It also lets you set up an alert for when the monitor’s rechargeable battery needs to be recharged. Parent Monitor ACCESSING THE MOTION/ALERTS MENU Front Press MENU on the parent monitor.
  • Page 16 Use the up/down arrows to select the amount of sensitivity 72º 12:00AM you want for the motion sensor: ON: Low, ON: Medium, or Motion Activated Video ON: High. The status bar at the top of the screen shows an Sound Activated Video: OFF ON: LOW Temperature Alert: OFF ON: Medium...
  • Page 17 SETTING TEMPERATURE ALERTS 72º 12:00AM These.alerts.tell.you.when.your.baby’s.room.is.too.hot.or.too. Motion Activated Video: OFF Sound Activated Video: ON cold. Temperature Alert High Temp: ON: 81 Low Battery Noise Alert: OFF Out of Range Alert: OFF In.the.Motion/Alerts.menu,.select.Temperature Alert.. Low Temp: ON: 63 .. Activate.the.temperature.alert.you.want.to.use,.then.set.it.. The.status.bar.at.the.top.of.the.screen.will.show.an.indicator. for.temperature.alerts:.
  • Page 18 SETTING AN OUT-OF-RANGE ALERT 72º 12:00AM This.alert.tells.you.when.the.monitor.is.out.of.range.of.the. Motion Activated Video: OFF camera. Sound Activated Video: OFF Temperature Alert: OFF Low Battery Noise Alert: ON In.the.Motion/Alerts.menu,.highlight.Out of Range Alert.and. Out of Range Alert press.OK/ZOOM.to.select.it..Use.the.up/down.arrows.to.turn.the.out-of-range.alert.on. or.off..The.status.bar.at.the.top.of.the.screen.shows.an. indicator.for.the.out-of-range.alert:. ..

  • Page 19: Sleep Mode

    Sleep Mode You.can.set.up.your.monitor.to.turn.off.the.display. automatically.after.a.set.amount.of.time.. Parent Monitor ACCESSING THE SLEEP MODE MENU Front Press.MENU.on.the.parent.monitor..Use.the.arrow.buttons.to.highlight.the.Sleep Mode.icon,. and.press.OK/ZOOM.to.select.it. SETTING SLEEP MODE 72º 12:00AM Sleep Mode (video off, sound on) In.the.Sleep Mode.menu,.press.OK/ZOOM.to.turn.sleep. mode.on. ON: 5 mins ON: 30 mins ON: 60 mins ..

  • Page 20: Lullabies

    Lullabies This.Project.Nursery.system.comes.with.3.lullabies,.a.nature. sound,.and.white.noise.ready.to.play—simply.choose.the.one. you.want,.and.the.camera.you’re.on.will.play.it.back. PLAYING LULLABIES OR WHITE NOISE Parent Monitor Front Make.sure.the.monitor.is.displaying.the.camera.you.want.to. play.the.lullaby.on..If.you.want.to.play.on.a.different.camera,. press.the.MENU.button.and.select.CAMERAS..Then.press. OK/ZOOM.to.select.View Camera.and.choose.the.camera. you.want. .. Press.the.MENU.button.to.access.the.main.menu. .. Highlight.LULLABIES.and.press.OK/ZOOM.to.choose.it. .. Highlight.the.option.you.want.to.play.and.press.OK/ZOOM. 72º 12:00AM to.start.playing.it..The.status.bar.at.the.top.of.the.screen. “Mozart” shows.an.indicator.for.lullabies:. .. “Twinkle, Twinkle Little Star” “Brahms’ Lullaby” White Noise Waves Play All NOTE:.If.there’s.a.lullaby.currently.playing.on.a.camera,.a.green.arrow.
  • Page 21 Display You.can.adjust.the.brightness.of.the.display,.and.set.it.to. automatically.dim.after.a.set.amount.of.time.. ADJUSTING BRIGHTNESS Parent Monitor Press.MENU.on.the.parent.monitor.. Front .. Use.the.arrow.buttons.to.highlight.the.Display.icon,.and. press.OK/ZOOM.to.select.it. In.the.Display.menu,.highlight.Adjust Brightness,.and.press. OK/ZOOM.to.select.it. .. Use.the.up.and.down.arrows.to.adjust.the.brightness..Press. OK/ZOOM.when.you’ve.finished. SETTING AUTO DIMMING 72º 12:00AM In.the.Display.menu,.highlight.Auto Dimming..Press.OK/ Adjust Brightness ZOOM.to.select.it. Auto Dimming .. Use.the.up.and.down.arrows.to.choose.the.delay.for.auto. dimming.the.display:.5,.10,.or.30.minutes..Press.OK/ZOOM. to.select.

  • Page 22: Settings

    Settings The.Settings.menu.lets.you.customize.the.monitor.to.match. your.preferences..It.also.gives.you.technical.information.about. the.monitor.and.support.. ACCESSING THE SETTINGS MENU Parent Monitor Press.MENU.on.the.parent.monitor.. Front .. Use.the.arrow.buttons.to.highlight.the.Settings.icon,.and. press.OK/ZOOM.to.select.it. SETTING YOUR TEMPERATURE PREFERENCE 12:00AM 72º Temperature In.the.Settings.menu,.press.OK/ZOOM.to.select. Time Set Temperature. Factory Reset Support Product Information .. Use.the.up.and.down.arrows.to.select.how.you’d.like. temperature.to.be.displayed:.in.degrees.Fahrenheit.or. Celsius..Press.OK/ZOOM.when.you’ve.finished.
  • Page 23 SETTING THE TIME 72º 12:00AM Temperature In.the.Settings.menu,.press.the.down.arrow.to.highlight. Time Set Time: 12:00 AM Time Set..Press.OK/ZOOM.to.select.it.. Factory Reset Support Product Information .. Use.the.up/down.arrows.to.set.the.time..Press.OK/ZOOM. when.you’re.finished. RESETTING TO FACTORY SETTINGS 72º 12:00AM If.you’ve.tried.all.of.the.troubleshooting.solutions.to.solve. Temperature Time Set a.problem,.and.nothing.seems.to.work,.you.might.need.to. Factory Reset Reset to Factory Default? reset.the.monitor.to.its.factory.settings.and.start.setup.again.. Support Product Information Cancel...

  • Page 24: Troubleshooting / Faqs

    4. TROUBLESHOOTING / FAQS Most.issues.with.the.Project.Nursery.baby.monitoring.system.can.be.solved.by.following.one.of. the.troubleshooting.tips.below..For.additional.assistance,.please.call.1-844-393-7338. I don’t see video from the camera on my monitor. +. Make.sure.your.monitor.is.turned.on.(press.the.Power.button)..If.it.is,.press.the.VIDEO ON/ OFF.button.to.make.sure.the.monitor’s.display.is.awake..Make.sure.the.camera.is.plugged.in.to. a.working.outlet.and.turned.on.. I see the icon on the screen. +. Make.sure.the.camera.you’re.trying.to.view.is.plugged.in.to.a.working.outlet.and.turned.on. +. Make.sure.the.monitor.is.within.range.(maximum.800.ft).of.the.camera.you’re.trying.to.display. (certain.kinds.of.signal.obstacles,.like.large.metal.objects,.might.shorten.the.range.somewhat). +. The.monitor.you’re.using.might.have.become.un-paired.with.the.camera..See.page.15.for. instructions.on.pairing.a.monitor.and.camera. I can’t hear sounds from baby’s room. +.
  • Page 25 The temperature alerts don’t work. +. Make.sure.you’ve.set.the.temperature.preference.to.the.system.you.use,.Fahrenheit.(standard. in.the.US).or.Celsius.(standard.outside.the.US)..To.switch.your.temperature.preference,.go.to. Settings.>.Temperature. +. Make.sure.you’ve.set.the.right.kind.of.temperature.alert—for.example,.if.you.want.to.make.sure. your.baby’s.room.does.not.get.below.68.degrees.Fahrenheit,.set.the.Low Temp Temperature Alert.to.68..If.you.want.to.make.sure.your.baby’s.room.doesn’t.get.above.a.certain. temperature,.set.the.High Temp Temperature Alert.to.that.temperature. Motion alerts don’t work. +. You.might.need.to.adjust.the.sensitivity.of.the.alerts—for.example,.if.Motion Activated Video. is.set.to.ON: Low,.the.monitor.will.not.come.on.as.often.as.when.Motion Activated Video.is. set.to.ON: Medium.or.ON: High..To.adjust.this.setting,.go.to.Motion/Alerts.>.Motion Activated Video.. +. If.you.have.multiple.cameras,.you.might.need.to.change.the.active.camera—motion.alerts.work. for.the.active.camera.only..Press.VIDEO ON/OFF.to.make.sure.the.camera.you.want.to.use.for. motion.alerts—the.one.with.the.clearest.view.of.your.baby,.for.example—is.the.one.displayed.
  • Page 26 ©2017.Voxx.Accessories.Corp.. 3502.Woodview.Trace,.Suite.220. Indianapolis,.IN.46268 PNM4N11.UG.00...
  • Page 27 • Only use the chargers and power adapters provided. Do not use other chargers or power adapters as this may damage the device and battery pack. for Project Nursery PNM4N11 • Only insert a battery pack of the same type.
  • Page 28 FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the 12 Month Limited Warranty party responsible for compliance could void the user’s authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). Voxx Accessories Corporation (the “Company”) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or FCC Radiation Exposure Statement...
