Carlisle Fluid Technologies DeVILBISS TGS-503 Service Manual

SERVICE MANUAL
EN

DESCRIPTION

The TGS-503 8 ounce polyethylene cup is typically used in the applica-
tion of small amounts of material as in touch-up work. The TGS-503 is
suitable for use with all common paints and solvents.
TGS-503 cup can be used with chlorinated solvents. These
solvents will not affect the material used in this cup.
Refer to NFPA-33 publication regarding proper storage
of flammable/combustible materials.

INSTALLATION

Fasten cup to gun by attaching to fluid inlet nipple on gun body. Tighten
only until snug. Lid Assembly (2) should be positioned so vent hole is
to rear. When spraying upwards, it may be necessary to position vent
toward front of gun body.

OPERATION

Strain all materials prior to putting into cup (5). A 90 mesh screen is
recommended for this purpose. Do not fill cup (5) beyond level shown.
See Figure 1.

PREVENTIVE MAINTENANCE

Clean with solvent and wipe with rag.
Replacement
Ref.
Part No. Description
No.
1 AD-404 Adapter - Accessory
1/4" NPS(M) x 3/8" NPS(F)
2 TGS-401 Lid Assembly
3 TGS-4-K5 Gasket (Kit of 5)
4 TGS-6-K5 Fluid Tube 4" (Kit of 5)
5 TGS-406 Cup and Cover Assembly
(Polyethylene)
6 ---- Cup Lid
This lid assembly can be used along with AD-404 (1) adapter for use
with JGA, MBC or other guns with a 3/8" NPS(M) fluid inlet. The EGA
gun uses this lid assembly without the adapter.
One C-422 (6) cup lid is included. Not a purchasable part. Included
in TGS-406 (5).
It is the Customer's responsibility to have all operators and service personnel read and understand this manual.
Contact your local DeVilbiss representative for additional copies of this manual.
READ ALL INSTRUCTIONS BEFORE OPERATING THIS DEVILBISS PRODUCT.
SB-4-090-R1 (10/2018)
TGS-503
8 OUNCE SUCTION FEED CUP
Note
IMPORTANT! DO NOT DESTROY
2
3
Individual
6
Parts. Req.
5
1
1
1
1
1
1
1 / 2
4
Do not fill above
250 ml line
www.carlisleft.com
1
1/4 NPS (F)
Keep vent
hole open

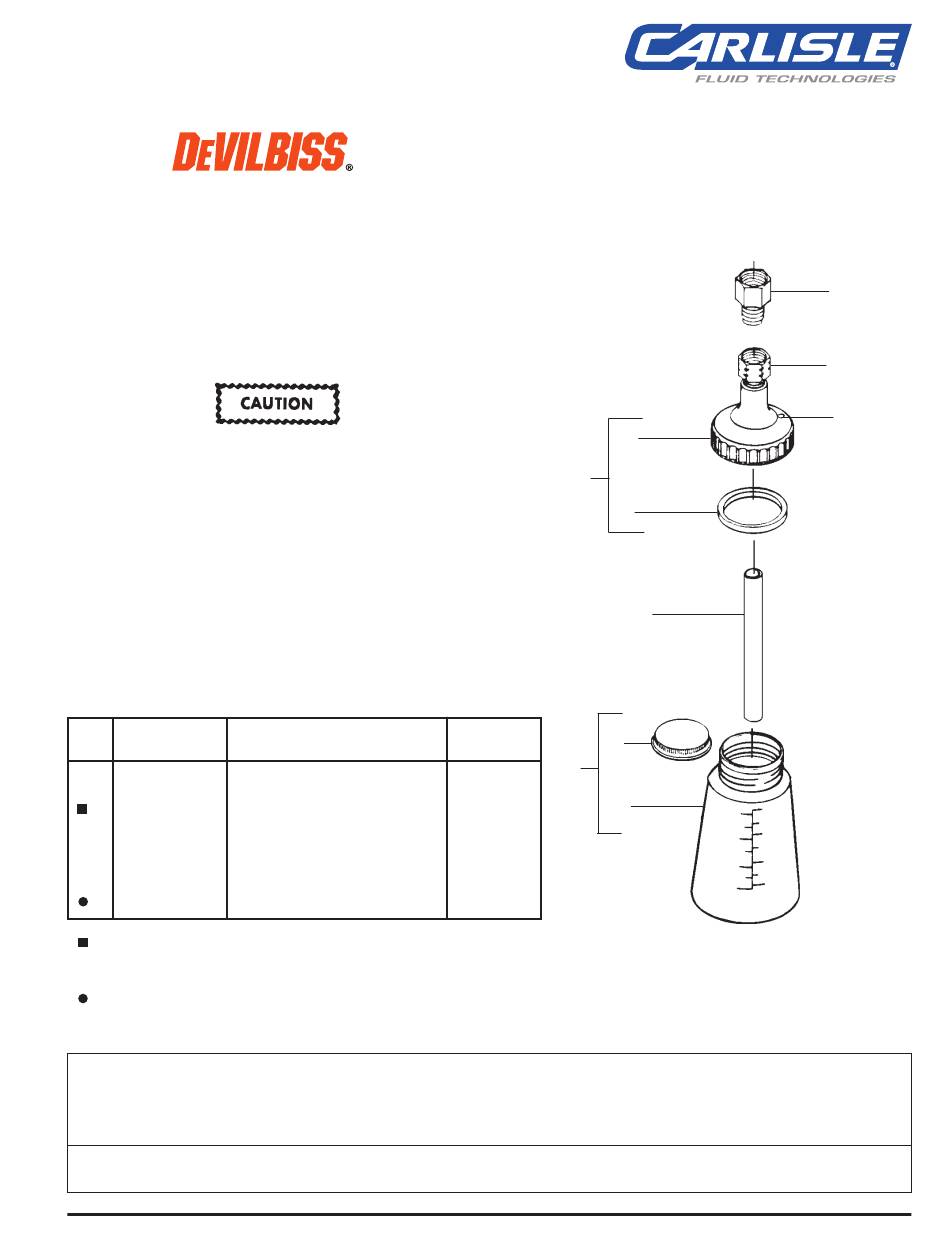

Figure 1
