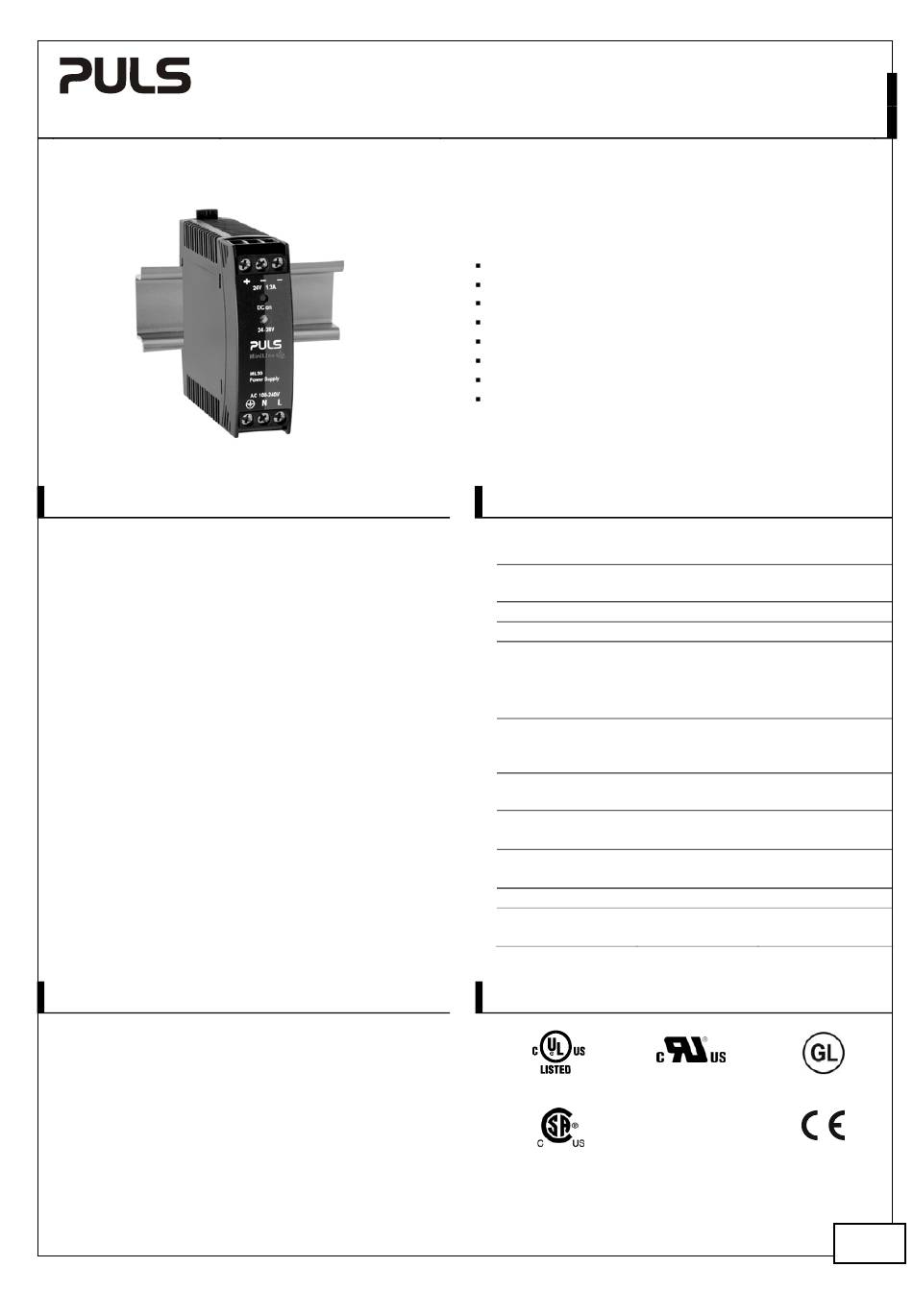

Puls MiniLine-2 ML3240FE-R52 Manual

MiniLine-2
G D
ENERAL ESCRIPTION

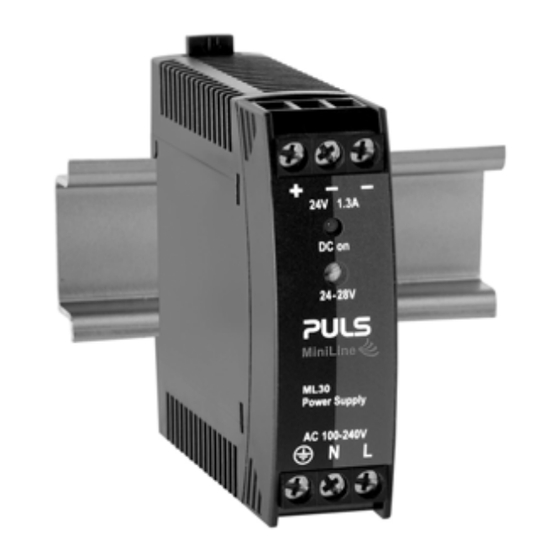

A compact size, light weight, simple mounting onto the
DIN-rail and the utilization of only quality components
are what makes the MiniLine power supplies so easy to
use and install within seconds.
The rugged electrical and mechanical design as well as a
high immunity against electrical disturbances on the
mains provides reliable output power. This offers
superior protection for equipment which is connected
to the public mains network or is exposed to a harsh
industrial environment.
The MiniLine series offers output voltages from 5 to
56Vdc and a power rating from 15W to 120W.
The supplementary MiniLine
MLY10.241 allows building of redundant systems or to
protect against back-feeding voltages.
O N
RDER UMBERS
Power Supply ML30.241
Accessory MLY10.241
Mar. 2013 / Rev. 1.2 DS-ML30.241-EN
All parameters are specified at 24V, 1.3A, 230Vac input, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
redundancy module
24-28V Standard unit
Redundancy module
www.pulspower.com Phone +49 89 9278 0
24V, 1.3A, S
P S
OWER UPPLY
100-240V Wide Range Input
NEC Class 2 Compliant
Adjustable Output Voltage
Efficiency up to 89.4%
Compact Design, Width only 22.5mm
Full Power between -10°C and +60°C
Large International Approval Package
3 Year Warranty
S - D
HORT FORM
Output voltage DC 24V
Adjustment range 24 - 28V
Output current 1.3A at 24V
1.1A at 28V
Output power 30W
Output ripple < 50mVpp
Input voltage AC 100-240V
Mains frequency 50-60Hz
AC Input current 0.54 / 0.3A
Power factor 0.52 / 0.49
AC Inrush current typ. 18 / 35A
DC Input 88-375Vdc
Efficiency 88.5 / 89.4%
Losses 4.1 / 3.7W
Temperature range -10°C to +70°C
Derating 0.8W/°C
Hold-up time typ. 31 / 141ms
Dimensions 22.5x75x91mm
Weight 140g / 0.31lb
M
ARKINGS
Ind. Cont. Eq. UL 508
Class I Div 2
Germany
ML30.241
P I
INGLE HASE NPUT
ATA
20Hz to 20MHz
-15% / +10%
±6%
at 120 / 230Vac
at 120 / 230Vac
peak value at
120 / 230Vac 40°C
and cold start
below 110Vdc
derating required
at 120 / 230Vac
at 120 / 230Vac
operational
+60 to +70°C
at 120 / 230Vac
WxHxD
UL 60950-1
Marine
NEC
Class 2
EMC, LVD, RoHS
1/23
