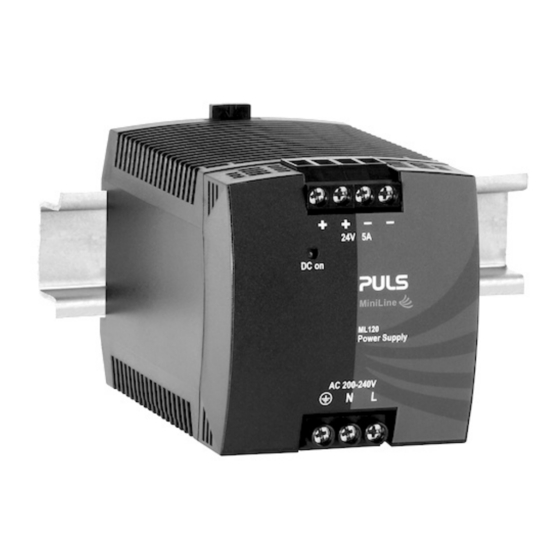

MiniLine-2
G
D
ENERAL
ESCRIPTION
The
MiniLine-2
series
requirements in the range from 15W to 120W. These
units in their rugged plastic housing and large screw
terminals are highly efficient, very compact, easy to
install and are extremely reliable. Besides the standard
24V power supplies, many other output voltages are
also available as well as units rated down to -40°C.
More DIN-Rail power supplies in rugged plastic housings
can be found in the MiniLine family which is equipped
with quick-connect spring-clamp terminals. These units
come in power ranges from 25W to 100W and a variety
of output voltages.
The ML120 units are highly immune against electrical
disturbances on the mains and provides reliable output
power. This offers superior protection for equipment
which is connected to the public mains network or is
exposed to a critical industrial environment.
Besides the cost optimized ML120.244, two additional
units
are
available
in
ML120.CLASS2 fulfills the NEC Class 2 requirements and
the ML120.241 is the standard product with an auto-
select 100-120/220-240V input.
The supplementary MiniLine-2 redundancy module
MLY10.241 allows building of redundant systems or
protecting against back-feeding voltages.
O
N
RDER
UMBERS
Power Supply
ML120.244
Accessory
MLY10.241
YRM2.DIODE
UF20.241
Apr. 2013 / Rev. 1.1 DS-ML120.244-EN
All parameters are specified at 24V, 5A, 230Vac input, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
covers
the
lower
power
the
ML120
series.
24V Standard unit
Redundancy module
Redundancy module
with alarm contacts
Buffer Module
www.pulspower.com Phone +49 89 9278 0
P
S
OWER
UPPLY
AC 200-240V Regional Input
Efficiency up to 90.3%
Compact Design, Width only 72.5mm
Full Power between -10°C and +60°C
Large International Approval Package
Cost / Performance Optimized
3 Year Warranty
S
-
HORT
FORM
Output voltage
Adjustment range
Output current
Output power
Output ripple
Input voltage
Mains frequency
AC Input current
Power factor
AC Inrush current
DC Input
Efficiency
Losses
Temperature range -10°C to +70°C
Derating
The
Hold-up time
Dimensions
Weight
M
ARKINGS
Ind. Cont. Eq.
UL 508, pending
Class I Div 2, pend.
Germany
ML120.244
24V, 5A, S
P
INGLE
HASE
D
ATA
DC 24V
24V
5A
120W
< 50mVpp
20Hz to 20MHz
AC 200-240V
-15% / +10%
50-60Hz
±6%
1.07A
0.54
typ. 31A
peak value at
230Vac 40°C and
cold start
-
90.3%
12.9W
operational
3W/°C
+60 to +70°C
typ. 35ms
72.5x75x103mm WxHxD
360g / 0.8lb
UL 60950-1
EMC, LVD, RoHS
pending
Marine, pending
I
NPUT
1/21
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Puls MiniLine-2 Series
Summary of Contents for Puls MiniLine-2 Series
- Page 1 ML120.244 24V, 5A, S MiniLine-2 INGLE HASE NPUT OWER UPPLY AC 200-240V Regional Input Efficiency up to 90.3% Compact Design, Width only 72.5mm Full Power between -10°C and +60°C Large International Approval Package Cost / Performance Optimized 3 Year Warranty ENERAL ESCRIPTION HORT...
-
Page 2: Table Of Contents
The information presented in this document is believed to be accurate and reliable and may change without notice. The housing is patent by PULS (US patent No US D442,923S). No part of this document may be reproduced or utilized in any form without permission in writing from the publisher. -
Page 3: Intended Use
ML120.244 24V, 5A, S MiniLine-2 INGLE HASE NPUT 1. I NTENDED This device is designed for installation in an enclosure and is intended for the general use such as in industrial control, office, communication, and instrumentation equipment. Do not use this power supply in equipment, where malfunction may cause severe personal injury or threaten human life. -
Page 4: Ac-Input
ML120.244 24V, 5A, S MiniLine-2 INGLE HASE NPUT 3. AC-I NPUT AC input nom. AC 200-240V -15% / +10% Allowed mains networks TN/ TT/ IT-mains AC input range 170-264Vac continuously allowed 0-170Vac no damage to the unit 264–300Vac < 0.5s Allowed voltage L or N to earth max. -
Page 5: Input Inrush Current
ML120.244 24V, 5A, S MiniLine-2 INGLE HASE NPUT 4. I NPUT NRUSH URRENT A NTC limits the input inrush current after turn-on of the input voltage. The inrush current is input voltage and ambient temperature dependent. The charging current into EMI suppression capacitors is disregarded in the first microseconds after switch-on. Inrush current max. -
Page 6: Output
ML120.244 24V, 5A, S MiniLine-2 INGLE HASE NPUT 6. O UTPUT Output voltage nom. Adjustment range min. fixed no adjustment included Factory setting 24.5V ±3%, at full load, cold unit Line regulation max. 10mV 85-264Vac Load regulation max. 100mV static value, 0A Ripple and noise voltage max. -
Page 7: Hold-Up Time
ML120.244 24V, 5A, S MiniLine-2 INGLE HASE NPUT 7. H Hold-up Time typ. 71ms at 24V, 2.5A, see Fig. 7-1 min. 60ms at 24V, 2.5A, see Fig. 7-1 typ. 35ms at 24V, 5A, see Fig. 7-1 min. 30ms at 24V, 5A, see Fig. 7-1 Note: At no load, the hold-up time can be up to several seconds. -
Page 8: Efficiency And Power Losses
ML120.244 24V, 5A, S MiniLine-2 INGLE HASE NPUT 8. E FFICIENCY AND OWER OSSES Efficiency typ. 90.3% at 24V, 5A (full load) Average efficiency 88.7% 25% at 1.25A, 25% at 2.5A, 25% at 3.75A. 25% at 5A Power losses typ. 0.8W at 0A typ. -
Page 9: Functional Diagram
ML120.244 24V, 5A, S MiniLine-2 INGLE HASE NPUT 9. F UNCTIONAL IAGRAM Fig. 9-1 Functional diagram Output Over- Voltage Protection Input Rectifier Input Fuse Power Output & & Converter Filter Inrush Input Filter Limiter Output Opto- Voltage coupler Regulator 10. F RONT IDE AND LEMENTS... -
Page 10: Terminals And Wiring
ML120.244 24V, 5A, S MiniLine-2 INGLE HASE NPUT 11. T ERMINALS AND IRING All terminals are easy to access when mounted on the panel. Input and output terminals are separated from each other (input below, output above) to help in error-free wiring. Input Output Type... -
Page 11: 13. Emc
Criterion A 70% of 200Vac 140Vac, 500ms Criterion A Voltage interruptions EN 61000-4-11 0Vac, 5000ms Criterion C Input voltage swells PULS internal standard 300Vac, 500ms Criterion A Powerful transients VDE 0160 over entire load range 750V, 1.3ms Criterion A Criterions: Power supply shows normal operation behavior within the defined limits. -
Page 12: Environment
ML120.244 24V, 5A, S MiniLine-2 INGLE HASE NPUT 14. E NVIRONMENT Operational temperature -10°C to +70°C (14°F to 158°F) reduce output power according Fig. 14-1 Storage temperature -40°C to +85°C (-40°F to 185°F) for storage and transportation Output de-rating 3W/°C 60-70°C (140°F to 158°F) Humidity 5 to 95% r.H. -
Page 13: Protection Features
ML120.244 24V, 5A, S MiniLine-2 INGLE HASE NPUT 15. P ROTECTION EATURES Output protection Electronically protected against overload, no-load and short-circuits Output over-voltage protection typ. 31Vdc In case of an internal power supply fault, a redundant max. 33Vdc circuit limits the maximum output voltage. The output shuts down and automatically attempts to restart. -
Page 14: Approvals
ML120.244 24V, 5A, S MiniLine-2 INGLE HASE NPUT 18. A PPROVALS EC Declaration of The CE mark indicates conformance with the Conformity - EMC directive 2004/108/EC, - Low-voltage directive (LVD) 2006/95/EC and the - RoHS directive 2011/65/EC. IEC 60950-1 2 Edition CB Scheme, pending... -
Page 15: Physical Dimensions And Weight
ML120.244 24V, 5A, S MiniLine-2 INGLE HASE NPUT 20. P HYSICAL IMENSIONS AND EIGHT Weight 360g / 0.8lb DIN-Rail Use 35mm DIN-rails according to EN 60715 or EN 50022 with a height of 7.5 or 15mm. The DIN-rail height must be added to the unit depth (103mm) to calculate the total required installation depth. -
Page 16: Accessory
ML120.244 24V, 5A, S MiniLine-2 INGLE HASE NPUT 21. A CCESSORY 21.1. B UF20.241 UFFER MODULE This buffer unit is a supplementary device for DC 24V power supplies. It delivers power to bridge typical mains failures or extends the hold-up time after turn-off of the AC power. In times when the power supply provides sufficient voltages, the buffer module stores energy in integrated electrolytic capacitors. -
Page 17: Application Notes
ML120.244 24V, 5A, S MiniLine-2 INGLE HASE NPUT 22. A PPLICATION OTES 22.1. P URRENT APABILITY The power supply can deliver peak currents up to several milliseconds. This helps to start current demanding loads. Loads such as solenoids, contactors and pneumatic modules often have a steady state coil and a pick-up coil. -
Page 18: Charging Of Batteries
ML120.244 24V, 5A, S MiniLine-2 INGLE HASE NPUT 22.3. C HARGING OF ATTERIES The power supply cannot be used to charge batteries since the output voltage is not adjustable and cannot be set to the required end-of-charge voltage. 22.4. E XTERNAL NPUT ROTECTION... -
Page 19: Parallel Use For Redundancy
ML120.244 24V, 5A, S MiniLine-2 INGLE HASE NPUT 22.6. P ARALLEL SE FOR EDUNDANCY Voltage Power supplies can be paralleled for redundancy to gain higher Monitor system availability. Redundant systems require a certain amount of extra power to support the load in case one power supply unit fails. Output Output IN 1... -
Page 20: Series Operation
ML120.244 24V, 5A, S MiniLine-2 INGLE HASE NPUT 22.9. S ERIES PERATION Unit A Power supplies of the exact same type can be connected in series for higher output voltages. It is possible to connect as many units in series as needed, providing the sum of the output voltage does not exceed 150Vdc. -
Page 21: Mounting Orientations
ML120.244 24V, 5A, S MiniLine-2 INGLE HASE NPUT 22.12. M OUNTING RIENTATIONS Mounting orientations other than input terminals on the bottom and output on the top require a reduction in continuous output power or a limitation in the maximum allowed ambient temperature. The amount of reduction influences the lifetime expectancy of the power supply.
