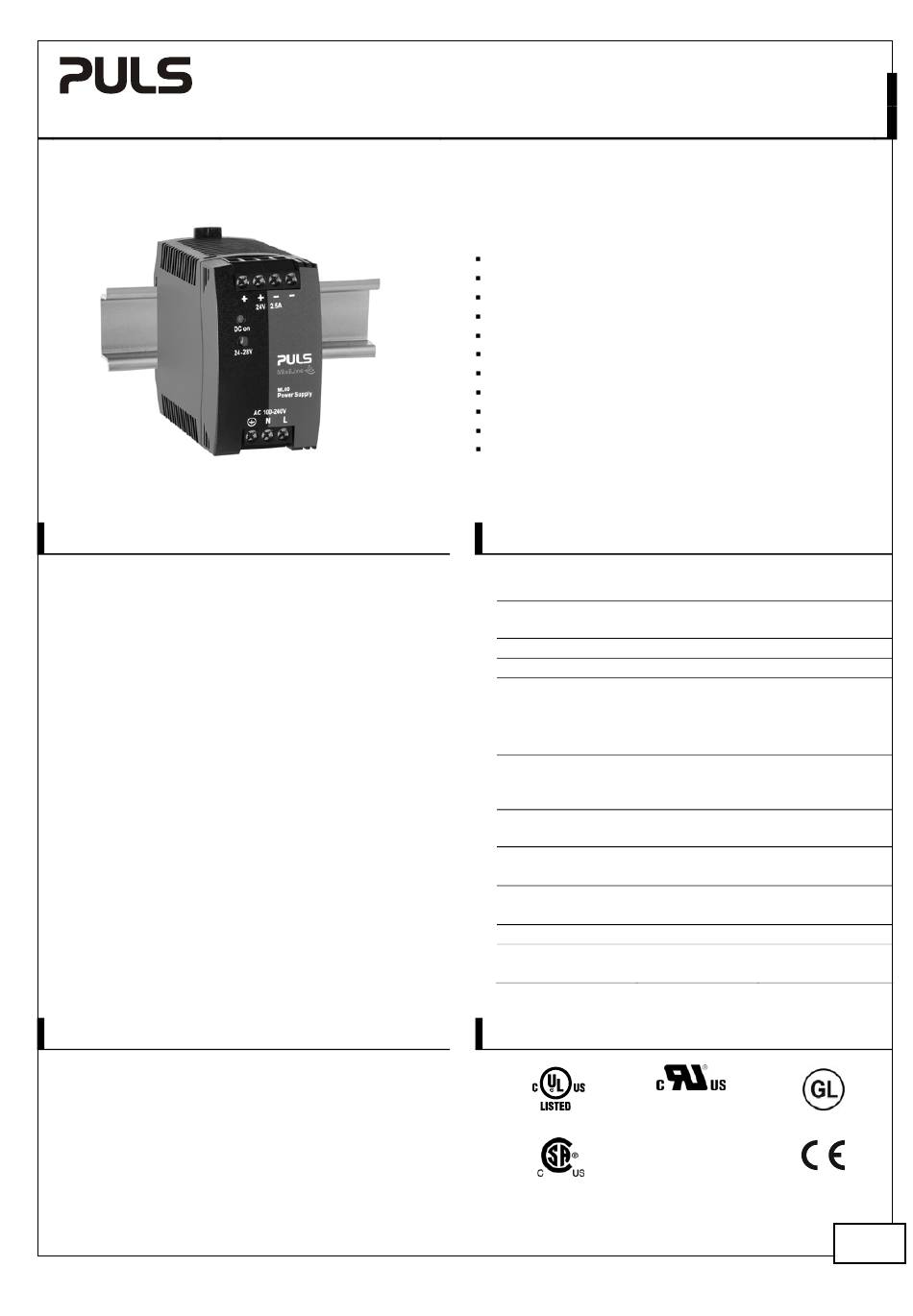

MiniLine-2
G D
ENERAL ESCRIPTION
A compact size, light weight, simple mounting onto the
DIN-rail and the utilization of only quality components
are what makes the MiniLine power supplies so easy to
use and install within seconds.
A rugged electrical and mechanical design as well as a
high immunity against electrical disturbances on the
mains provides reliable output power. This offers
superior protection for equipment which is connected
to the public mains network or is exposed to a critical
industrial environment.
The MiniLine series offers output voltages from 5 to
56Vdc and a power rating from 15W to 120W.
The specialty of the ML60.242 is the electronic inrush
current limitation and the suitability for very low
ambient temperatures. The unit is fully specified down
to -40°C.
The supplementary MiniLine decoupling diode module
MLY10.241 allows building of redundant systems or to
protect against back-feeding voltages.
O N
RDER UMBERS
Power Supply ML60.242
Accessory MLY10.241
UF20.241
ZM3.WALL
Nov. 2015 / Rev. 1.4 DS--ML60.242-EN
All parameters are specified at 24V, 2.5A, 230Vac 50Hz input, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
24-28V Standard unit
Redundancy Module
Buffer Module
Wall mount bracket
www.pulspower.com Phone +49 89 9278 0
24V, 2.5A, S
P S
OWER UPPLY
100-240V Wide Range Input
NEC Class 2 Compliant
Adjustable Output Voltage
Efficiency up to 90.4%
Low No-load Losses and Excellent Partial-load Efficiency
Compact Design, Width only 45mm
Electronic Inrush Current Limitation
Operation down to -40°C
Full Output Power up to +60°C
Large International Approval Package
3 Year Warranty
S - D
HORT FORM
Output voltage DC 24V
Adjustment range 24 - 28V
Output current 2.5A at 24V
2.1A at 28V
Output power 60W
Output ripple < 50mVpp
Input voltage AC 100-240V
Mains frequency 50-60Hz
AC Input current 1.05 / 0.66A
Power factor 0.54 / 0.44
AC Inrush current typ. 6A
DC Input 88-375Vdc
Efficiency 88.5 / 90.4%
Losses 7.8 / 6.4W
Temperature range -40°C to +70°C
Derating 1.5W/°C
Hold-up time typ. 24 / 107ms
Dimensions 45x75x91mm
Weight 250g / 0.55lb
M
ARKINGS
Ind. Cont. Eq. UL 508
Class I Div 2
Germany
ML60.242
P I
INGLE HASE NPUT
ATA
20Hz to 20MHz
-15% / +10%
±6%
at 120 / 230Vac
at 120 / 230Vac
input voltage
and temperature
independent
below 100Vdc
derating required
at 120 / 230Vac
at 120 / 230Vac
operational
+60 to +70°C
at 120 / 230Vac
WxHxD
UL 60950-1
Marine
NEC
Class 2
EMC, LVD
