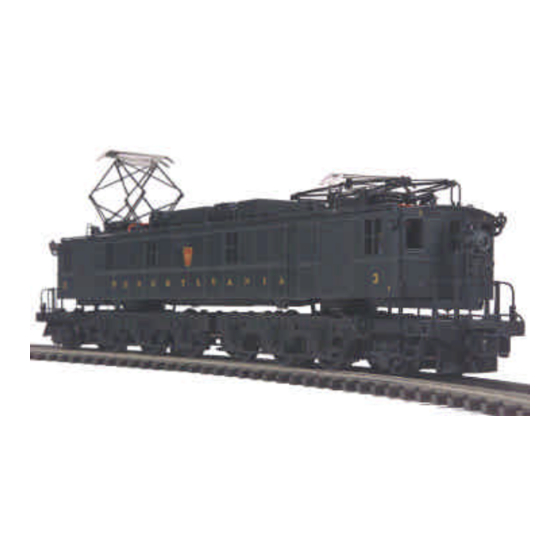

MTHTrains Premier FF-2 Electric Engine Operator's Manual
  1. Manuals
  2. Brands
  3. MTHTrains Manuals
  4. Toy
  5. Premier FF-2 Electric Engine
  6. Operator's manual

MTHTrains Premier FF-2 Electric Engine Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Compatibility
This engine will operate on any traditional
O-72 Gauge track system, including
M.T.H.'s RealTrax
traditional tubular track. It is also compatible
with most standard AC transformers. (See
page 19 for a complete list of compatible
transformers and wiring instructions.)

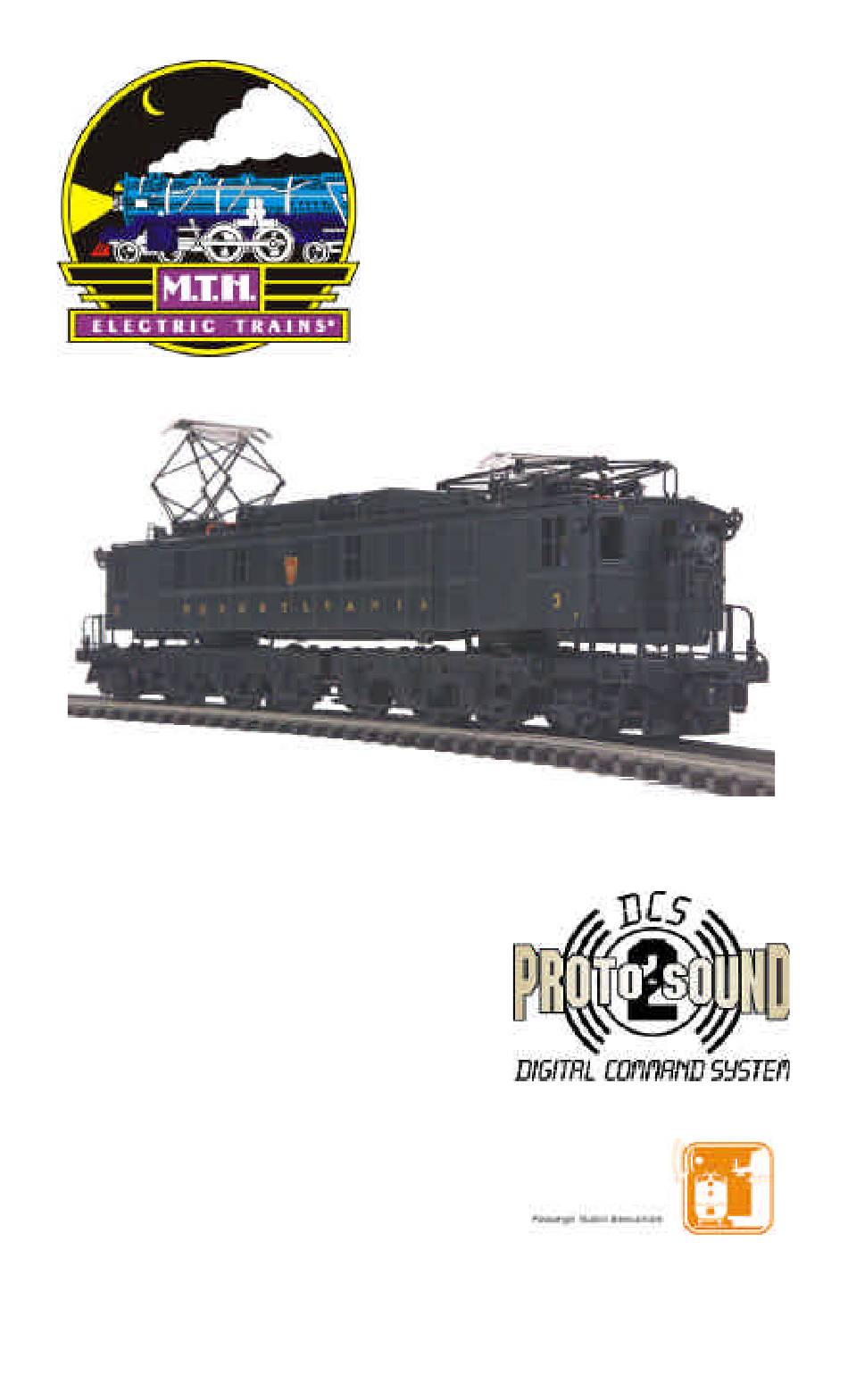

PLEASE READ BEFORE USE AND SAVE
Premier FF-2
Electric Engine
OPERATOR'S MANUAL
®
™
or ScaleTrax
or

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Premier FF-2 Electric Engine and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MTHTrains Premier FF-2 Electric Engine

Summary of Contents for MTHTrains Premier FF-2 Electric Engine

  • Page 1 Premier FF-2 Electric Engine OPERATOR’S MANUAL Compatibility This engine will operate on any traditional O-72 Gauge track system, including ® ™ M.T.H.’s RealTrax or ScaleTrax traditional tubular track. It is also compatible with most standard AC transformers. (See page 19 for a complete list of compatible transformers and wiring instructions.) PLEASE READ BEFORE USE AND SAVE...

  • Page 2: Table Of Contents

    Table of Contents Set Up Checklis t....................3 Lubrication.....................3 Checking The Battery................3 Basic Operation ....................4 Activating Features................4 Proto-Sound 2.0 Operating Instructions............6 Activating Proto-Sound 2.0 Conventional Mode Features....6 Passenger Sounds (PSA)..............Proto-Coupler® Operation..............8 Speed Control..................9 Locking Locomotive Into A Direction..........

  • Page 3: Set Up Checklist

    Set Up Checklist • Lubricate the locomotive • Check to see whether the battery needs to be charged for full sound effects • Apply power to run as described in the Basic Operating Section of this manual Lubrication DO NOT OVER OIL You should lubricate the engine to prevent it from squeaking.

  • Page 4: Basic Operation

    Basic Operation The Throttle knob controls how fast your train will travel. Turn the throttle knob up ½-way, until the engine and caboose lights shine bright. Put the engine into motion by pressing the Direction button on your transformer once. (hold it for approximately 1 second) If the engine does not begin to move as soon as you firmly press the Direction button, you may not have sent enough voltage to the track to make the train move.
  • Page 5 Manual Volume Control To adjust the volume of all sounds made by this engine, turn the master volume control knob located next to the fuel tank clockwise to increase the volume and counter-clockwise to decrease the volume. Proto-Sound 2.0 Volume Adjustment Knob Figure 2: Manual Volume Adjustment Knob Premier FF-2 Locomotive...

  • Page 6: Proto-Sound 2.0 Operating Instructions

    Proto-Sound 2.0 Operating Instructions This manual contains the operating instructions for Proto-Sound 2.0 in conventional mode only. Instructions for accessing DCS command mode features accompany the DCS Remote Control System equipment. Activating Proto-Sound 2.0 Conventional Mode Features Proto-Sound 2.0 features are activated by sequences of Bell and Horn button pushes described below.

  • Page 7: Passenger Sounds (Psa)

    Passenger Station Announcements (PSA) Your engine is equipped with a sound package of passenger station announcements that you can play when you pull into a station. Each sequence described below will play as long as it is left on, randomly generating sounds, but be sure to allow approximately 30 seconds between the button pushes described below to allow the PSA sufficient time to run through each sequence.

  • Page 8: Proto-Coupler® Operation

    Tips on Using PSA • You can terminate PSA at any time by turning off power to the track for 15 seconds. • You do not have to be in Forward to use PSA. At the conclusion of the full sequence, the train will pull away from the station in whatever direction you were going when you activated the feature.

  • Page 9: Speed Control

    Front Coupler: To fire the front coupler (if your engine has one), quickly tap the Bell button once followed by four quick taps of the Horn button, allowing approximately ½ second to lapse between each quick button press. The sound of the liftbar and air line depletion will play, and the knuckle will be released.

  • Page 10: Locking Locomotive Into A Direction

    Locking Locomotive Into A Direction You can lock your engine into a direction (forward, neutral, or reverse) so that it will not change directions. To do this, put the engine into the direction you want (or into neutral to lock it into neutral), run it at a very slow crawl (as slowly as it will move without halting), and quickly but firmly tap the Horn button once followed by three quick taps of the Bell button, allowing approximately ½...

  • Page 11: Maintenance

    Maintenance Lubricating and Greasing Instructions The engine should be well oiled and greased in order to run properly. Regularly lubricate all axles and linkage components and pickup rollers to prevent squeaking. Use light household oil, such as that found in M.T.H.'s maintenance kit.

  • Page 12: Cleaning The Wheels, Tires And Track

    Grease Idler Gears (G) Figure 4: Oiling Idler Gears Cleaning The Wheels, Tires and Track Periodically check the locomotive wheels and pickups for dirt and buildup, which can cause poor electrical contact and traction and prematurely wear out the neoprene traction tires.

  • Page 13: Traction Tire Replacement Instructions

    Traction Tire Replacement Instructions Your locomotive is equipped with two neoprene rubber traction tires on each powered truck block. While these tires are extremely durable, you may need to replace them at some point. First, remove the truck sides from the truck block by unscrewing the mounting screws as noted in Figure 3, then remove the 4 screws noted in Figure 5 which will release the truck frames from the truck block.

  • Page 14: Headlight Replacement Instructions

    Headlight Replacement Instructions The locomotive’s headlight is controlled by a constant voltage circuit in the engine. The headlight is replaceable when it burns out. To have bulbs replaced contact your local MTH Authorized Service Center. Self Charging Battery Back-Up The special NiCad 7-cell 8.4v self-charging battery recharges continuously during train operation and should last for up to five years.
  • Page 15 Battery Charger Port Figure 7: Battery Charger Port Disconnect Battery And Slide Out Of Bracket Figure 8: Removing The Battery Premier FF-2 Locomotive...

  • Page 16: Troubleshooting Proto-Sound® 2.0 Problems

    Troubleshooting Proto-Sound® 2.0 Problems Although Proto-Sound 2.0 has been designed and engineered for ease of use, you may have some questions during initial operation. The following table should answer most questions. If your problem cannot be resolved with this table, contact M.T.H. for assistance (telephone: 410-381-2580;...
  • Page 17 Cab Chatter Remedy Sometimes the Cab Chatter sounds Cab Chatter plays only in neutral. don’t play. Lock-out Remedy I can’t get the engine to run after I The engine is locked into the neutral power up the transformer. It sits still position.
  • Page 18 Remedy Once in PSA, the engine doesn’t go So that PSA effects can be as realistic into reverse. Proto-Sound 2.0 as possible, disables the reversing unit whenever PSA is enabled. This way the engine remains still at its stop as the operator cycles through the PSA sequences.

  • Page 19: Transformer Compatibility And Wiring Chart

    Transformer Compatibility and Wiring Chart Proto-Sound 2.0 is designed to work with most standard AC transformers. The chart below lists the many compatible transformers. Note that many of the operational commands described in these instructions require a bell button, so if your transformer does not have its own bell button, you should consider adding one to get the full benefit of the system.

  • Page 20: Additional Features Accessible Of Dcs Remote Control System

    Additional Features Accessible With The DCS Remote Control System (Additional equipment required) While conventional mode operation of a Proto-Sound 2.0 engine yields wonderfully realistic sound and several train control features, command mode operation allows the user to access a world of command functions never before accessible to O Gauge railroaders.

  • Page 21: Service & Warranty Information

    Service & Warranty Information How to Get Service Under the Terms of the Limited One-Year Warranty For warranty repair, follow the instructions below to obtain warranty service. First, e-mail, write, call or fax an Authorized M.T.H. Service Center in your area or M.T.H. Electric Trains to obtain Repair Authorization.
  • Page 22 AUTHORIZED SERVICE CENTER 7020 Columbia Gateway Dr. - Columbia, MD 21046 Information: 410-381-2580 Fax: 410-381-6122 www.mth-railking.com PARTICIPATING N.A.S.C. RETAILER LIST CANADA CATOCTIN MOUNTAIN TRAINS FAIRCHANCE PHARMACY & HOBBIES FAIRCHANCE TOY TRAIN WORKSHOP THURMONT 724-564-7817 CUMBERLAND 301-694-8331 613-833-8331 THE STATION NEW CUMBERLAND MICHIGAN THE TRAIN ROOM 717-774-7096...
  • Page 23 AUTHORIZED SERVICE CENTER 7020 Columbia Gateway Dr. - Columbia, MD 21046 Information: 410-381-2580 Fax: 410-381-6122 www.mth-railking.com PARTICIPATING A.S.C. RETAILER LIST DOLLHOUSES, TRAINS & FRANK'S TRAINS & HOBBIES CANADA MORE OLDSMAR TOY TRAIN WORKSHOP NOVATO 813-855-1041 CUMBERLAND 415-883-0388 613-833-8331 COLONIAL PHOTO & HOBBY TIN PLATE JUNCTION ORLANDO THE TRAIN ROOM...
  • Page 24 MAINE TREASURED TOYS AMERICANA STORE WHEELS, WINGS & THINGS SALEM TIVOLI LUDLOW 603-898-7224 845-757-4246 NEW JERSEY 207-532-6277 KROSS HARDWARE MARYLAND COUNTRY AND STUFF WEST BABYLON ANDOVER PLAZA HOBBY 631-669-3069 973-786-7086 CUMBERLAND 301-729-6424 NORTH CAROLINA COLUMBUS TRAIN STATION COLUMBUS THE ROUNDHOUSE & HOBBYTOWN U S A 609-518-1800 BACKSHOP...
  • Page 25 TRAINS-N- THINGS CHESTNUT TOYBOX WEST VIRGINIA NORTH CANTON PHILADELPHIA PATRICK'S TRAINS 330-499-1666 215-545-0455 WHEELING 304-232-0714 GRAND PACIFIC JUNCTION TOBY TYLER'S HOBBY OLMSTEAD FALLS CENTER WISCONSIN 440-235-4777 PITTSBURGH WOODCRAFTERS SHOP 412-653-5030 BURLINGTON RICK'S TOY TRAINS 262-763-5239 TOLEDO WILCOX GREENHOUSE & 419-478-0171 NURSERY SOMMERFELD'S TRAINS TITUSVILLE...
