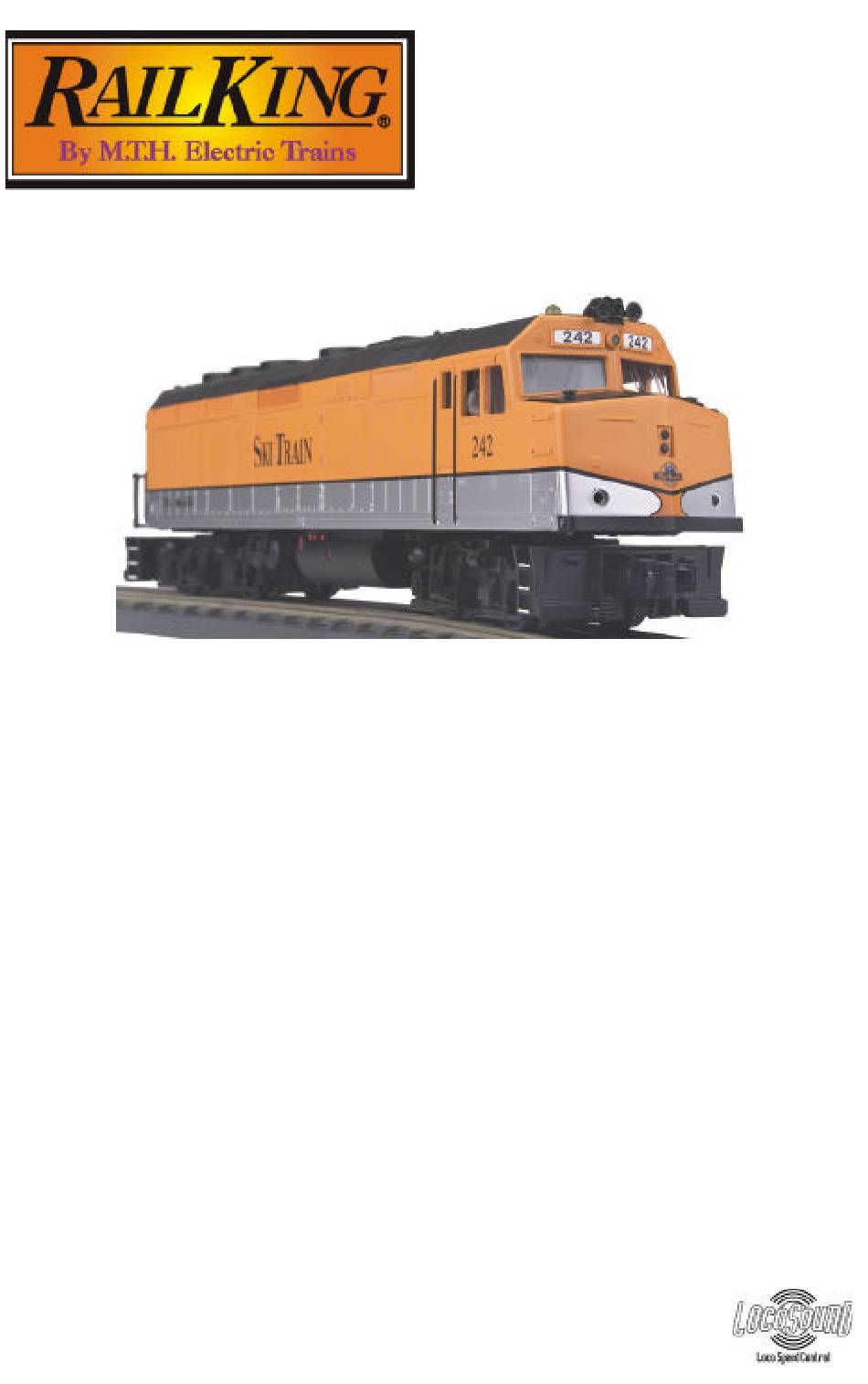

This RailKing F40PH set boasts a detailed ABS body and operates on O-31 track. This
RailKing Diesel Engine contains M.T.H.'s Loco-Sound™ sound and train control
system. The locomotive is easy to operate with any compatible standard AC transformer
(see the compatibility chart on page 14), and is completely compatible with most other
3-rail locomotives, rolling stock, and accessories.
Please read all the accompanying instructions carefully before setting up and operating
your locomotive.
F40PH Diesel
Engine
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MTHTrains 30-2266-0
Summary of Contents for MTHTrains 30-2266-0
- Page 1 F40PH Diesel Engine This RailKing F40PH set boasts a detailed ABS body and operates on O-31 track. This RailKing Diesel Engine contains M.T.H.’s Loco-Sound™ sound and train control system. The locomotive is easy to operate with any compatible standard AC transformer (see the compatibility chart on page 14), and is completely compatible with most other 3-rail locomotives, rolling stock, and accessories.
-
Page 2: Table Of Contents
Table of Contents Initial Lubrication Basic Operation Throttle Operation Buttons Speed Control Direction Lock Proto-Cast and Proto-Dispatch Volume Control Maintenance Lubrication and Greasing Instructions Cleaning the Wheels, Tires and Track Locomotive Traction Tire Replacement Locomotive Light Bulb Replacement Troubleshooting Compatibility Transformer Compatibility Chart Safety Precautions Service and Warranty Information... -
Page 3: Initial Lubrication
Initial Lubrication Although the engine was lubricated at the factory, it is important that you lubricate the chassis before operation. Lightly grease the outside idler and drive gears marked “G” in Fig. 3 on page 9 to prevent them from squeaking. Use light household oil and follow the lubrication points marked “L”... -
Page 4: Basic Operation
Basic Operation Throttle – Throttle up the power to your track. Give enough power so that the engine’s headlight shines brightly. Then put the engine into motion by either firmly pressing the Direction button on your transformer or remote once or dropping and advancing the throttle to put the engine in forward. -
Page 5: Speed Control
Speed Control: M.T.H. engines equipped with Loco-Sound have speed control capabilities that allow the engine to maintain a constant speed up and down grades and around curves, much like an automobile cruise control. You can add or drop cars on the run, and the engine will maintain the speed you set. While the engine is programmed to start with the speed control feature activated, you can opt to turn it off. -
Page 6: Proto-Cast And Proto-Dispatch
Proto-Cast and Proto-Dispatch: When used with the RailKing Remote Lock-on (sold separately), ™ ™ Loco-Sound-equipped engines gain Proto-Cast and Proto-Dispatch features. Proto-Cast: This feature allows you to play audio recordings through your engine’s speakers. You must supply the audio source (a small portable is sufficient) and a male-to-male mini cable (1/8”... -
Page 7: Volume Control
Manual Volume Control – To adjust the volume of all sounds made by this engine, turn the master volume control knob located under the tender clockwise to increase the volume and counter-clockwise to decrease the volume (see Fig. 1 ). Loco-Sound Volume Adjustment Knob Figure 1. -
Page 8: Maintenance
Maintenance: Lubrication and Greasing Instructions The engine should be oiled and greased in order to run properly. You should regularly lubricate all outside idler gears and pickup rollers to prevent them from squeaking. Use light household oil and follow the lubrication points marked “L”... - Page 9 5. Repeat the procedure for the other motor and truck 6. Reassemble the chassis and body, being careful that the wires are not caught between the body and chassis, as this can lead to a short that may damage the electronics beyond repair.
-
Page 10: Cleaning The Wheels, Tires And Track
Cleaning the Wheels, Tires and Track Periodically check the locomotive wheels and pickups for dirt and buildup, which can cause poor electrical contact and traction as well as prematurely wear out the neoprene traction tires. Wheels and tires can be cleaned using denatured alcohol (not rubbing alcohol), which can be found in home improvement stores, applied with a cotton swab. -
Page 11: Locomotive Light Bulb Replacement
2. Slip the new tire onto the wheel. You may find it useful to use two small flathead screwdrivers to stretch the tire over the wheel. 3. If you twist the tire while stretching it over the wheel, you will need to remove and reinstall the tire. -
Page 12: Troubleshooting
™ Troubleshooting Loco-Sound Problems Although Loco-Sound has been designed and engineered for ease of use, you may have some questions during initial operation. The following table should answer most questions. If your problem cannot be resolved with this table, contact M.T.H. for assistance (telephone: 410-381-2580; fax: 410-423-0009; service@mth-railking.com, 7020 Columbia Gateway Drive, Columbia MD Starting Up Remedy... -
Page 13: Compatibility
Volume Remedy Loco-Sound volume is set too high. The sounds seem distorted, especially Turn the volume control knob on the when the whistle or bell is activated. bottom of the chassis counter- clockwise to reduce the volume. Compatibility This engine will operate on any traditional O-31 or larger O Gauge track ®... -
Page 14: Transformer Compatibility Chart
Transformer Compatibility and Wiring Chart Note that many of the operational commands described in these instructions require a bell button, so if your transformer does not have its own bell button, you should consider adding one to get the full benefit of the system. Transformer Min/Max. -
Page 15: Safety Precautions
CAUTION: Electrically Operated Product: Not recommended for children under 10 years of age. M.T.H. recommends adult supervision with children ages 10 - 16. As with all electric products, precautions should be observed during handling and use to reduce the risk of electric shock. WARNING: When using electrical products, basic safety precautions should be followed including the following: Read this manual thoroughly before using this device. -
Page 16: Service And Warranty Information
Service & Warranty Information How to Get Service Under the Terms of the Limited One-Year Warranty For warranty repair, do not return your product to the place of purchase. Instead, follow the instructions below to obtain warranty service as our dealer network is not prepared to service the product under the terms of this warranty.
