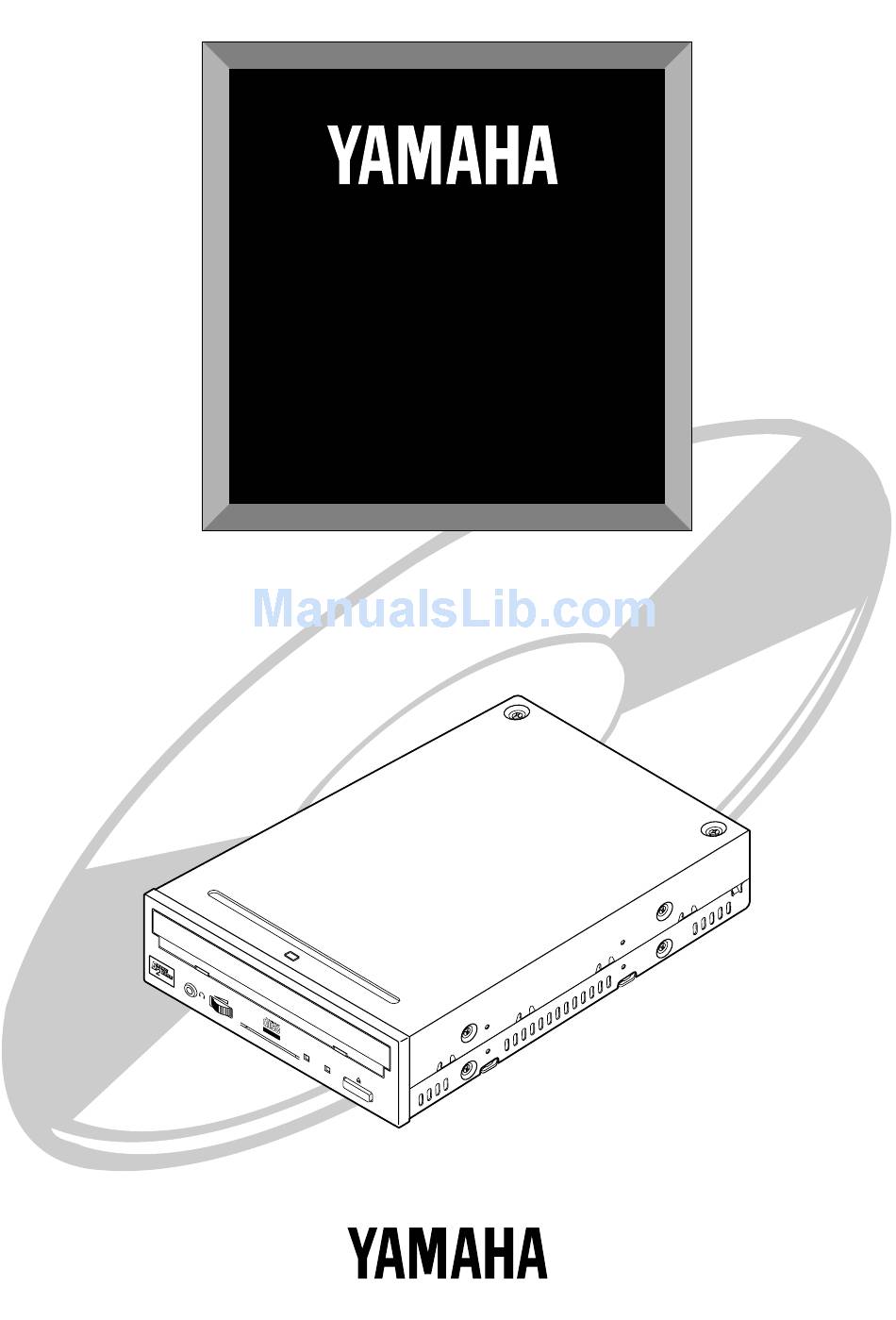

- Page 1 CDR200t SERIES User Guide Guide de I’utilisateur Bedienungsanleitung D I S I T E...
- Page 2 If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Systems Technology, Inc. 100 Century Center Court, San Jose, CA95112, U.S.A.
- Page 3 Laser Diode Properties Material : GaAlAs Wavelength : 780-790 nm Emission Duration : Continuous Laser Output Power : Less than 44.6 W* his output is value measured at a distance 200mm from the objective lens surface on the optical pick-up block. ANSI Class : Class 1 CLASS 1 LASER PRODUCT LASER KLASSE 1 PRODUKT...
- Page 4 • The temperature where CDR200t is located should be between 5ºC and 40ºC (41ºF – 104ºF), when used in a fan-cooled system. • Do not disassemble the CDR200t cover to reduce the risk of electric shock. • Always remove the disc before transporting CDR200t.
- Page 5 • CDR200t contains no user serviceable parts. Refer all servicing to qualified personnel. • If any of the following should occur, CDR200t should be serviced by qualified personnel: Metal objects or liquids get inside CDR200t. CDR200t does not operate normally or a marked change in performance is noticed.
-
Page 6: Table Of Contents
For an IBM-PC computer with DOS or Windows ... 3 For a Macintosh computer... 3 About Discs ... 4 Chapter 2 - Installing the Yamaha CDR200t Drive... 5 CDR200t drive settings ... 5 Cable Connection ... 8 Chapter 3 - Operation ... 10 Front Panel... -
Page 7: Introduction
The CDR200t can both record and read seven different formats: CD- ROM, CD-ROM XA, CD-I, CD-DA, CD-Bridge (multisession), CD- Extra, and Video CD. The CDR200t is also equipped with an analog audio output terminal (headphones) for CD-DA. SCSI 2 for High-Volume, High-Speed Data Transfer The CDR200t features SCSI 2, the second generation SCSI interface for connecting computers and peripheral devices. -
Page 8: Orange Book Compatible Recording
Introduction Orange Book Compatible Recording Track at Once In this mode, data can be recorded to disc one track at a time. Discs recorded in this mode cannot be played in CD players or CD-ROM drives other than the CD-R drive until the session is closed. Multisession In this mode, data can be recorded to disc in stages (one session at a time). -
Page 9: Chapter 1 - System Configuration
We recommend the following: Adaptec SCSI cards: AHA-2940 (PCI), AHA-284x (VL), AHA-2740 (EISA), AHA-154x (ISA), etc. Yamaha CDR200t is a “SCSI” device. You will need to install a SCSI card and some mastering (writing) software in your host computer to connect the CDR200t. -
Page 10: About Discs
Chapter 1 - System Configuration About Discs CD-R Discs On the CDR200t, you can use conventional CD-R discs that conform to the Recordable Compact Disc Systems Part II (Orange Book). Yamaha recommends the following Yamaha CD-R discs: > CDM12Y63 > CDM12Y74 >... -
Page 11: Chapter 2 - Installing The Yamaha Cdr200T Drive
Chapter 2 - Installing the Yamaha CDR200t Drive Chapter 2 - Installing the Yamaha CDR200t Drive CDR200t drive settings Before installing the CDR drive into your computer, you will need to set the following jumpers. You set these jumpers by inserting jumper connectors into the jumper switch located on the rear panel of the CDR drive switch. - Page 12 Usually, “7” is reserved for the SCSI card ID number, and “0” is reserved for the first SCSI device in the chain. Use a number between 1 and 6 for the CDR200t. Refer to the diagram below for more information on setting the SCSI ID number. The factory set ID number is “3”.
- Page 13 The terminator setting indicates whether or not this device is the last connected SCSI device. Terminator ON (with a jumper) — Use this setting if the CDR200t is the last device in the internal SCSI daisy-chain. Terminator OFF (without a jumper) —...
-
Page 14: Cable Connection
Chapter 2 - Installing the Yamaha CDR200t Drive Block size setting Block size ON (with a jumper) — Block Size is set to 512Byte/sector. This function is valid only for workstations, such as those that run UNIX. Block size OFF (without a jumper) —... - Page 15 Chapter 2 - Installing the Yamaha CDR200t Drive Audio output cable Connect an audio output cable to the AUDIO OUT connector in the lower left corner of the rear panel. Make sure that the projection of the connector is facing upward.
-
Page 16: Chapter 3 - Operation
This control adjusts the volume level of the headphone output. Rotat- ing the control clockwise will increase the volume level. 4 ON/DISC LED This indicator lights up in orange when the CDR200t is powered on, and lights up in green when the CDR200t contains a disc. 5 READ/WRITE LED This indicator lights up in green when data is being read, and flashes... -
Page 17: Loading A Disc
Loading a Disc 1. Press the eject button to open the tray. 2. Carefully place the disc, label-side up, on the disc tray. 3. Press the disc tray softly or press the eject button again to close the disc tray. Chapter 3 - Operation... -
Page 18: Ejecting The Disc
Press the eject button to eject the disc. Note: You cannot eject the disc if the SCSI command prohibits the eject operation while the CDR200t is reading data. Caution: Be sure to remove the disc after it is completely ejected. (Trying to remove the disc before it is completely ejected may cause the drive to malfunction.) -
Page 19: Troubleshooting
Troubleshooting If CDR200t is not performing as expected, look up the symptoms in the following table, then see what to do. Symptoms The power to the CDR200t is off The power to the computer is off The CDR200t is not recognized by the computer. -
Page 20: Appendix
Appendix Specifications Interface Data Capacity Record/Read Speed Data Transfer Rate Burst Transfer Rate Buffer Size Access Speed Installation Disc Loading Audio Out (normal speed) Power Consumption Power Supply Environment Dimensions (WxHxD) Weight Rear Panel SCSI2/Power Supply ID Selector Audio Out Specifications are subject to change without prior notice. -
Page 21: Front Panel Indicator Key
Front Panel Indicator Key on: green flashing: green on: orange flashing: orange Status Reset Ready (no disc) Inserting disc Ejecting disc Ready (disc inserted) Seeking Preparing to write Writing Writing (test mode) Playback Error occurred — off ON/DISC Read/Write — —... - Page 22 YAMAHA CORPORATION Electronic Systems Division VY75970-1...
