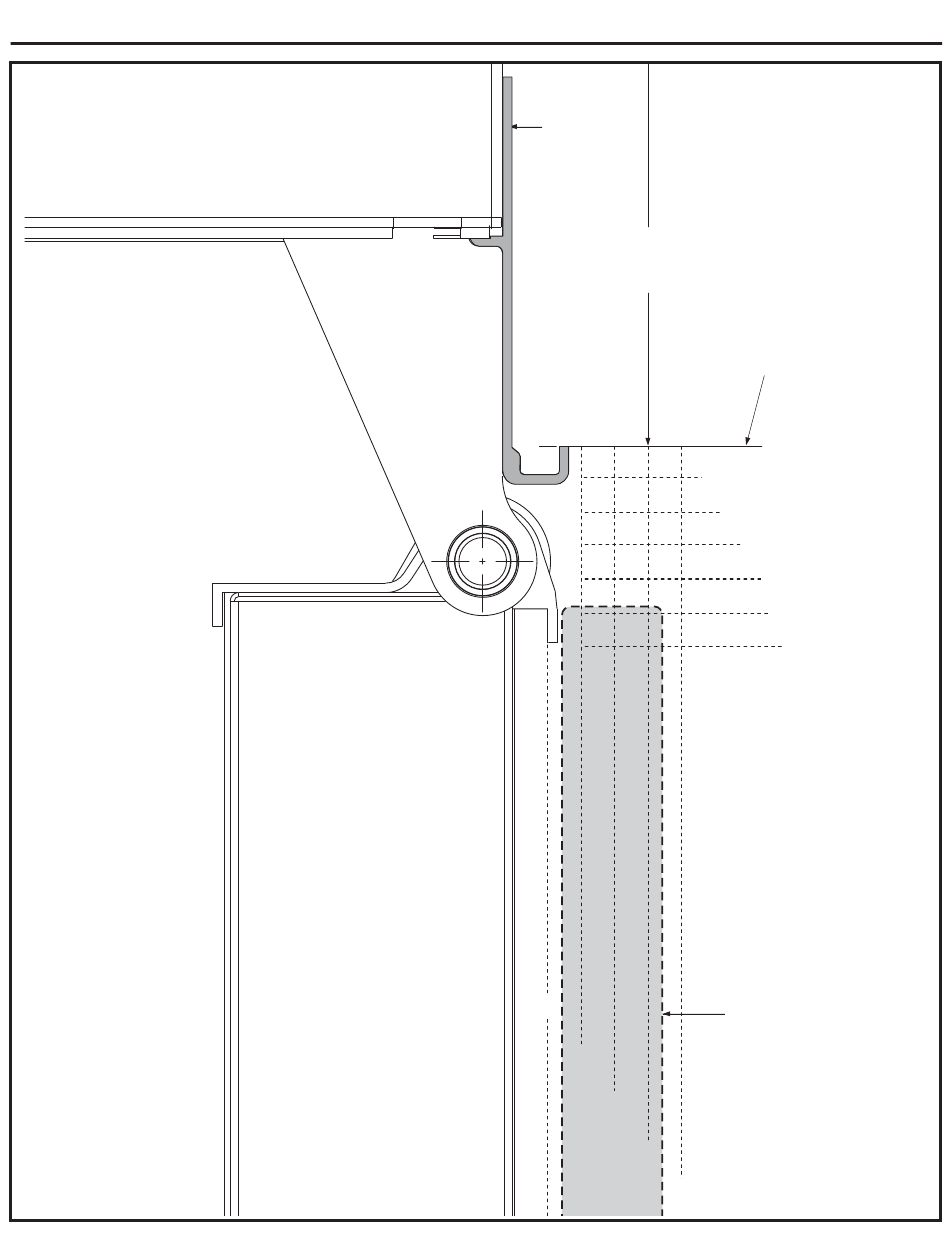

Top View
90° DOOR SWING
(Standard
Installation Only)
Scale 1:1
Design Guide
Refrigerator
or Freezer
Door
Case Trim
23-7/8"
From Rear of
Unit
1/4"
1/2"
3/4"
1"
12
Frameless Cabinets:
The case trim overlaps
cabinets at the top and sides.
Therefore, frameless cabinets
may require filler strips
to prevent interference
with cabinet door swing.
The opening must allow
for filler strips.
Cabinet Front
1/4"
1/2"
3/4"
1"
1-1/4"
1-1/2"
3/4" Overlay
Panel
(Nominal Size)
1-1/4"
