Q-See QR40198-403 Quick Installation Manual

Q-See QR40198-403 Quick Installation Manual

19” lcd observation system with built-in 8 channel network dvr, h.264 compression and 4 color ccd camera kits

Advertisement

Quick Links

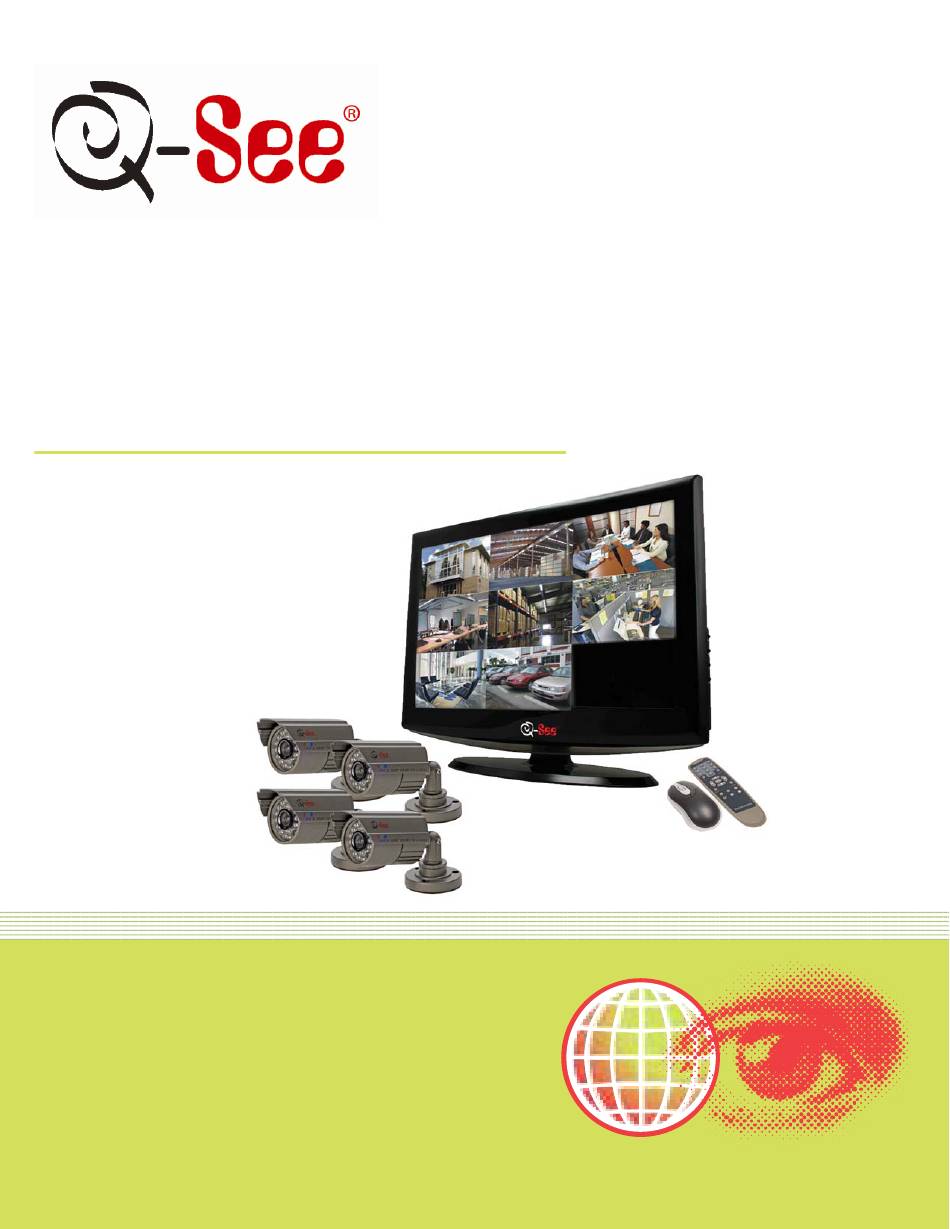

Quick Installation Guide
19" LCD Observation System
With Built-in 8 Channel Network DVR,
H.264 Compression and
4 Color CCD Camera Kits
M
M
O
O
D
D
E
E
L
L
Q
Q
R
R
4
4
0
0
1
1
9
9
8
8
-
-
4
4
0
0
3
3

Advertisement

loading
Need help?

Need help?

Do you have a question about the QR40198-403 and is the answer not in the manual?

Questions and answers

Summary of Contents for Q-See QR40198-403

  • Page 1 Quick Installation Guide 19” LCD Observation System With Built-in 8 Channel Network DVR, H.264 Compression and 4 Color CCD Camera Kits...
  • Page 2: Part 1 - Package Contents

    Q-SEE QUICK INSTALLATION GUIDE PART 1 - PACKAGE CONTENTS: 4 - Color CCD Cameras with Stands 19” LCD Pre-Installed User’s 2 – QSDS14273 (6mm) Observation System Hard Drive 2 – QSDS14273W (3.6mm) Manual QR40198 Power Supply & Power Supply Camera Cables...
  • Page 3 Q-SEE QUICK INSTALLATION GUIDE PART 2 - OBSERVATION SYTEM CAMERA AND POWER CONNECTIONS Please note that it is STRONGLY recommended to use a surge protector that is UL-1449 rated. Look for a clamping voltage of 330 or lower, a Joule rating of at least 400 and a response time of 10 nanoseconds or less.
  • Page 4 Q-SEE QUICK INSTALLATION GUIDE PART 3 - OBSERVATION SYSTEM CONTROLS: FRONT PANEL Buttons/ Item Marks Functions Indicators ON/OFF ON/OFF Turns the screen on or off. MENU MENU Opens the Main Menu screen. Move up Down DOWN Move Down PART 4 - ACCESSING THE DVR MENUS Push MENU from the DVR front panel, or remote.
  • Page 5: Part 6 - To Start Recording

    Q-SEE QUICK INSTALLATION GUIDE PART 5 - SETTING UP CAMERAS FOR VIEWING AND RECORDING From the Main menu, select CAMERA. Here you can setup the name display (up to 8 characters) and position of each channel (cameras). Select COLOR SETUP to adjust the image brightness, saturation, contrast and hue settings for each channel (camera).
  • Page 6 Q-SEE QUICK INSTALLATION GUIDE Manual Recording: From the Record Setup screen set the Rec Mode to “ALWAYS”. Your DVR will continuously record and separate files will be created with the Pack Time intervals you selected. Time Schedule Recording: From the Record Setup screen, set the Rec Mode to “TIME SCHEDULE RECORD” and click “SCHEDULE” in green. This will display the Schedule menu (see below image).
  • Page 7 Q-SEE QUICK INSTALLATION GUIDE Next, click on the MD AREA SETUP button, which will display the picture on the left. This option allows you to select the area you want to be sensitive to motion. The area in red is sensitive to motion. You can set this area by using the mouse or REV, FWD, and SEL keys on the front panel.
  • Page 8 Q-SEE QUICK INSTALLATION GUIDE PART 8 - BACKING UP THE VIDEO ON THE DVR Attach a USB flash drive or USB hard drive to the USB backup port and follow the instructions in Part 8 to go to the File List in the Search menu.
  • Page 9 Q-SEE QUICK INSTALLATION GUIDE Questions or Comments? Contact Us: Mailing Address: Customer Service: DPS Inc. Phone: 877-998-3440 x 538 8015 E. Crystal Dr. Email: cs@dpsi-usa.com Anaheim, CA 92807 Live Chat from our Website Website: Tech Support: http://www.q-see.com Phone: 877-998-3440 x 539 Fax: Email: ts@dpsi-usa.com...
