Summary of Contents for Q-See QR4174-411

  • Page 1: Quick Installation Guide

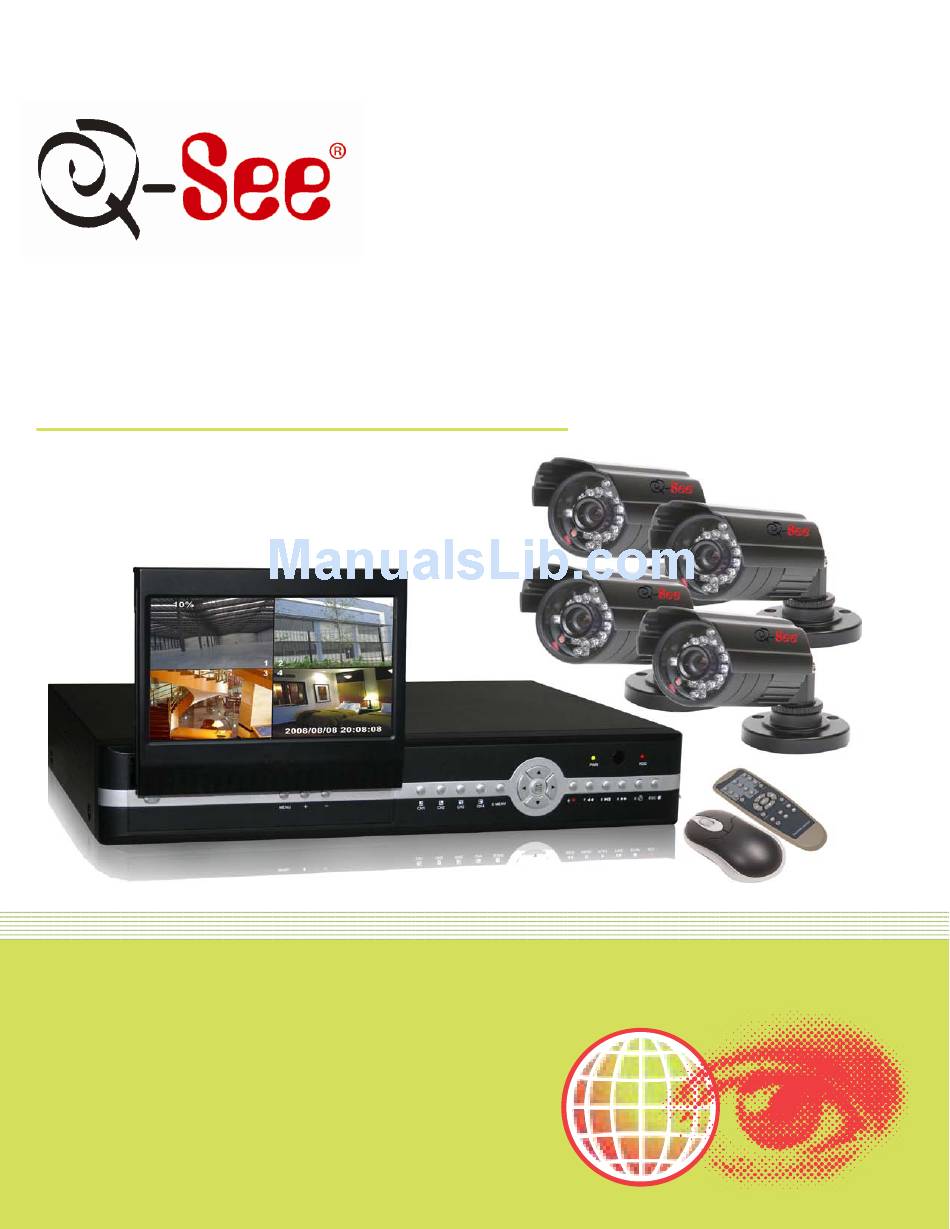

    Quick Installation Guide 4 Channel H.264 Compression DVR with Built-in Retractable 7” LCD Display Screen, (CIF) Real-Time Recording and 4 Color CMOS Camera Kits...
  • Page 2: Part 1 - Package Contents

    Q-SEE QUICK INSTALLATION GUIDE PART 1 - PACKAGE CONTENTS: QSDR74RTS DVR 4 - Color CMOS Cameras with Stands Pre-Installed w/Built-in Retractable User’s (2) QSM1424C (6mm Lens) Hard Drive (2) QSM1424W (3.6mm Lens) 7” LCD Display Screen Manual Power Supply &...
  • Page 3 Q-SEE QUICK INSTALLATION GUIDE PART 2 - DVR CAMERA AND POWER CONNECTIONS Please note that it is STRONGLY recommended to use a surge protector that is UL-1449 rated. Please note that it is STRONGLY recommended to use a surge protector that is UL-1449 rated.
  • Page 4: Part 3 - Dvr Controls: Front Panel

    Q-SEE QUICK INSTALLATION GUIDE PART 3 - DVR CONTROLS: FRONT PANEL 15. Select/Edit/Right 1. Enter/Exit Display Screen 8. Menu/Escape/Left 16. Reverse/PTZ Focus 2. 7” LCD Screen for Monitoring 9. Enter or Exit PTZ 17. Pause/Auto Sequence 3. Show Menu 10. Up Button 18.
  • Page 5: Part 6 - To Start Recording

    Q-SEE QUICK INSTALLATION GUIDE PART 5 - SETTING UP CAMERAS FOR VIEWING AND RECORDING From the Main menu, select CAMERA. Here you can setup the name display (up to 8 characters) and position of each channel (cameras). Select COLOR SETUP to adjust the image brightness, saturation, contrast and hue settings for each channel (camera).
  • Page 6 Q-SEE QUICK INSTALLATION GUIDE Grid Explanation: Red = Alarm (motion detection) recording Green = General (time schedule) recording Transparent = No recording Blue = The channel and date selected. Manual Recording: From the Record Setup screen set the Rec Mode to “ALWAYS”. Your DVR will continuously record and separate files will be created with the Pack Time intervals you selected.
  • Page 7 Q-SEE QUICK INSTALLATION GUIDE The Motion detection Menu has three sections, including Channel Status, Sensitivity and Motion area. STATUS: This option allows you enable motion detection on any channel. SENSITIVITY: This option allows you to set sensitivity level of motion detection from 1 to 4, with 4 being the highest.
  • Page 8 Q-SEE QUICK INSTALLATION GUIDE File List: On the Video search menu mode, click File list to display the sub-menu shown in the picture on the left. This option will allow you to view all of the available files by channel and type (all, normal, or alarm).
  • Page 9 Q-SEE QUICK INSTALLATION GUIDE Questions or Comments? Please contact us using the following methods with questions about your Q-See product. Q-See Products 8015 E. Crystal Dr. Anaheim, CA 92807 Email: Customer Service cs@dpsi-usa.com Technical Support ts@dpsi-usa.com Online live web chat visit: www.q-see.com...
