- Page 1 PX7A Multi-Lane Terminal PAX TECHNOLOGY LIMITED...

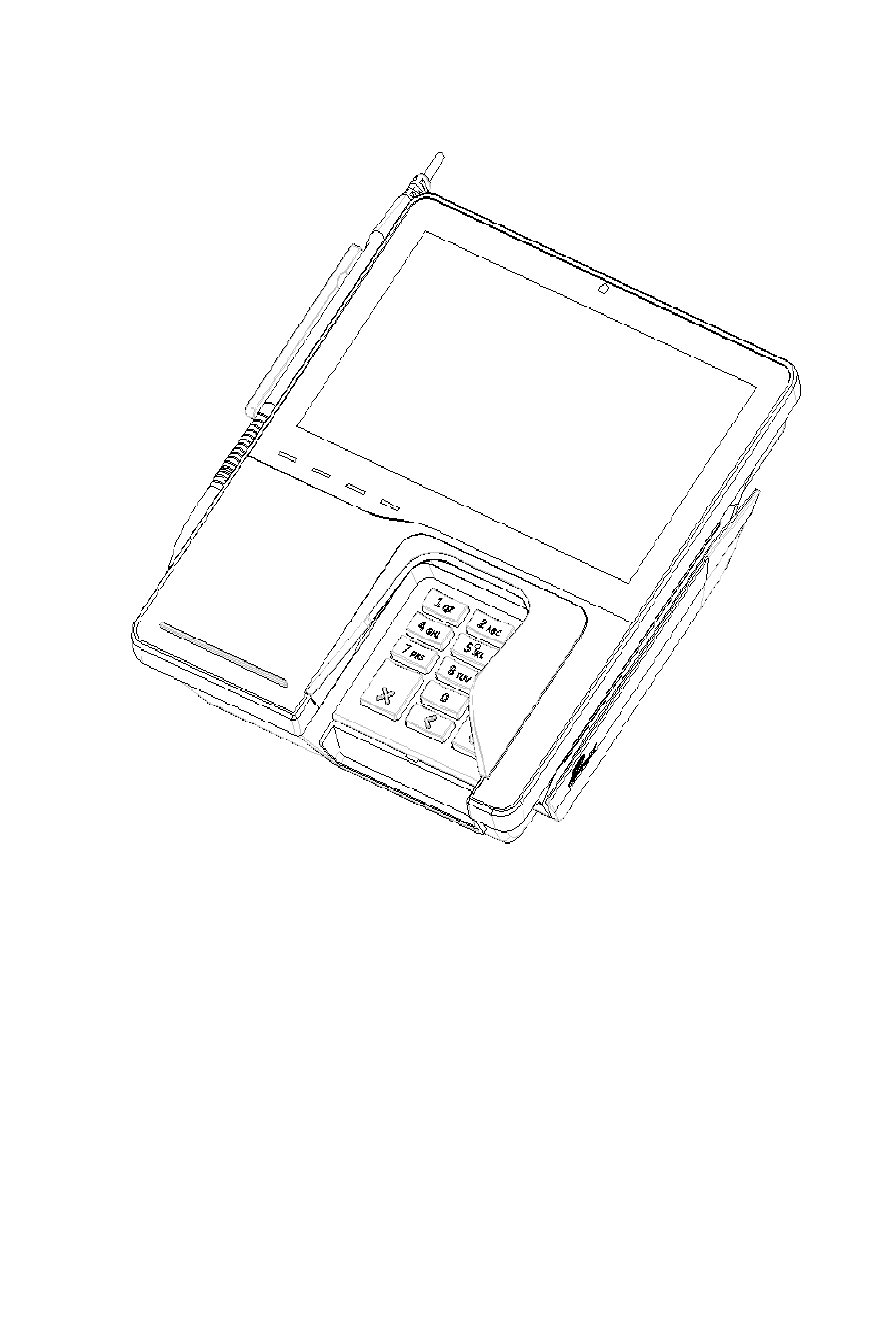

- Page 2 1.Product Description Top view Bottom View...
- Page 3 SAM Slots View PORTS View...
- Page 4 2.Installation Recommend the designated fixture for PX7A and fix firmly.. 2） SAM Card and SD Card Installation： Take off the Communications Module which is at the bottom of the terminal and insert the SAM Card or SD Card in the corresponding card slot respectively and set back the Communications Module. Connection to outer facility: Insert the Ethernet plug into the LAN socket of PX7A.
- Page 5 Power Adapter: Input: 100～240VAC，50Hz/60Hz, 0.6 A Output: 9 VDC, 1 A Working Environment: Temperrature:0℃～50℃(32℉~122℉) R.H.: 10%～93% (non-condense) Storage Environment: Temperrature: -20℃～60℃(-4℉~158℉) R.H.5%～90% (non‐condense) Dimensions: 200mm×185mm×44mm (L×W×H) Weight: 741g optional： Contactless card reader 5.Notice at Installation and Use Adopt a power socket with fuse and well-grounded. No use of broken power cord or power adapter.
- Page 6 Table：PX7A PIN-entry observation corridors v.s. PIN protection methods Observation Corridors Method Cashier Customers Customers On-Site Remote in Queue Elsewhere Camera Cameras PX7A in Check-Stand with shield PX7A on Adjustable Stand Post Customer Instruction Note *Customer instruction methods are less repeatable and therefore should be used in combination with other methods.
- Page 7 licence. L'exploitation est autorisée aux deux conditions suivantes: 1) l'appareil ne doit pas produire de brouillage, et 2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter, except tested built-in radios.
