PAX A920 QUICK SETUP GUIDE

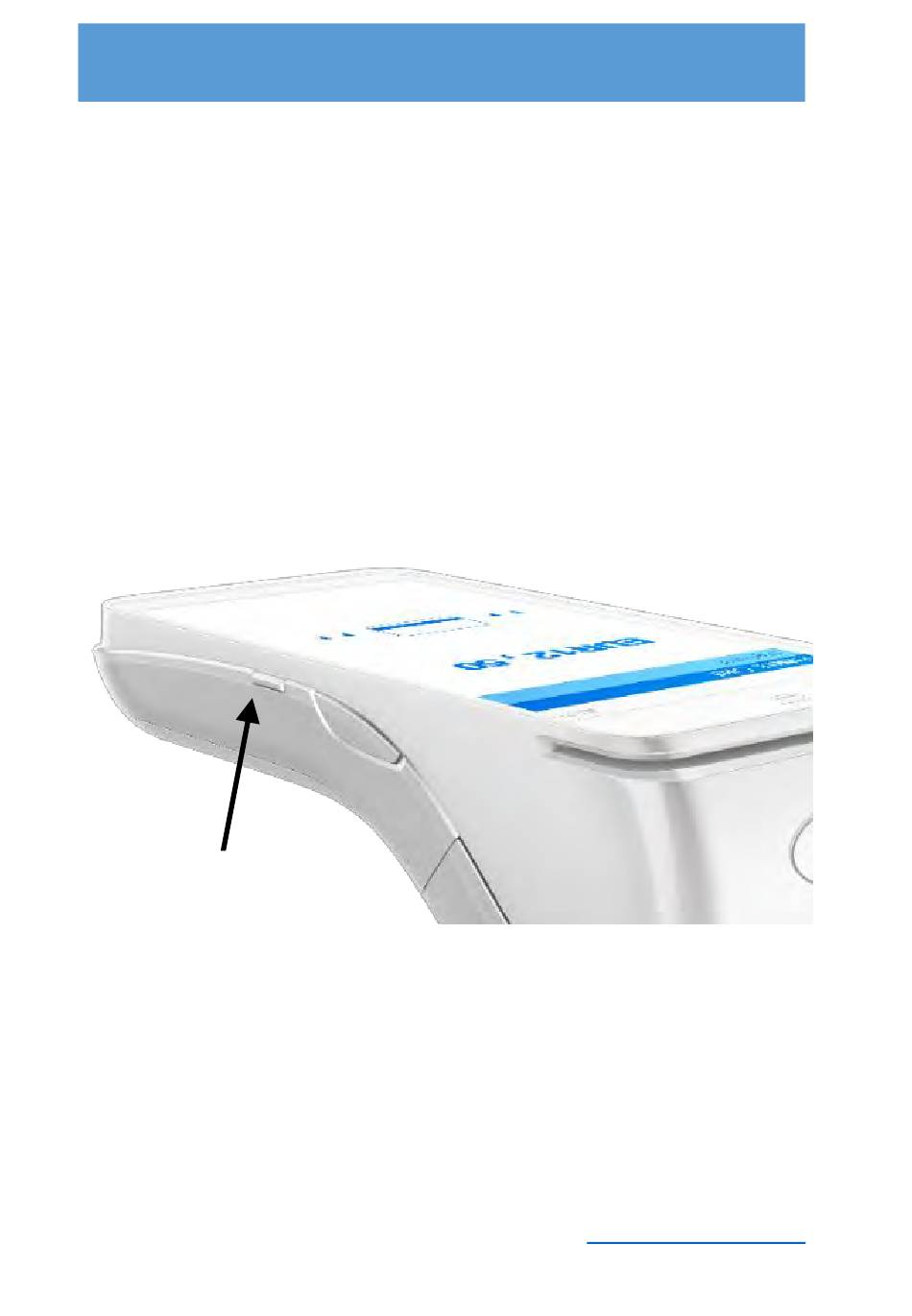

5. A920 Power On/Off
Power up or power off the terminal by
pressing and holding the small rectangle
button on the right side of the terminal for
2-4 seconds and then release.
Power Button
20171020 v1.3
9
PAX Technology®
support@pax.us
(877) 859-0099
www.pax.us
