Wells MOD200TDM/AF Owner's Manual

Wells MOD200TDM/AF Owner's Manual

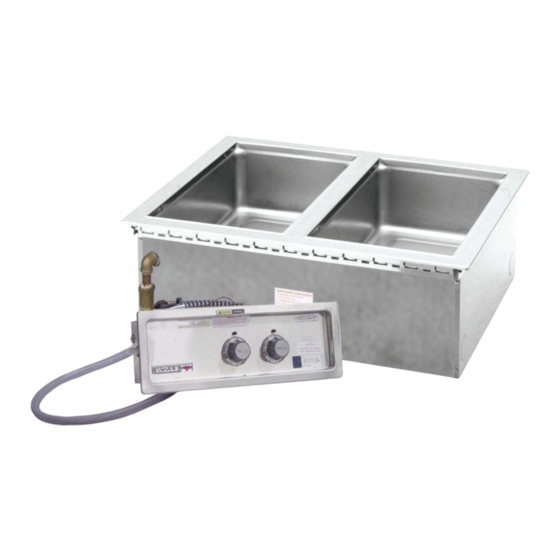

Built-in double-well modular auto-fill warmers
Hide thumbs Also See for MOD200TDM/AF:

Advertisement

Quick Links

MOD200TDMN/AF
This manual is considered to be part of the appliance and is to be given to the OWNER or
MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of
this appliance. Additional manuals are available from your WELLS DEALER.
THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR
INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any
questions concerning installation, operation or maintenance of this equipment.
308023
p/n 2M-
Rev. (-)
WELLS BLOOMFIELD, LLC
10 Sunnen Dr., St. Louis, MO 63143
telephone: 314-678-6314
MOD200TDM/AF
IMPORTANT: DO NOT DISCARD THIS MANUAL
fax: 314-781-2714
www.wells-mfg.com
OWNERS MANUAL
DOUBLE-WELL
MODULAR AUTO-FILL
MOD200TDM/AF
MOD200TDMN/AF
MOD227TDM/AF
INSTALLATION
EXPLODED VIEW
WIRING DIAGRAM
011C
BUILT-IN
WARMERS
MODELS
Includes
USE & CARE
PARTS LIST
11
M011C.12
0909
