012
WELLS MANUFACTURING COMPANY
2 ERIK CIRCLE, P. O. Box 280
Verdi, NV 89439
Customer Service (775) 345-0444 Ext.502
fax: (775) 345-0569
www.wellsbloomfield.com

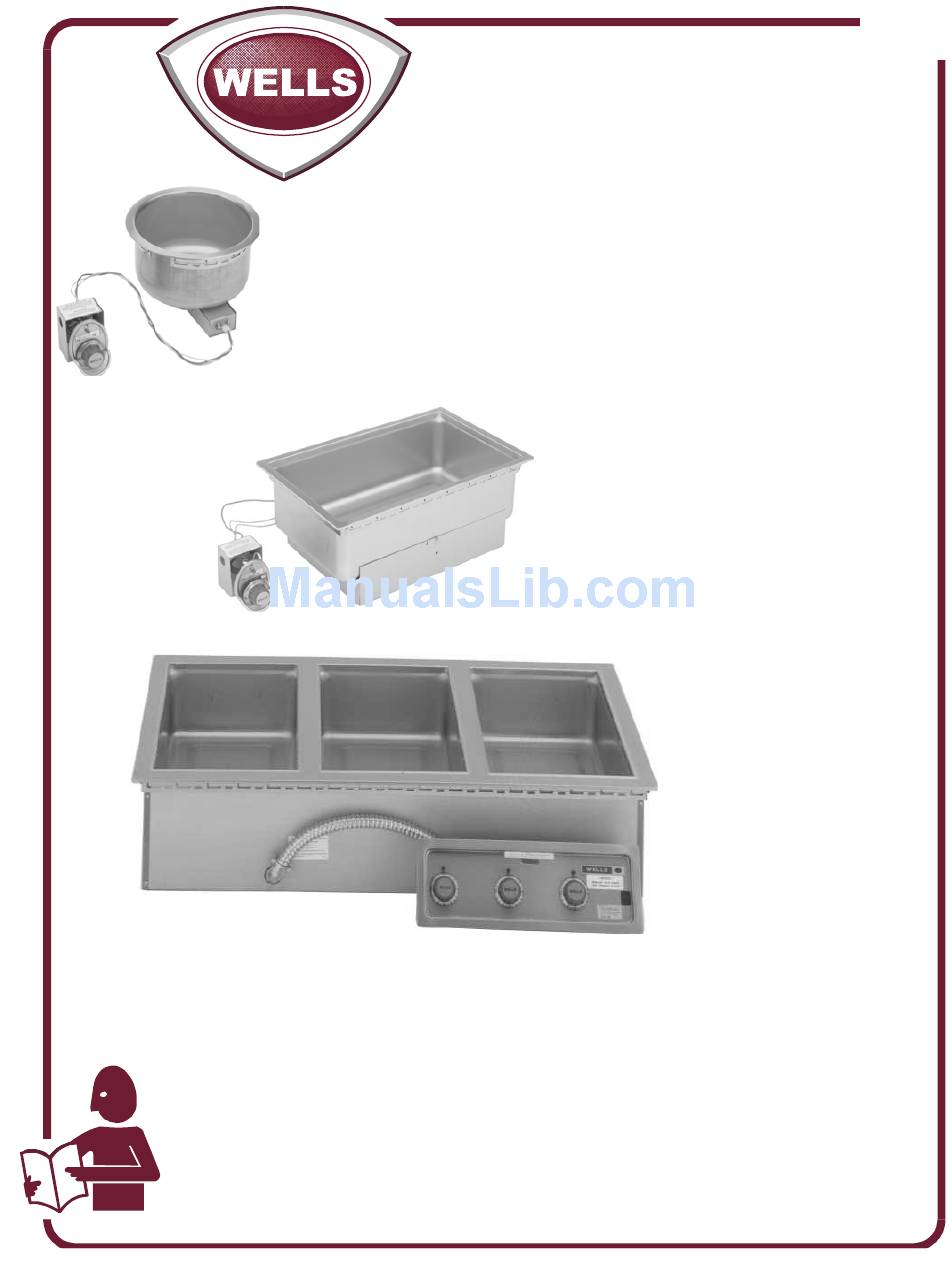

OPERATION MANUAL
WELLS
BUILT-IN
Model SS-10
WARMERS
with
INFINITE SWITCH
CONTROL
Model SS-206
including
Drain/Manifold
Models
Includes
INSTALLATION
USE & CARE

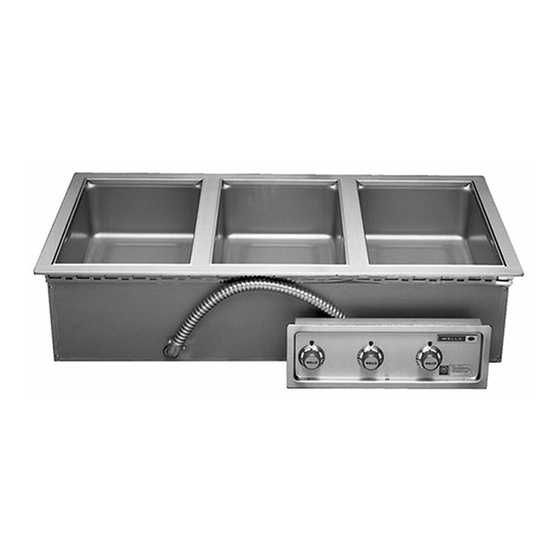

Model MOD-300
IMPORTANT: DO NOT DISCARD THIS MANUAL
This manual is considered to be part of the appliance and is to be given to the OWNER or
MANAGER of the restaurant, or to the person responsible for TRAINING OPERATORS of
this appliance. Additional manuals are available from your WELLS DEALER.
THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR
INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any
questions concerning installation, operation or maintenance of this equipment.
p/n 303309 Rev. A
M012 071102 cdw
Advertisement
Table of Contents
Related Manuals for Wells SS-10
Summary of Contents for Wells SS-10
-
Page 1: Infinite Switch
Additional manuals are available from your WELLS DEALER. THIS MANUAL MUST BE READ AND UNDERSTOOD BY ALL PERSONS USING OR INSTALLING THIS APPLIANCE. Contact your WELLS DEALER if you have any questions concerning installation, operation or maintenance of this equipment. -
Page 2: Warranty
Seller’s obligation under this warranty is limited to the one year from the date of original installation or 18 months repair of defects without charge by a Wells Mfg. Co. factory from the date of shipment from our factory, whichever... -
Page 3: Table Of Contents
PARTS & SERVICE CUSTOMER SERVICE DATA INTRODUCTION Thank You for purchasing this Wells Manufacturing Co. appliance. Proper installation, professional operation and consistent maintenance of this appliance will ensure that it gives you the very best performance and a long, economical service life. -
Page 4: Features & Operating Controls
FEATURES & OPERATING CONTROLS (continued) A. INFINITE SWITCH 1. On INFINITE SWITCH CONTROLLED warmers, power is applied to the heating element based on the control knob position and the amount of energy consumed. 2. The desired temperature is controlled by rotating the TEMPERATURE CONTROL KNOB. -
Page 5: Precautions & General Information
Do not operate this appliance if the control panel is damaged. Call instructions are read and your Authorized Wells Service Agent for service. followed. Damage to the The technical content of this manual, including any wiring diagrams,... -
Page 6: Installation
INSTALLATION NOTE: DO NOT discard UNPACKING & INSPECTION the carton or other packing Carefully remove the appliance from the carton. Remove all materials until you have protective plastic film, packing materials and accessories from the inspected the appliance for Appliance before connecting electrical power or otherwise performing hidden damage and tested it any installation procedure. - Page 7 INSTALLATION (continued) For “top-mounted” warmers (i.e. warmers mounted from above the counter top): a. Verify that provided sealants are applied to the underside of the warmer top flange prior to setting the unit into the cutout. b. After installation, verify that the tabs on the Wellsloks are turned out to lock the warmer into the counter c.
-
Page 8: Operation
CAUTION: c. Wells Manufacturing recommends operating WET for consistent food heating. Electrical Shock d. If your wet-operation warmer is allowed to run dry, turn it... - Page 9 OPERATION OPERATION Always use an inset. DO NOT place food directly into the warmer. 2. Check water level in wet-operation warmer frequently during use. Running warmers dry will lower the temperature of the food in the insert pan, and may damage the warmer. 3.
-
Page 10: Cleaning Instructions
Contact your Authorized Wells Service Agency to inspect warmer if water or grease contamination is suspected. 6. Close drain valve. Add proper amount of warm water. Turn control... - Page 11 Weekly, or whenever lime or scale is seen water for 15 minutes and accumulating on the sides of the warmer pans. consult a physician TOOLS: Wells Delime Cleaner (1 package per pan) SKIN: Wash with soap and Plastic Scouring Pad water Clean Cloth or Sponge INHALATION: Relocate to 1.
-
Page 12: Troubleshooting Suggestions
Internal damage Contact your Authorized Wells Service Agency for repairs Warmer slow to heat Mineral deposits on pan acting Clean pan(s) with Wells Delime as a insulator Cleaner Wired to wrong voltage Verify supply voltage - must match voltage on warmer name-... -
Page 13: Maintenance Instructions
Never use metal implements, wire brushes, abrasive scratch pads or steel wool to clean stainless steel. Warmer pans, insets and other vessels are subject to a harsher environment. Wells Manufacturing uses an very high quality stainless steel (#304DDQ) for our food warmer pans. -
Page 14: Parts & Service
ADAPTERS & INSETS into the warmer pan. ADAPTER TOP, convert SS-8 to hold 4 qt. inset 20177 ADAPTER TOP, convert SS-10 to hold 4 qt. inset 20822 ADAPTER TOP, convert SS-10 to hold 7 qt. inset 20175 ADAPTER TOP, convert SS-206 to hold two 7 qt. -
Page 15: Customer Service Data
1¾” thick 22592* authorized replacement parts, contact your Wells WELLSLOK EXTENSION KIT, for UL LISTED 12” x 20” warmers only, adapt to wood counter authorized service agency, up to 1¾” thick... - Page 16 Wells Manufacturing proudly supports CFESA Commercial Food Equipment Service Association WELLS MANUFACTURING COMPANY DIVISION OF CARRIER REFRIGERATION 2 ERIK CIRCLE, P. O. Box 280 Verdi, NV 89439 Customer Service (775) 345-0444 Ext.502 fax: (775) 345-0569 www.wellsbloomfield.com...
