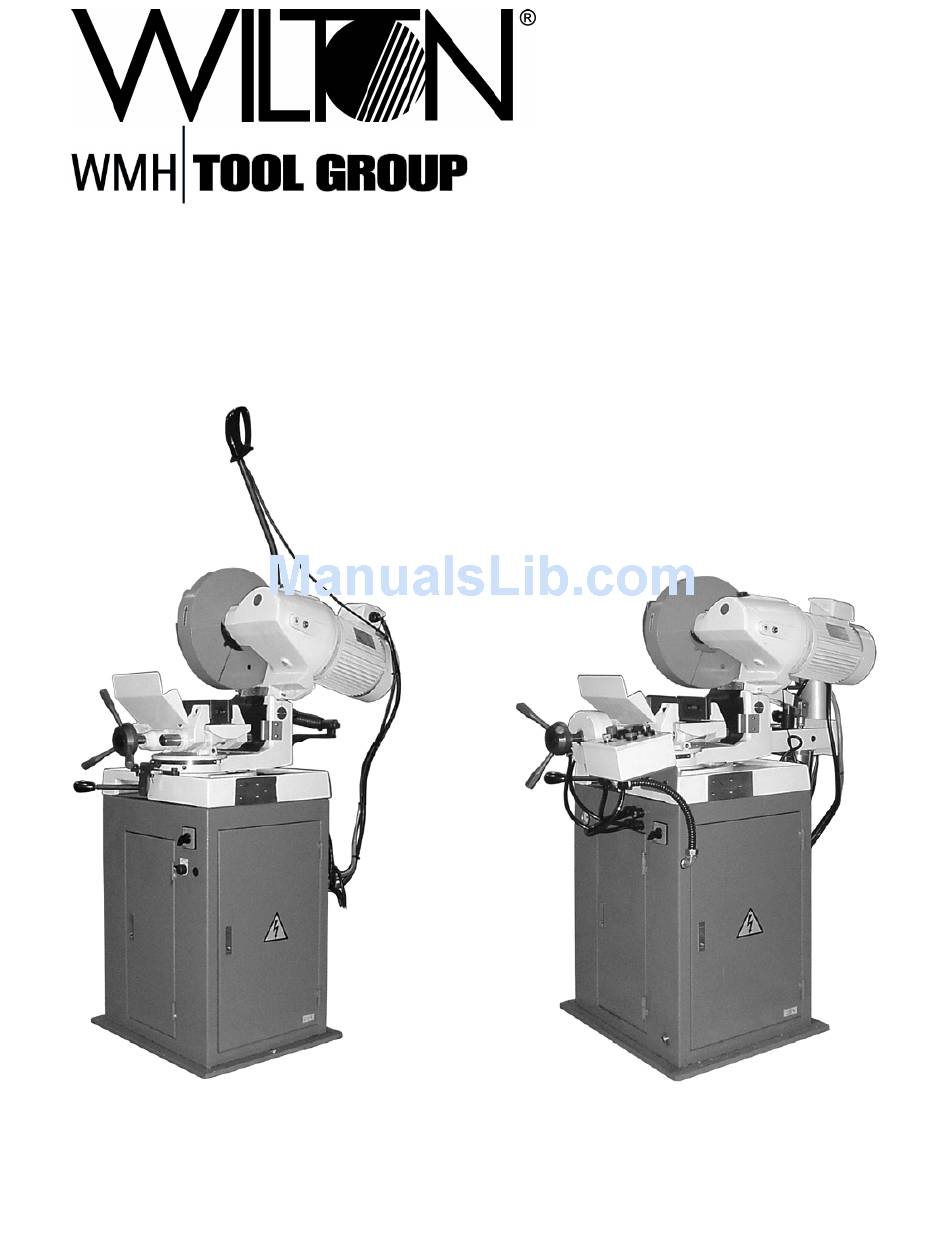

Owner's Manual
Cold Saw
Models: FK350-2, FK350-2SX, FK350-4, FK350-4SX
FK350
FK350-SX
WMH TOOL GROUP
2420 Vantage Drive
Elgin, Illinois 60124
Part No. M-FK350-2
Ph.: 800-274-6848
Revision B 02/07
www.wmhtoolgroup.com
Copyright © WMH Tool Group

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the -SX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wilton -SX

  • Page 1 This Manual is Bookmarked This Manual is Bookmarked Owner's Manual Cold Saw Models: FK350-2, FK350-2SX, FK350-4, FK350-4SX FK350 FK350-SX WMH TOOL GROUP 2420 Vantage Drive Elgin, Illinois 60124 Part No. M-FK350-2 Ph.: 800-274-6848 Revision B 02/07 www.wmhtoolgroup.com Copyright © WMH Tool Group...
  • Page 2: Warranty And Service

    This warranty covers only the initial purchaser of the product. WHAT IS THE PERIOD OF COVERAGE? The general WILTON warranty lasts for the time period specified in the product literature of each product. WHAT IS NOT COVERED? This warranty does not cover defects due directly or indirectly to misuse, abuse, negligence or accidents, normal wear-and-tear, improper repair or alterations, or lack of maintenance.
  • Page 3: Table Of Contents

    Base Assembly – FK350-SX ... 30 Manual Vise Assembly – FK350 ... 32 Power Vise Assembly – FK350-SX ... 34 Guard Assembly – FK350 & FK350-SX ... 36 In-Feed Table Assembly... 38 Out-Feed Table ... 39 Pneumatic Drawing – FK350-SX ... 40 Wiring Diagram –...
  • Page 4: Warnings

    Warnings 1. Read and understand the entire owner's manual before attempting assembly or operation. 2. Read and understand the warnings posted on the machine and in this manual. Failure to comply with all of these warnings may cause serious injury. 3.
  • Page 5 23. Give your work undivided attention. Looking around, carrying on a conversation and “horse-play” are careless acts that can result in serious injury. 24. Maintain a balanced stance at all times so that you do not fall into the blade or other moving parts. Do not overreach or use excessive force to perform any machine operation.
  • Page 6: Introduction

    Introduction The FK350 and FK350-SX are circular saws designed to provide a reliable solution to the needs of machine shops and production environments that work with steel or iron. The FK350 is manually operated: after clamping the material in the vise, the operator presses the trigger handle starting the blade, and brings the operating lever downward to cut the material.
  • Page 7: Fk350 Features

    FK350 Features FK350 Cold Saw FK350-SX Cold Saw...
  • Page 8: Features

    Power switch must be set to on and the High/Stop/Low switch must be set for Hi or Low. Then depress the trigger handle to start. FK350-SX Controls This machine features a 2-speed motor, feed speed control, an integral coolant system, and two modes of operation;...
  • Page 9: Installation

    Installation Unpacking the machine Do not handle the packed machine using slings. To install the machine, first remove the packing, paying particular attention not to cut any electric wires or hydraulic hoses. Lift using straps (Figure 3). Figure 3 Anchoring and handling the machine The base of the machine must be anchored to the floor by two lag bolts or studs properly anchored into concrete.
  • Page 10: Controls

    Hi or Low speed selection made, and the trigger handle, depressed. Figure 5 Control Panel – FK350-SX Emergency – Emergency Stop: This turns off the controls, and the machine. When used, it requires that “Control On” button be pushed.
  • Page 11: Operation

    When the cut is complete: 6. Raise the head. 7. Remove the work piece from the vise using the vise hand wheels. FK350-SX To operate machine, 1. Clear the Emergency Stop. 2. Press Control On. 3. Select the desired blade speed.
  • Page 12: Miter Adjustment

    4. When the desired cutting angle is set, move miter position lock (A) to the left to secure. Figure 10 Trip Adjustment – FX350-SX The height of retract and depth of cut trips set the travel limit of the head.
  • Page 13: Maintenance

    5. To secure the saw blade, reverse the preceding steps. Air Prep Unit – FK350-SX only The Air Prep Unit regulates the air pressure supplied to the saw. It is located in the cabinet stand and is accessible through the access door located below and to the left of the control panel.
  • Page 14: Lubrication

    Check the gearbox oil level weekly, full level is top of sight glass with head in full up position. The gearbox oil should be changed annually, and the hydraulic fluid [FK350-SX] should be changed annually. Recommended Lubricants: Gearbox Use Texaco Meropa 460 or equivalent.
  • Page 15: Blade Selection

    Blade Selection When using the FK350 cold saw, it is important to select the correct type of blade for the material to be cut. This section explains the limitations and specific applications of the different types of blades. General Characteristics: Fine Tooth Pitch --used for thin wall materials such as sheet steel, tubes and profiles Coarse Tooth Pitch --used for large cross-...
  • Page 16: Blade Structure

    Blade Structure For non--ferrous metals, it is common to use circular saws with brazed hard metal HM cutting edge, consisting of a disc made of alloy tool steel (71Cr1) on which the shape of the teeth and the seats for the cutting edges are made of Widia K10.
  • Page 17 Figure 17 Short swarf material such as brass, bronze, aluminum and hard cast iron require smaller cutting angles because the swarf becomes crushed immediately and the rake angle has little effect during the cutting stage. Figure 18 The FK350 uses discs with positive cutting angles for cutting solid materials and with negative cutting angles for cutting hollow profiles.
  • Page 18: Troubleshooting

    Troubleshooting Troubleshooting – Blade and Cutting Problems Problem Probable Cause Incorrect lubricant/coolant fluid Material too hard Disc not worn--in correctly Disc with excessively fine Teeth breaking tooth pitch New blade inserted in a partially completed cut Work piece not clamped firmly in place Feed speed too slow Cutting pressure too high...
  • Page 19: Parts

    Troubleshooting – Machine Fault & Operating Problems Problem Probable Cause Electrical power supply Transformer Contactor Spindle motor will not turn Thermal relay Motor Cutting Vise Valve For SX version: Cutting vise will not close or will Compressed air supply hose not open Vise cylinder Parts...
  • Page 20: Head Assembly - Fk350 & Fk350-Sx

    Head Assembly – FK350 & FK350-SX Index No. Part No. Description Size 1 ...FK350-201 ...Head Body ..1 2 ...FK350-202 ...Spindle ..1 3 ...FK350-203 ...Spindle Housing..1 4 ...FK350-204 ...Cutter Cap..1 5 ...FK350-205 ...Cutter Cap Pin ..2 6 ...FK350-206 ...Stopper Ring ...
  • Page 21 Head Assembly – FK350 & FK350-SX...
  • Page 22: Power Feed Assembly - Fk350-Sx

    Power Feed Assembly – FK350-SX Index No. Part No. Description Size 1 ...FK350SX-701 ...Spring Bracket A ..1 2 ...FK350SX-702 ...Spring Bracket B ..1 3 ...FK350SX-703 ...Converter Bracket ..1 4 ...FK350SX-704 ...Cylinder Bracket..1 5 ...FK350SX-705 ...Hinge Bolt...
  • Page 23 Power Feed Assembly – FK350-SX...
  • Page 24: Stock Stop Assembly

    Stock Stop Assembly Index No. Part No. Description Size 1 ...FK350-501 ...Block ..1 2 ...FK350-502 ...Shaft..1 3 ...FK350-503 ...Stop Rod ..1 4 ...FK350-504 ...Scale (Inch) ..1 6 ...FK350-506 ...Handle... M8x30 ... 2 7 ...FK350-505 ...Rivet ...
  • Page 25: Stand Assembly - Fk350

    Stand Assembly – FK350 Index No. Part No. Description Size 1 ...FK350-601 ...Cabinet Stand ..1 2 ...FK350-602 ...Coolant Pump ..1 3 ...FK350-603 ...Cam Switch ..1 4 ...FK350-604 ...Magnetic Switch..1 5 ...FK350-605 ...Overload Relay ..1 6 ...FK350-606 ...Lighted Selector Switch ...
  • Page 26: Stand Assembly - Fk350-Sx

    Stand Assembly – FK350-SX Index No. Part No. Description Size 1 ...FK350SX-601 ...Cabinet Stand ..1 2 ...FK350SX-602 ...Foot Switch (Optional) ..1 3 ...FK350-603 ...Cam Switch ..1 4 ...FK350-604 ...Magnetic Switch..1 5 ...FK350SX-605 ...Overload Relay ..1 7 ...FK350SX-607 ...Control Box Bracket ...
  • Page 27 Stand Assembly – FK350-SX...
  • Page 28: Base Assembly - Fk350

    Base Assembly – FK350 Index No. Part No. Description Size 1 ...FK350-101 ...Base ..1 2 ...FK350-102 ...Hinge Body..1 3 ...FK350-103 ...Locking Mount..1 4 ...FK350-104 ...Release Handle ..1 5 ...FK350-105 ...Pin ..1 6 ...FK350-106 ...Coil Spring...
  • Page 29 Base Assembly – FK350...
  • Page 30: Base Assembly - Fk350-Sx

    Base Assembly – FK350-SX Index No. Part No. Description Size 1 ...FK350-101 ...Base ..1 2 ...FK350-102 ...Hinge Body..1 3 ...FK350-103 ...Locking Mount..1 4 ...FK350-104 ...Release Handle ..1 5 ...FK350-105 ...Pin ..1 6 ...FK350-106 ...Coil Spring...
  • Page 31 Base Assembly – FK350-SX...
  • Page 32: Manual Vise Assembly - Fk350

    Manual Vise Assembly – FK350 Index No. Part No. Description Size 1 ...FK350-301 ...Base ..1 2 ...FK350-302 ...Vise Jaw..2 3 ...FK350-303 ...Tip ..1 4 ...FK350-304 ...Vise Screw ..1 5 ...FK350-305 ...Jaw Insert A (Steel, Smooth) ..2 FK350-305ST ...Jaw Insert A (Steel, Serrated)...
  • Page 33 Manual Vise Assembly – FK350...
  • Page 34: Power Vise Assembly - Fk350-Sx

    Power Vise Assembly – FK350-SX Index No. Part No. Description Size 1 ...FK350-301 ...Base ..1 2 ...FK350-302 ...Vise Jaw..1 3 ...FK350-303 ...Tip ..1 4 ...FK350SX-304 ...Vise Screw, Semi-Auto ..1 5 ...FK350-305 ...Jaw Insert A (Steel, Smooth) ..2 FK350-305ST ...Jaw Insert A (Steel, Serrated)...
  • Page 35 Power Vise Assembly – FK350-SX File 27...
  • Page 36: Guard Assembly - Fk350 & Fk350-Sx

    Guard Assembly – FK350 & FK350-SX Index No. Part No. Description Size 1 ...FK350-401 ...Guard A..1 2 ...FK350-402 ...Guard B..1 3 ...FK350-403 ...Guard C..1 4 ...FK350-404 ...Link A ..1 5 ...FK350-405 ...Nylon Spacer A ..6 6 ...FK350-406 ...Nylon Spacer B ...
  • Page 37 Guard Assembly – FK350, FK350-2SX...
  • Page 38: In-Feed Table Assembly

    In-Feed Table Assembly Index No. Part No. Description Size 1 ...FK350-701 ...Bracket ..1 2 ...FK350-702 ...Stand..1 3 ...FK350-703 ...Leveling Foot ..2 4 ...TS-154010 ...Hex Nut M16 ..2 5 ...FK350-705 ...Angle Rail..2 6 ...FK350-706 ...Base A...
  • Page 39: Out-Feed Table

    Out-Feed Table 1 ...FK350-801 ...Guide Block..EA 2 ...FK350-802 ...Guide Rail ..EA 3 ...TS-1502051 ...Socket Head Cap Screw... M5x20 ... EA 4 ...FK350-804 ...Stopper Base ..EA 5 ...TS-1502051 ...Socket Head Cap Screw... M5x20 ... EA 6 ...FK350-806 ...Connecting Plate...
  • Page 40: Pneumatic Drawing - Fk350-Sx

    Pneumatic Drawing – FK350-SX Wiring Diagram – FK350...
  • Page 41: Wiring Diagram - Fk350-Sx

    Wiring Diagram – FK350-SX...
  • Page 42 --NOTES--...
  • Page 43 --NOTES--...
  • Page 44 WMH Tool Group 2420 Vantage Drive Elgin, Illinois 60124 Phone: 800-274-6848 www.wmhtoolgroup.com...
