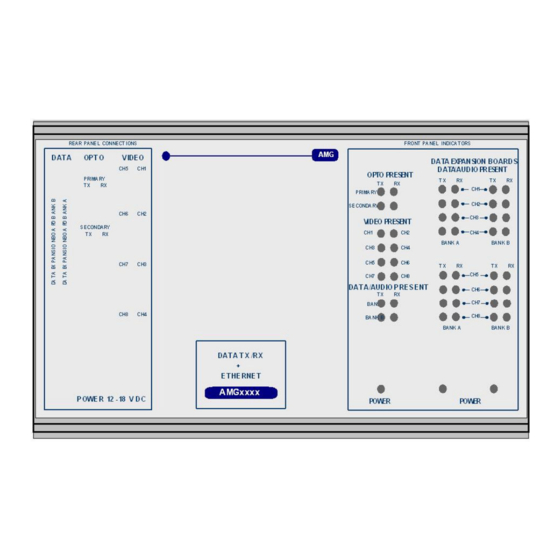

Data Transmit Unit with up to 16 Bi-directional Data and
The AMG4707 is a standalone data transmit unit designed to transmit and receive up to 16 data or
audio signals over two multimode fibres. The 16 data/audio channel interfaces, whether RS232,
RS422, RS485, 20mA, TTL, Contact Closure, Lonworks or Audio, are defined at manufacture by the
addition of daughter boards fitted onto the Data Expansion Boards A and B.
The AMG4707 is designed to be powered by an AMG2003 power supply.
The AMG4707 is designed to operate with AMG4708 or rackmount equivalent AMG4708R data
receive unit in a point to point configuration.
AMG Systems Ltd. reserves the right to make changes to this
document without notice. The information herein is believed to
be accurate. No responsibility is assumed by AMG for its use.
Audio Channels
Page 1 of 8
AMG4707
Instruction Manual
AMG4707 Instruction Sheet D16304-
02.doc

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AMG4707 and is the answer not in the manual?

Questions and answers

Summary of Contents for AMG AMG4707

  • Page 1 Data Transmit Unit with up to 16 Bi-directional Data and Audio Channels The AMG4707 is a standalone data transmit unit designed to transmit and receive up to 16 data or audio signals over two multimode fibres. The 16 data/audio channel interfaces, whether RS232, RS422, RS485, 20mA, TTL, Contact Closure, Lonworks or Audio, are defined at manufacture by the addition of daughter boards fitted onto the Data Expansion Boards A and B.
  • Page 2: Table Of Contents

    Removal / replacement from / to the Case..................8 Safety Maintenance and Repair AMG Systems Ltd. reserves the right to make changes to this Page 2 of 8 AMG4707 Instruction Sheet D16304- document without notice. The information herein is believed to 02.doc...
  • Page 3: Introduction

    AMG4708. Optical Connection The AMG4707 is connected as illustrated below when used with an AMG4708 data receive unit acting as a point to point system. AMG Systems Ltd. reserves the right to make changes to this...
  • Page 4: Connections

    For the data or audio channels to be present, the appropriate data daughter boards have to be fitted into the data expansion board slots. AMG Systems Ltd. reserves the right to make changes to this Page 4 of 8 AMG4707 Instruction Sheet D16304- document without notice.
  • Page 5: Data And Audio Channel Configuration

    Data and Audio Channel Configuration The data expansion board slots are accessed by removing the AMG unit from its case. A data channel is active when a daughter board is installed in the required data channel slot. Each data interface board enables one bi-directional channel.
  • Page 6: Data And Audio Connections

    See Data or Audio Daughter Board Instruction Sheet for meaning of Audio/Data IN+, Audio/Data IN- Audio/Data OUT+, and Audio/Data OUT- for each data type. AMG Systems Ltd. reserves the right to make changes to this Page 6 of 8 AMG4707 Instruction Sheet D16304- document without notice.
  • Page 7: Front Panel Indicators

    > 0dBm (overload at +6dBm) audio not present or < -40dBm This represents the audio signals being received from the optical fibre. AMG Systems Ltd. reserves the right to make changes to this Page 7 of 8 AMG4707 Instruction Sheet D16304- document without notice.
  • Page 8: Physical Information

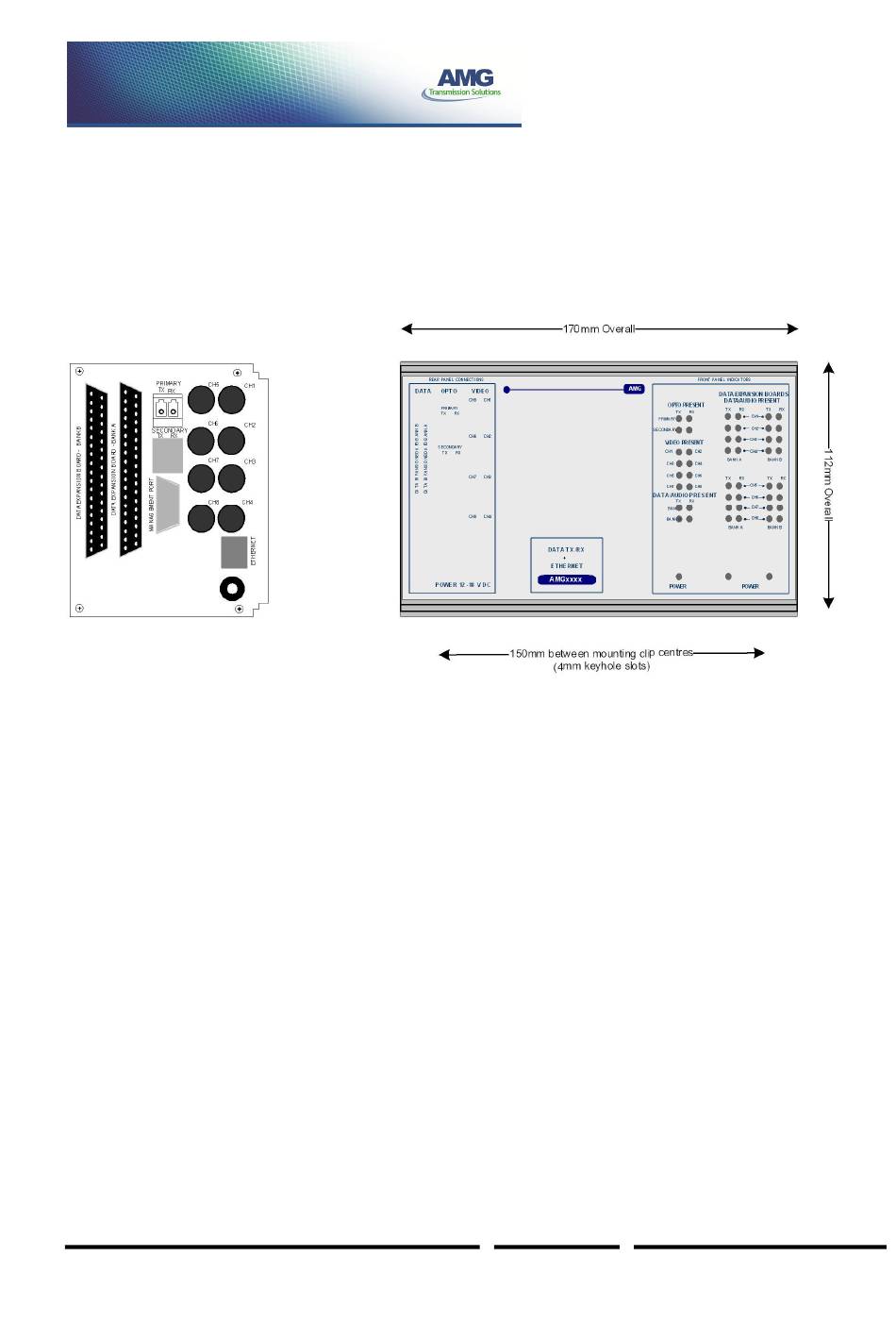

    Weight..........1200grams Mounting Details The AMG unit is supplied with a clip-on mounting bracket which should be attached to a panel or wall using 2 off 4.0mm screws, see diagram on page 1 for dimensions. The unit is clipped into the mounting bracket, and is then held firmly in position.
