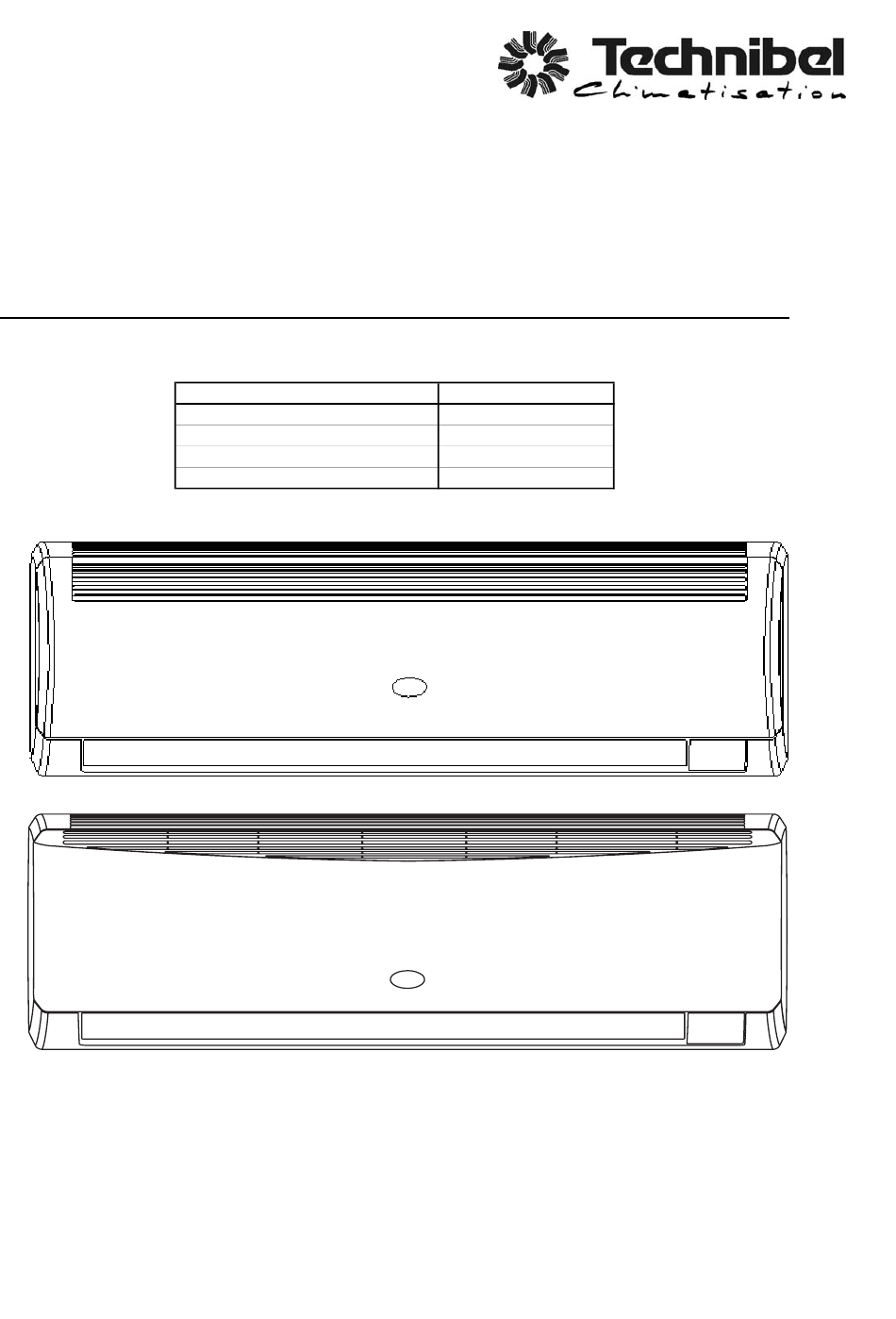

- Page 1 TECHNICAL DATA & SERVICE MANUAL INDOOR UNIT: MRAF99R5IAA MRAF129R5IAA MPAF99R5IAA MPAF129R5IAA SPLIT SYSTEM AIR CONDITIONER Model No. Product Code No. MRAF99R5IAA 38.7104.065 MRAF129R5IAA 38.7104.062 MPAF99R5IAA 38.7104.065 MPAF129R5IAA 38.7104.062 0.8180.582.01 oct 2010...
- Page 2 IMPORTANT! • Ground the unit following local electrical codes. • The Yellow/Green wire cannot be used for any connection Please read before installation different from the ground connection. • Connect all wiring tightly. Loose wiring may cause overheating This air conditioning system meets strict safety and operating at connection points and a possible fire hazard.
-
Page 3: Table Of Contents
Table of Contents Page 1. SPECIFICATIONS 1-1 Unit specifications 1-2 Major Component specifications 1-3 Other Component specifications 2. DIMENSIONAL DATA 3. PERFORMANCE DATA 3-1 Air Throw Distance Chart 4. ELECTRICAL DATA 4-1 Electric Wiring Diagrams 5. FUNCTION 5-1 System operation control 5-2 Cool Mode Operation 5-3 Heat Mode Operation 5-4 Auto Mode Operation... -
Page 4: Specifications
1. SPECIFICATIONS 1-1 Unit Specifications MRAF99R5IAA MPAF99R5IAA 220 - 240 V ~ 50 Hz Power source 230 V - 50 Hz Voltage rating Cooling Heating Performance See catalogue with the requested matching Capacity Air circulation (High) m³/h Features Microprocessor/ I.C. thermostat... - Page 5 MRAF129R5IAA MPAF129R5IAA 220 - 240 V ~ 50 Hz Power source 230 V - 50 Hz Voltage rating Cooling Heating Performance See catalogue with the requested matching Capacity Air circulation (High) m³/h Features Microprocessor/ I.C. thermostat Controls/Temperature controls Wireless remote control unit Control unit Timer ON/OFF 24 hours...
-
Page 6: Major Component Specifications
1-2 Major Component Specifications MRAF99R5IAA MPAF99R5IAA Controller PCB SAC DCI IDU Part No. Microprocessor Controls 250 V - 3,15 A Control circuit fuse SAC W-REM Remote Control Unit Fan & Fan Motor Cross - flow Type 1…. Ø 95 / L 617 Q'ty ……. - Page 7 MRAF129R5IAA MPAF129R5IAA Controller PCB SAC DCI IDU Part No. Microprocessor Controls 250 V - 3,15 A Control circuit fuse SAC W-REM Remote Control Unit Fan & Fan Motor Cross - flow Type 1…. Ø 95 / L 617 Q'ty ……. Dia. and lenght KFV4Q-11H5P-S…1 Fan motor model…Q'ty 4…1160...
-
Page 8: Other Component Specifications
1-3 Other Component Specifications MRAF99R5IAA MRAF129R5IAA MPAF99R5IAA MPAF129R5IAA 0028TRA008 Trasformer (TR) Rating Primary AC 230 V, 50 Hz 13 V - 6VA Secondary Capacity Ω (at 25°C) Primary: - Coil resistance Secondary: - 120°C Thermal cut-off temp. NTC-THERMISTOR Thermistor ( Coil sensor ) 10 at 25 °C... -
Page 9: Dimensional Data
2. DIMENSIONAL DATA MRAF99R5IAA MRAF129R5IAA... - Page 10 2. DIMENSIONAL DATA MPAF99R5IAA MPAF129R5IAA...
-
Page 11: Performance Data
3. PERFORMANCE DATA 3-1 Air Throw Distance Chart MRAF99R5IAA MPAF99R5IAA Cooling Room air temp. : 27°C Fan speed High Horizontal distance (m) : Flap angle 0° , : Axis air velocity 0° : Flap angle 30°, : Axis air velocity 30°... - Page 12 MRAF129R5IAA MPAF129R5IAA Cooling Room air temp. : 27°C Fan speed High Horizontal distance (m) : Flap angle 0° , : Axis air velocity 0° : Flap angle 30°, : Axis air velocity 30° Heating Room air temp. : 20°C Fan speed High Horizontal distance (m) : Flap angle 45°...
-
Page 13: Electrical Data
4. ELECTRICAL DATA 4-1 Electric Wiring Diagrams MRAF99R5IAA MRAF129R5IAA MPAF99R5IAA MPAF129R5IAA... -
Page 14: Function
5.FUNCTION 5-1 System operation control The inputs to the systems come from indoor and outdoor sensors. The outdoor unit is the system MASTER while the indoor one is the SLAVE. Communication between units is made with a 2 poles RS485 bus The indoor units receives the user input (fan speed, flap position etc) through remote controller which sends signal every time a button is pressed and in any case, automatically, every 5 minutes. -
Page 15: Cool Mode Operation
5-2 Cool Mode Operation In Cooling Mode, the operation of the compressor (CM), Outdoor Fan (FMO) and Indoor Fan (FMI) are determined by: 1) the difference between the room air temperature (RAT) and the set point temperature (SPT) 2) the protection level at which the system is operating NOTES In addition to the temperature difference of above, the operation of the main components (CM, FMO, FMI) is also controlled by protection function. -
Page 16: Auto Mode Operation
5-4 Auto Mode Operation In Auto Mode, the unit switches automatically between the Auto Cooling and Auto Heating in order to maintain the room temperature (RAT) at the prescribed set point (SPT). The switching between the two modes is according to the above graph and following table COOLING --->... -
Page 17: Dry Mode Operation
5-5 Dry Mode Operation Dry operation remove moisture from indoor air running, in cooling mode, at a low level without reducing the ambient temperature. This is done cycling ON and OFF indoor and outdoor units according to below. ROOM DRY LEVEL TEMP Operation according to COOLING mode ≥... -
Page 18: Forced-Mode
5-8 Forced Mode In this mode the system operates (COOLING or HEATING mode – fixed settings) or is switched off by means of the MODE button on the indoor unit control board. The operation modes can be selected pressing the button in a cyclic way (OFF COOL HEAT OFF…). -
Page 19: Protection Operation Outdoor Unit
5-10 Protection operations on outdoor unit 5-10.1 Overheating During cooling operation as soon as the outdoor coil temperature (OCT) increases, compressor speed is reduced in order to avoid heat exchanger overheating. System stops compressor operation when OCT reaches 60 °C 5-10.2 Compressor discharge temperature During operation, as soon as the discharge temperature increases, (CDT) compressor speed is reduced in order to avoid overheating of the motor. -
Page 20: Defrost
5-11 Defrost 5.11.2 Defrost The defrost process is controlled by a detection algorithm designed in order to mantain optimal utilization of the heat pump capacity especially during negative outdoor temperature conditions. 5.11.2.1 Defrost standard units (SH) • Compressor speed fixed •... -
Page 21: Night Function
5-14 NIGHT Function When this setting is active indoor fan speed is automatically reduced in order to allow low noise operation.Temperature control acts in the same way as NORMAL MODE but after 60 minutes of operation the air conditioner modifies automatically the set-point temperature according to the following: •COOLING/DRY: +1°C •HEATING: - 2°C... -
Page 22: Diagnostic
5-17 Diagnostic With this feature is possible to have a visual signal that a trouble is occurring. This mode is always active and the signalling is made through the display board LEDS . In case of no troubles the LEDS status follows its normal function. The detected troubles are showed to the user/technician using the 3 leds of the indoor unit receiver and the 5 leds on the outdoor pcb. -
Page 23: Indoor Unit Jumpers Configuration
5-18 INDOOR UNIT JUMPERS CONFIGURATION Unit is shipped with jumpers set according to the following table: JUMPER STATUS open open... -
Page 24: Outdoor Unit Jumpers Configuration
5-19 OUTDOOR UNIT JUMPERS CONFIGURATION Unit is shipped with jumpers set according to the following table: models: GRF99R5IAA GRF129R5IAA JUMPER STATUS open closed open... -
Page 25: Contacts For Building Automation
5-20 CONTACTS FOR BUILDING AUTOMATION 5-20.1 INPUT CONTACT (J11 - green) The status of this input affects system operation according to the following: Contact OPEN : system does not operate (always OFF) – inputs from wireless remote controller are not processed Contact CLOSED: system operates in the normal way according to the inputs coming from wireless remote controller 5-20.2 OUTPUT CONTACT (J20) -
Page 26: Maintenance
5-21 MAINTENANCE 5-21.1 Changing the Address of the Air Conditioner In case of more than one air conditioner operating in the same room, it may be necessary to assign an address to each unit in order to avoid operation conflicts. Address is set acting on the dip-switches located on the indoor PCB and on the remote controller. -
Page 27: Troubleshooting
TROUBLESHOOTING CHECK BEFORE AND AFTER «TROUBLESHOOTING» (A) Check power supply wiring. • Check the power supply wires are correctly connected. (B) Check power supply. • Check that voltage is in specified range (±10% of the rating). • Check that power is being supplied. •... -
Page 28: System Does Not Run
SYSTEM DOES NOT RUN. - Page 29 SYSTEM DOES NOT RUN.
-
Page 30: Outdoor Unit Does Not Run And No Fault Is Displaied
OUTDOOR UNIT DOES NOT RUN AND NO FAULT IS DISPLAIED ONLY OUTDOOR UNIT IS OFF... -
Page 31: Fault On Outdoor Unit
OUTDOOR UNIT: FAULT SIGNALING... -
Page 32: Air Conditioner Operates, But Abnormalities Are Observed
AIR CONDITIONER OPERATES, BUT ABNORMALITIES ARE OBSERVED. 1-POOR COOLING OR HEATING Check the remote Try with Receiver PCB assy Does the indoor unit controller settings. another assy may be may be receive the signal? See maintenance remote defective defective 5-21 controller Is the remote controller Change the... - Page 33 3 - CHECK “MODE BUTTON” OPERATION ON THE UNIT Push the mode button The unit does not run PCB assy is defective...
-
Page 34: Noisy Problem
NOISY PROBLEM... -
Page 35: Checking Eletrical Components
7) CHECKING ELETRICAL COMPONENTS... - Page 37 0.8180.582.00 05/2009 R.D. 28 Reyrieux BP 131 - 01601 Trévoux CEDEX France Tél. 04.74.00.92.92 - Fax 04.74.00.42.00 R.C.S. Bourg-en-Bresse B 759 200 728...
