All rights reserved. Product description and product specifications are subject to change without notice.
For l a stest product information, please v i s it Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
Tel: 909. 597. 7588
Fax: 909. 597. 1939
© C opyright 2015 Acnodes C orp.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Acnodes RP1205
Summary of Contents for Acnodes RP1205

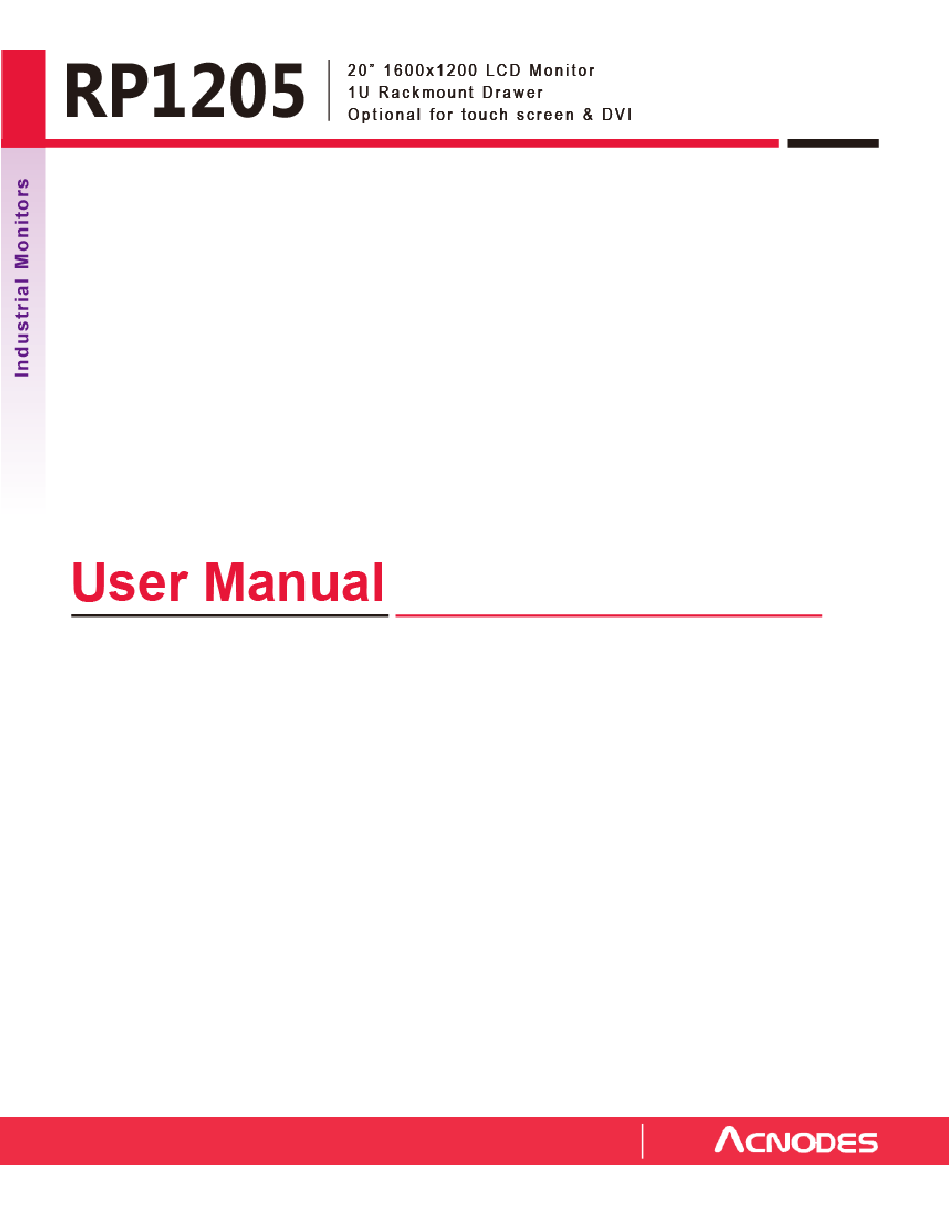

- Page 1 All rights reserved. Product description and product specifications are subject to change without notice. For l a stest product information, please v i s it Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909. 597. 7588 Fax: 909. 597. 1939...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
- Page 3 Contents < Part. 1 > RP1205 Package Content Structure Diagram & Dimension P.1 - 2 Installation < Part. 2 > Specifications / OSD Product Specifications P.4 - 5 On-screen Display Operation ( OSD ) P.6 - 7 < Part. 3 >...
- Page 4 Before Installation ¦ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ¦ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
- Page 5 < Part 1 > < 1.1 > Package Content RP1205 unit X 1 - 6ft V GA cable X 1 - P ower cord X 1 - M6 s crew, cage nut & cup was her X 8 T he abo ve p ackage con ten t is o nly for th e pure m odel ( VG A and DVI-D o nly ).
- Page 6 Weight 439.6 x 650 x 44 mm 595 x 860 x 140 mm 13.5 kg 17.5 kg RP1205 17.3 x 25.6 x 1.73" 23.4 x 33.9 x 5.5” 30 lb 39 lb The weight is only for the pure models. It varies with accessories & options...
- Page 7 < 1.3 > Installation - How to install 1U 20" LCD Tray Step ¦ Attach the left and right mounting bracket to Rear s ide Right bracket rack 19" mounting rails. ¦ Adjust the mounting bracket to fit your rack. ¦...
- Page 8 < Part 2 > < 2.1 > Product Specifications Manufacturer Panel Panel Size ( diagonal ) 20-inch TFT color LCD Display pixel ( dots x lines ) 1600 x 1200 Brightness ( typ. ) Contrast Ratio ( typ. ) 800:1 Color 16.7 M Viewing Angle ( L/R/U/D )
- Page 9 Regulatory Safety Approval FCC & CE Environmental Operating Temperature 0 to 50°C degree Conditions Humidity 20~90%, non-condensing Storage Temperature -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical Product ( W x D x H ) 439.6 x 650 x 44 mm Specification 17.3 x 25.6 x 1.73 inch...
- Page 10 < 2.2 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu...
- Page 11 < 2.2 > On-screen Display Operation ( OSD ) OSD Configuration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc:...
- Page 12 < Part 3 > < 3.1 > Options : - HDMI ( HDMI 1.1, CEA-861-D ) - AV ( S-Video + Composite, BNC ) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) For AV2.2 upgrade, either HDMI or DVI-D is provided.
- Page 13 < 3.2 > Options : DC Power Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA...
