All rights reserved. Product description and product specifications are subject to change without notice.
For l a stest product information, please v i s it Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
Tel: 909. 597. 7588
Fax: 909. 597. 1939
© C opyright 2015 Acnodes C orp.
Advertisement
Related Manuals for Acnodes RP1195
Summary of Contents for Acnodes RP1195

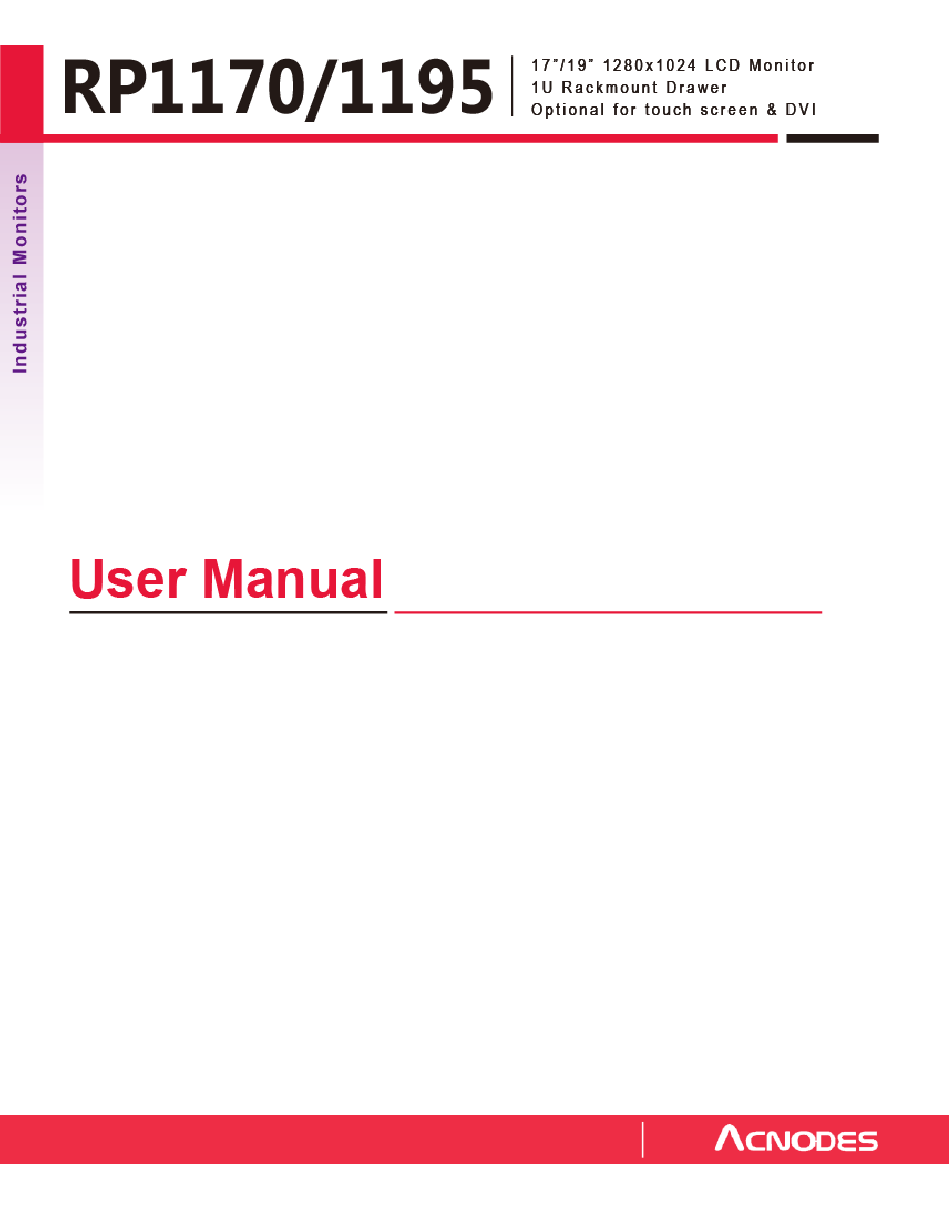

- Page 1 All rights reserved. Product description and product specifications are subject to change without notice. For l a stest product information, please v i s it Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909. 597. 7588 Fax: 909. 597. 1939...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
- Page 3 Contents < Part. 1 > RP1170 / RP1195 Package Content Structure Diagram & Dimension P.1 - 2 Installation < Part. 2 > Specifications / OSD Product Specifications P.4 - 5 On-screen Display Operation ( OSD ) P.6 - 7 < Part. 3 >...
- Page 4 Before Installation ¦ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ¦ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
- Page 5 < Part 1 > < 1.1 > Package Content RP 1170 or RP1195 unit X 1 - 6ft VG A c ab le X 1 - Pow er c ord X 1 - M 6 screw, c age nut & cup washer X 8 Th e ab ove packag e co ntent is only for the pu re m o del ( VG A and DVI-D on ly ).
- Page 6 36 lb 441.6 x 500 x 44 mm 590 x 687 x 120 mm 12.5 k g 18.5 k g RP1195 series 17.4 x 19.7 x 1.73" 23.2 x 27 x 4.7” 28 lb 41 lb The w eight is only for the p ure mo dels. It varies with accessories & op tion s...
- Page 7 < 1.3 > Installation - How to install Installation Slides Step ¦ Insert the left and right rear mounting brackets into the display drawer. Step ¦ Measure the depth of the front and rear mounting rails. ¦ Align each rear mounting bracket to a suitable length. Step Complete the installation ¦...
- Page 8 < Part 2 > < 2.1 > Product Specifications RP1170 RP1195 Panel Manufacturer Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD Display pixel ( dots x lines ) 1280 x 1024 1280 x 1024 Brightness ( typ. ) Contrast Ratio ( typ.
- Page 9 Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical RP1170 RP1195 Specification Product ( W x D x H ) 441.6 x 500 x 44 mm 441.6 x 500 x 44 mm 17.4 x 19.7 x 1.73 inch 17.4 x 19.7 x 1.73 inch...
- Page 10 < 2.3 > On-screen Display Operation ( OSD ) Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control Exit the OSD screen Go back to the previous on-screen sub-menu or main menu...
- Page 11 < 2.3 > On-screen Display Operation ( OSD ) OSD Configuration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc:...
- Page 12 < Part 3 > < 3.1 > Options : - HDMI ( HDMI 1.1, CEA-861-D ) - AV ( S-Video + Composite, BNC ) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) ( 1 ) For AV2.2 upgrade, either HDMI or DVI-D is provided.
- Page 13 < 3.2 > Options : Touchscreen & driver 17” / 19" USB Touchscreen Specification 17’ 19” 17” 19” Model e-Resistive e-Capacitive Technology 5-Wire Resistive Capacitive Touch Point Single Single Method Stylus or Finger Finger Activation Force = 50g / Stylus=R0.8 = 50g Durability 35 million touches...
- Page 14 Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc Step 2. Double click the Setup.exe Step 3. Follow the installation instruction to finish the setup Step 4. After installation, run the TouchKit program & the “4 point calibration” Please do the initial calibration after the first setup...
- Page 15 < 3.3 > Options : DC Power Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA...
