Summary of Contents for Acnodes KD 81716
-
Page 1: User Manual

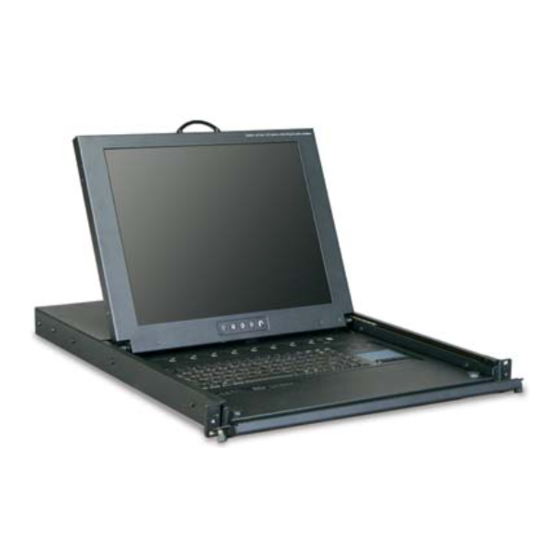

Model : KD 81716 User Manual Rev. Jan-03... - Page 2 LCD Keyboard Drawer with 16 ports KVM switch is ideal for application where space is critical. KD 81716 is a combination of keyboard, Touch Pad, KVM switch and TFT LCD packed into a drawer with features such as monitor flip up design, adjustable mounting brackets, built in LCD OSD, centralized control of 16 PCs.
-
Page 3: Packing Contents
Packing Contents KD 81716 LCD Keyboard Drawer with KVM switch User’s manual AC to DC Power Adapter w/power cord Rack Mount Kit Standard 3-in-1 KVM cable Before Unpacking It is very important to locate the LCD Keyboard Drawer with KVM switch in a suitable environment. -
Page 4: Important Safeguards
Important Safeguards Please read all of these instructions carefully before you use the device. Save this manual for future reference. Unplug the LCD Keyboard Drawer with KVM switch from the power outlet before cleaning. Do not spray liquid cleaners or aerosol directly on the device. Wet a cloth with a neutral detergent (e.g. clean water) and squeeze it tight, then clean the screen slightly with it. -
Page 5: Lcd Session
LCD Session Rev. Jan-03... -
Page 6: On-Screen Display (Osd)
OSD is the convenient way for a user to adjust the screen performance to his satisfaction. Power On/Off Menu / Selection Left Right 1. Entering the OSD Meun 2. Press the to display the OSD main menu. 3. Selecting icons for adjusting 4. -
Page 7: Customizing The Settings
Customizing the Settings 1. Brightness • To perform brightness adjustment of the input RGB signal 2. Contrast • To adjust the contrast level of the input signal 3. Phase • To optimize the picture quality by adjusting the sampling clock of the input RGB Signal 4. - Page 8 H - Position • To adjust the horizontal position of the OSD frame V - Position • To adjust the vertical position of the OSD frame Half Tone • To switch the OSD color from full color to half tone OSD Timeout •...
-
Page 9: Resolution Setting
Resolution Setting For Microsoft Windows Step 1 – Press right click on the desktop Step 2 – Choose “Properties” Step 3 – change the “Screen Resolution” Step 4 – change the “Screen refresh rate” Rev. Jan-03... - Page 10 My display doesn’t work, even though the computer appears to work 1. Make sure the power cable is securely plugged into the display 2. Make sure the display is turned on 3. Try turning the display off and then turning it on again 4.
- Page 11 Sun Server are using resolution at 1152 x 900 x 76Hz Supported resolution mode 640 x 480 x 70/75Hz 800 x 600 x 70/75Hz 1024 x 768 x 70/75Hz 1280 x 1024 x 75Hz (17” LCD) Note the Max. frequency of 13.3” is 70Hz You need to change the Sun Server resolution before you connect to LCD Display Please do the following procedure to change the resolution setting :...
-
Page 12: Technical Information
Technical Information Size Screen Type Display Area Contrast Ratio Viewing Angle Resolution Pixel pitch Response Time Brightness Panel Color Back Light Video Synchronization Range Input Signal Power Management Control Power OSD Control External Connection Power Input Video Input Size Screen Type Display Area Contrast Ratio Viewing Angle... -
Page 13: Kvm Session
KVM Session Rev. Jan-03... - Page 14 Selected Channel Channel select button Selected Channel - Displayed channel on monitor & red in LED Channel select button - Press to select channel from 1 - 8 Shift button - Press & Hold follow with a channel button to select channel from 9 - 16 Online Channel - Green LED state the PC has connected and Power on Bank no.
-
Page 15: Installation
Installation Before installation, please make sure all of peripherals and computers have been turned off. 1. Connect the Keyboard, VGA, Mouse cables to the computer ports of KVM switch 2. After Powering on computers and finishing the boot-up process, you can start to go KVM switch. - Page 16 Press “Bank” & “Channel” at the same time to reset the KVM switch to default setting • S.L. + S.L. + • S.L. + S.L. + Note: You also could press “up arrow key” or “down arrow key” longer time to speed up selecting the destination port •...
-
Page 17: Osd Menu
BANK : SYSTEM SYSTEM 03 SYSTEM 05 SYSTEM 07 OSD : SEC. CHANGE PASSWORD SCAN: SEC. CONSOLE ON/OFF ESC : QUIT TAB : NEXT / : SELECT PORT PgDn/PgUp: BANK SELECT Use “Tab” key to select items like Bank, OSD, SCAN, CHANGE PASSWORD, CONSOLE ON/OFF, etc…... - Page 18 BANK : SYSTEM SYSTEM 03 SYSTEM 05 SYSTEM 07 OSD : SEC. CHANGE PASSWORD SCAN: SEC. CONSOLE ON/OFF ESC : QUIT ENTER :COMPLETE TAB : NEXT INSERT :EDIT / : SELECT PORT PgDn/PgUp: BANK SELECT Rev. Jan-03 OSD Menu • PC Name List •...
-
Page 19: Osd - Password
ENTER PASSWORD : ESC : QUIT ENTER NEW PASSWORD : ESC : QUIT ENTER : COMPLETE RETYPE NEW PASSWORD : ESC : QUIT ENTER : COMPLETE NEW PASSWORD COMPLETE ESC : QUIT ENTER : COMPLETE Console On/OFF ON – any user can the console OFF –... - Page 20 Using 3 in 1 KVM cable connect from Bank 1’s “Cascade port” to Bank 2’s “Console port”. After connected please press “Bank” & “Channel” button on the front of the KVM switch to reset the KVM switch. Bank 1 Bank 2 Bank 3 Bank 8 (Max) Cascade level Max.
- Page 21 1. Don’t press any keys on the keyboard while the selected computer is booting up. Otherwise, it might cause the keyboard error or keyboard is not detected at PC side. 2. The computer boot up fine, but keyboard doesn’t work Make sure the keyboard works when directly plugged into the computer.
- Page 22 Technical Information PC Port PC Port Connector PS/2 Keyboard mini Din 6 pin (All Female Type) PS/2 Mouse Mini Din 6 pin VGA HDDB 15pin Daisy Chain Port Connector PS/2 Keyboard mini Din 6 pin (All Female Type) PS/2 Mouse Mini Din 6 pin VGA HDDB 15pin PC selection On Screen Display Manual, Hot Key, Push Button...
