All rights reserved. Product description and product specifications are subject to change without notice.
For l a stest product information, please v i s it Acnodes' website at www.acnodes.com
14628 Central Ave. Chino, CA 91710
Tel: 909. 597. 7588
Fax: 909. 597. 1939
© C opyright 2015 Acnodes C orp.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Acnodes KD8172

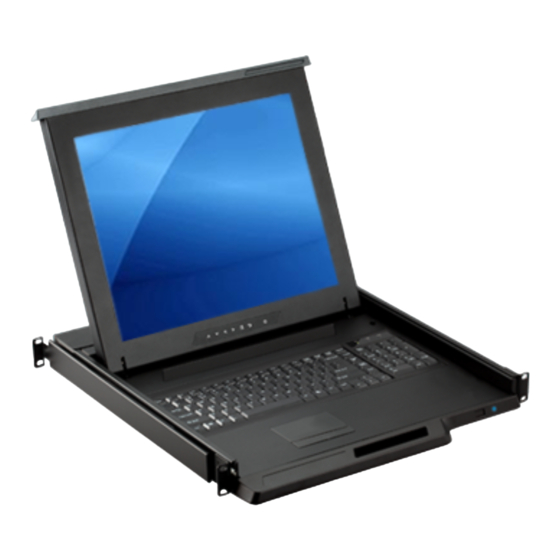

Summary of Contents for Acnodes KD8172

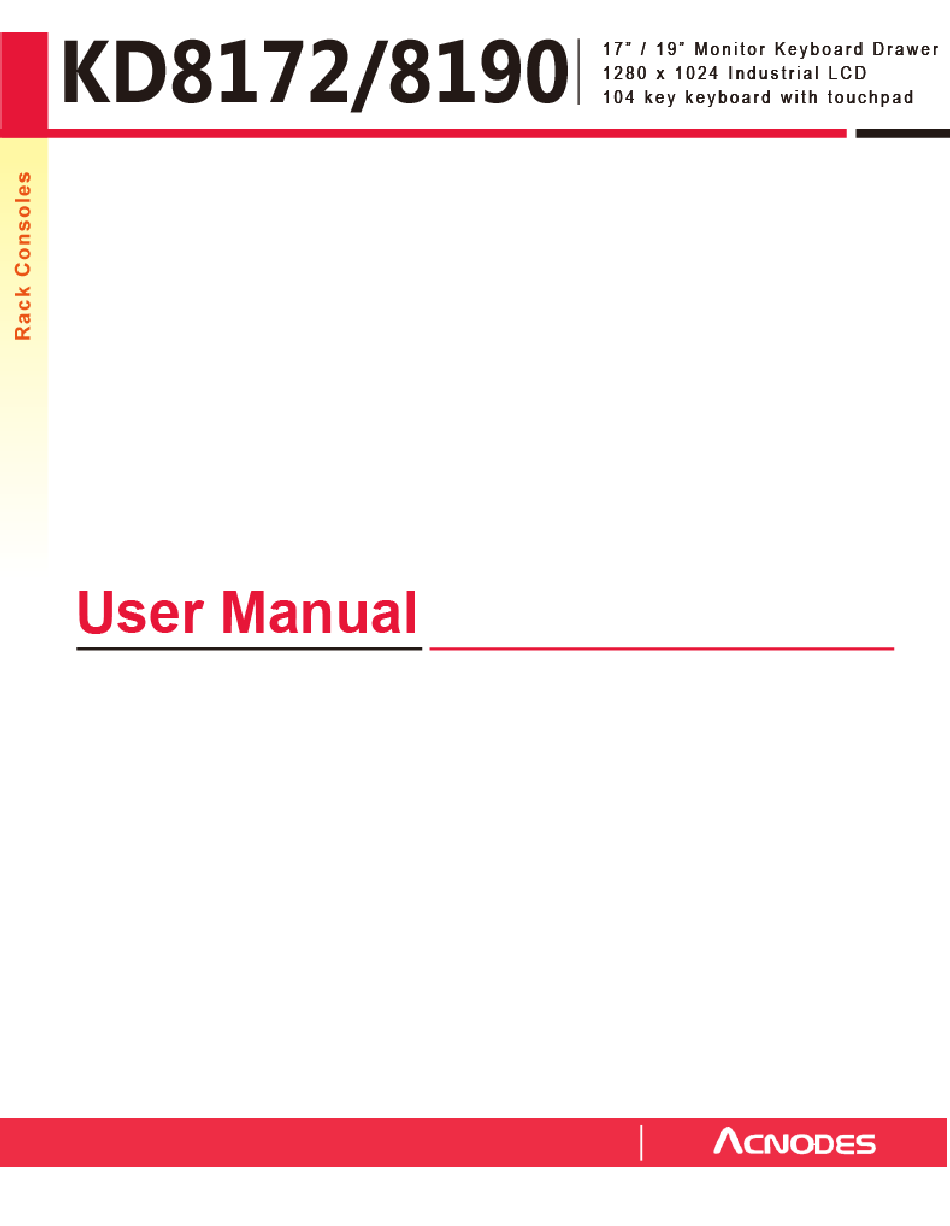

- Page 1 All rights reserved. Product description and product specifications are subject to change without notice. For l a stest product information, please v i s it Acnodes’ website at www.acnodes.com 14628 Central Ave. Chino, CA 91710 Tel: 909. 597. 7588 Fax: 909. 597. 1939...
- Page 2 Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > KD8172 / KD8190 Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 5 Connection < Part. 2 > Specifications / OSD Product Specifications P.7 - 8 Keyboard / Mouse Specifications On-screen Display Operation ( OSD ) P.10 - 11... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Package Content
< Part 1 > < 1.1 > Package Content KD81 72/ KD8190 unit X 1 - 6f t Combo KVM cable X 1 - Power cord X 1 - M6 s crew, ca ge nu t & cup w asher X 8 The above package content is only f or the single console models. - Page 6 Weight 441.6 x 460 x 44 mm 590 x 823 x 140 mm 12 k g 16.5 kg KD8172 series 17.4 x 18.1 x 1.73" 23.2 x 32.4 x 5.5” 26 lb 36 lb 441.6 x 500 x 44 mm...
-
Page 7: Installation
< 1.3 > Installation - How to install Installation Slides Step ¦ Insert the left and right rear mounting brackets into the LCD c onsole drawer. Step ¦ Measure the depth of the front and rear mounting rails. ¦ Align each rear mounting bracket to a suitable length. Step Complete the installation ¦... - Page 8 < 1.3 > Installation - How to install 2 post rack brackets Step ¦ Release front mounting ears before applying 2 post r ac k brackets. ¦ Insert rear m ounting brack ets into the LCD console drawer. Opt ion Model : MB-751-12 Step ¦...
- Page 9 < 1.3 > Installation- How to use the drawer ¦ Hold the handle and slide out the drawer. ¦ Flip up the LCD to a suitable angle. ¦ Operate the LCD cons ole drawer.
-
Page 10: Connection
< 1.4 > Connection to PS/2 or USB Server LCD console drawer LCD console drawer Combo Combo KVM cable KVM cable PS/2 server USB server < 1.4 > Connection to external KVM LCD console drawer LCD console drawer CE-6 Combo CE-6 Combo KVM cable KVM cable... -
Page 11: Product Specifications
< Part 2 > < 2.1 > Product Specifications KD8172 K D8190 Panel Manufactur er Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD Display pix el ( dots x lines ) 1280 x 1024 1280 x 1024 Brightness ( typ. - Page 12 Regulatory Safety Approval cUL, FCC & CE Power Power Supply Range Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consum ption Screen display ON 25W or less Power s aving m ode 4W or less Power button OFF 1W or less Environmental Operating Temperature...
-
Page 13: Keyboard / Mouse Specifications
< 2.2 > Keyboard / Mouse Specifications G keyboard integrated with touchpad G keyboard integrated with tr ackball Key force 55 ± 5g Travelling distance 3 ± 0.3m m Switch life > 10 million life cycle time Soft ware support MS W indows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Linux / Mac Supporting layouts... -
Page 14: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) M embrane Switch Funct ion Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed co ntrol Exit t he OSD screen Go back to the previous on-screen sub-men u o r... - Page 15 < 2.3 > On-screen Display Operation ( OSD ) OSD C onfiguration Page Image: for the brightness, contrast, color temp , red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AV L and mute Misc:...
- Page 16 ( 1 ) For AV2.2 upgrade, either HDMI or DVI-D is provided. ( 2 ) For the above options, KD8172 depth will be extended from 460mm ( 18.1" ) to 530mm ( 20.9" ) and KD8190 depth will be extended from 480mm ( 18.9” ) to 570mm ( 22.4” )
- Page 17 ( 1 ) Option excludes 1 x power cord and 1 x AC power adapter. ( 2 ) KD8172 depth will be extended from 460mm ( 18.1” ) to 530mm ( 20.9” ) ( 3 ) KD8190 depth will be extended from 480mm ( 18.9” ) to 570mm ( 22.4” )
