OPERATOR'S MANUAL
CAUTION
BEFORE INSTALLING AND
USING THIS AIR CONDITIONER,
IT IS IMPORTANT THAT THIS
MANUAL BE READ AND
UNDERSTOOD THOROUGHLY
900-034-08 (2/19)
(CDR: 20131)
Keep This Manual
With Air Conditioner

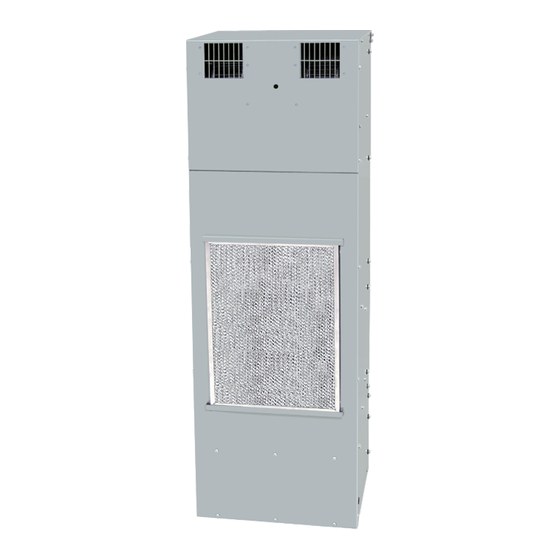

AIR CONDITIONER
TRIMLINE
NP47 SERIES
7,000 & 10,000 BTU/H
Find additional information on this
model at kooltronic.com, or use the
Technical
Documents
below.
Technical
Documents
KOOLTRONIC, INC.
30 Pennington-Hopewell Road
Pennington, NJ 08534
FAX: 609 • 466-1114
QR
code
609 • 466-3400
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kooltronic Trimline NP47 Series
Summary of Contents for Kooltronic Trimline NP47 Series
- Page 1 TRIMLINE NP47 SERIES 7,000 & 10,000 BTU/H Keep This Manual Find additional information on this model at kooltronic.com, or use the Technical Documents code With Air Conditioner below. Technical Documents AIR CONDITIONER OPERATOR'S MANUAL CAUTION KOOLTRONIC, INC. BEFORE INSTALLING AND...
-
Page 2: Table Of Contents
Warranty I. Introduction Kooltronic Air Conditioners are designed to provide a cool, dehumidified environment for your electronic components. There are models to fit virtually all sizes and shapes of electronic enclosures, in capacities ranging from 1,000 to 30,000 BTU/H. Our "closed-loop" design also ensures that your components will not be exposed to hot, dirty operating conditions. -
Page 3: Incoming Inspection
Manual. See section VI PRE-INSTALLATION TESTING. 2) Before operating the Kooltronic Air Conditioner be certain that it is placed in its correct mounting position. All Air Conditioners containing an MM, NM, P, or V as part of the model number are designed to operate in a vertical position only. -
Page 4: Product Identification Label
IV. Product Identification and Nameplate Each Kooltronic Air Conditioner includes an identification nameplate. This nameplate provides: Model Number Serial Number Electrical power characteristics Maximum and minimum ambient operating temperatures Cooling capacity Type and amount of refrigerant required for recharging Design Pressure... -
Page 5: Principles Of Operation
COOL AIR TO ENCLOSURE Kooltronic Air Conditioners are required when the equipment operating temperature must be kept near or lower than the ambient room temperature, and/or the cabinet must be sealed from dust, fumes, oil, corrosives and other contaminants. This Air Conditioner utilizes a "Closed-Loop Cooling System" to ensure optimum performance of the installed components. -
Page 6: Pre-Installation Testing
14. If any cover plug is removed to adjust the unit, make certain to put back in place to maintain the integrity of the closed-loop airflow system. NOTE: Before shipment all Kooltronic, Inc. Air Conditioners are subjected to a performance test. -
Page 7: Specific Model Data
Dimensions (inches) are for reference only and are subject to change. Kooltronic Air Conditioners have been engineered to be installed easily. To avoid damaging your Air Conditioner, please read the following information before installation: 1. Remove and save the four screws holding the Mounting Template and Assembly Bracket (M/TAB) to the unit. -
Page 8: Drawings And Dimensions
* Other drain outlets are available - contact KOOLTRONIC Dimensions (inches) are for reference only and are subject to change. -
Page 9: Technical Data
0452-03 0452-03 Condenser Blower Assembly 8060-00-11 8060-00-11 Evaporator Blower Motor 0261-08 0261-08 Evaporator Blower Motor Capacitor 0452-03 0452-03 Evaporator Blower Assembly 6015-00-129 6015-00-129 Filter 12251F 12251F NOTE: Part Numbers shown are for 115v/60Hz/1Ø. For 230v/60Hz/1Ø and all 50Hz consult Kooltronic. -
Page 10: Wiring Schematics
Wiring Schematic EVAP OPTIONAL SWITCH BLOWER UL LISTED MOTOR UNITS ONLY CAP. SUPPRESSOR CRANKCASE HEATER RELAY SHORT OPTIONAL CYCLE SHORT TIMER CYCLE PROTECTOR THERMAL HEATER OPTIONAL CUTOUT HEATER T-STAT RELAY T-STAT COMPR. START RELAY COND BLOWER MOTOR PRESSURE CAP. SWITCH OPTIONAL NP47 SERIES WD-201 REV. -
Page 11: Maintenance
3) The filters may be sprayed with Kooltronic A-16 Filter Recoating Adhesive to trap fine airborne contaminants, or they may simply be dried and reinstalled as strainer type filters. Recoating is recommended for best results. - Page 12 Refer to the data on the unit name plate which specifies the type of refrigerant and the amount of charge in ounces. E. Relocation If your Kooltronic Air Conditioner has to be moved to another location by truck, the following precautions should be taken: De-mount Air Conditioner from equipment, controller or enclosure.
-
Page 13: Trouble Shooting
IX. Trouble-Shooting Each Kooltronic Air Conditioner is engineered for performance and built for reliability. They are designed to require no routine maintenance other than the cleaning of ambient air filters. If your air conditioner should require warranty service, please contact Kooltronic. If you require service out of warranty, we have compiled a trouble-shooting chart to assist your service personnel. -
Page 14: Warranty
THIS WARRANTY CONSTITUTES THE ENTIRE WARRANTY WITH RESPECT TO THE PRODUCT AND IS IN LIEU OF ALL OTHERS, EXPRESSED OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY AND WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND IN NO EVENT IS KOOLTRONIC RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY NATURE WHATSOEVER.
