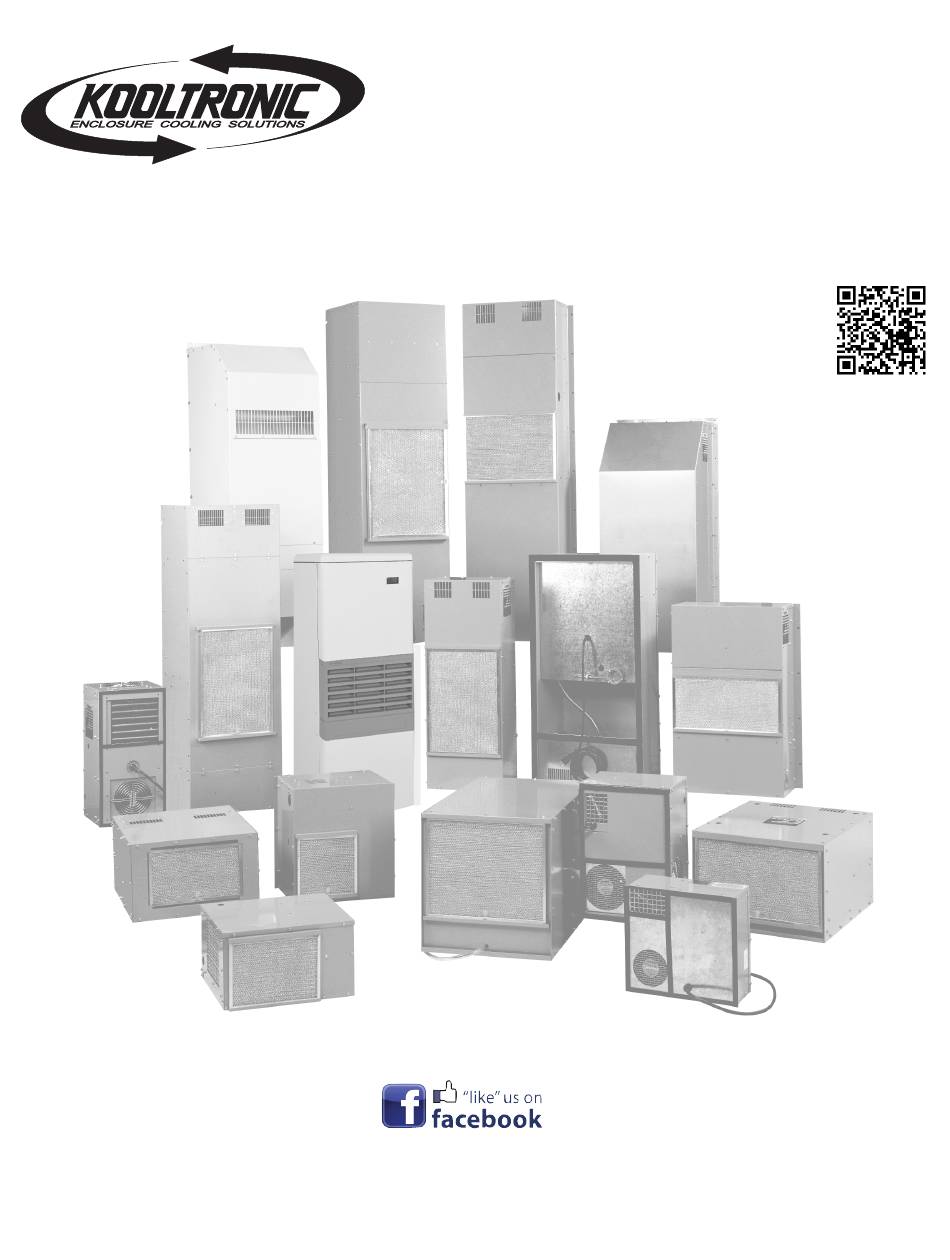

OPERATOR'S MANUAL
CAUTION
BEFORE INSTALLING AND
USING THIS AIR CONDITIONER,
IT IS IMPORTANT THAT THIS
MANUAL BE READ AND
UNDERSTOOD THOROUGHLY
900-039-07 (12/21)
(CDR: 20369)
Keep This Manual
With Air Conditioner

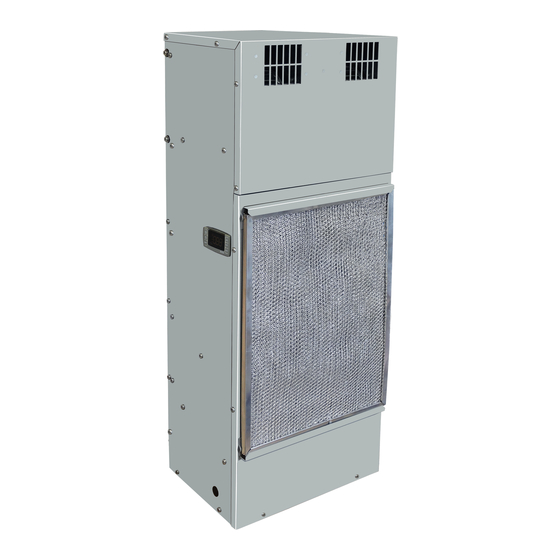

AIR CONDITIONER
TRIMLINE SERIES
KA4C4NP33L
with Serial Numbers up to and including L17A3573
K2A4C4NP33L
with Serial Numbers up to and including M17A4077
30 Pennington-Hopewell Road
Find additional information on this
model at kooltronic.com, or use the
Technical
Documents
below.
Technical
Documents
KOOLTRONIC, INC.
Pennington, NJ 08534
609 • 466-3400
FAX: 609 • 466-1114
www.kooltronic.com
QR
code

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Trimline KA4C4NP33L and is the answer not in the manual?

Questions and answers

Related Manuals for Kooltronic Trimline KA4C4NP33L

Summary of Contents for Kooltronic Trimline KA4C4NP33L

  • Page 1 KA4C4NP33L with Serial Numbers up to and including L17A3573 K2A4C4NP33L with Serial Numbers up to and including M17A4077 Keep This Manual Find additional information on this model at kooltronic.com, or use the With Air Conditioner Technical Documents code below. Technical...

  • Page 2: Table Of Contents

    10 - 11 Trouble Shooting Warranty NOTE: Wiring Schematics are available on the specific model page of the Kooltronic website. I. Introduction Kooltronic Air Conditioners are designed to provide a cool, dehumidified environment for your electronic components. There are models to fit virtually all sizes and shapes of electronic enclosures, in capacities ranging from 1,000 to 30,000 BTU/H.

  • Page 3: Incoming Inspection

    Manual. See section VI PRE-INSTALLATION TESTING. 2) Before operating the Kooltronic Air Conditioner be certain that it is placed in its correct mounting position. This Air Conditioner is designed to operate in a vertical position only. This placement must be done a minimum of 5 minutes prior to operating in order to allow the compressor oil to drain to the compressor sump area.

  • Page 4: Product Identification And Nameplate

    IV. Product Identification and Nameplate Each Kooltronic Air Conditioner includes an identification nameplate. This nameplate provides: Model Number Serial Number Electrical power characteristics Maximum and minimum ambient operating temperatures Cooling capacity Type and amount of refrigerant required for recharging Design Pressure...

  • Page 5: Principles Of Operation

    EVAPORATOR HEAT EXCHANGER Kooltronic Air Conditioners are required when the equipment operating temperature must be kept near or lower than the ambient room temperature, and/or the cabinet must be sealed from dust, fumes, oil, corrosives and other contaminants. This Air Conditioner utilizes a "Closed-Loop Cooling System" to ensure optimum performance of the installed components.

  • Page 6: Pre-Installation Testing

    14. If any cover plug is removed to adjust the unit, make certain to put back in place to maintain the integrity of the closed-loop airflow system. NOTE: Before shipment all Kooltronic, Inc. Air Conditioners are subjected to a performance test.

  • Page 7: Specific Model Data

    Dimensions (inches) are for reference only and are subject to change. Kooltronic Air Conditioners have been engineered to be installed easily. To avoid damaging your Air Conditioner, please read the following information before installation: 1.

  • Page 8: Drawings And Dimensions

    Drawings and Dimensions NP33 SERIES * Other drain outlets are available - contact KOOLTRONIC Dimensions (inches) are for reference only and are subject to change.

  • Page 9: Technical Data

    Technical Data Ambient Approximate BTU/H Temp. °F Running Weight " " Model Rating Max./Min. Volts Amps (lbs.) KA4C2NP33L 2000 125/50 115/100 60/50 12.8 KA4C2NP33L56 2000 125/50 50/60* 12.8 K2A4C2NP33L 2000 120/50 230/200 60/50 K2A4C2NP33L5 2000 120/50 KA4C3NP33L 3000 125/50 115/100 60/50 12.8 KA4C3NP33L56...

  • Page 10: Maintenance

    3) The filters may be sprayed with Kooltronic A-16 Filter Recoating Adhesive to trap fine airborne contaminants, or they may simply be dried and reinstalled as strainer type filters.
  • Page 11 Refer to the data on the unit nameplate which specifies the type of refrigerant and the amount of charge in ounces. E. Relocation If your Kooltronic Air Conditioner has to be moved to another location by truck, the following precautions should be taken: De-mount Air Conditioner from equipment, controller or enclosure.

  • Page 12: Trouble Shooting

    IX. Trouble-Shooting Each Kooltronic Air Conditioner is engineered for performance and built for reliability. They are designed to require no routine maintenance other than the cleaning of ambient air filters. If your air conditioner should require service, we have compiled a trouble-shooting chart to assist your service personnel.

  • Page 13: Warranty

    THIS WARRANTY CONSTITUTES THE ENTIRE WARRANTY WITH RESPECT TO THE PRODUCT AND IS IN LIEU OF ALL OTHERS, EXPRESSED OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY AND WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE AND IN NO EVENT IS KOOLTRONIC RESPONSIBLE FOR ANY CONSEQUENTIAL DAMAGES OF ANY NATURE WHATSOEVER.
