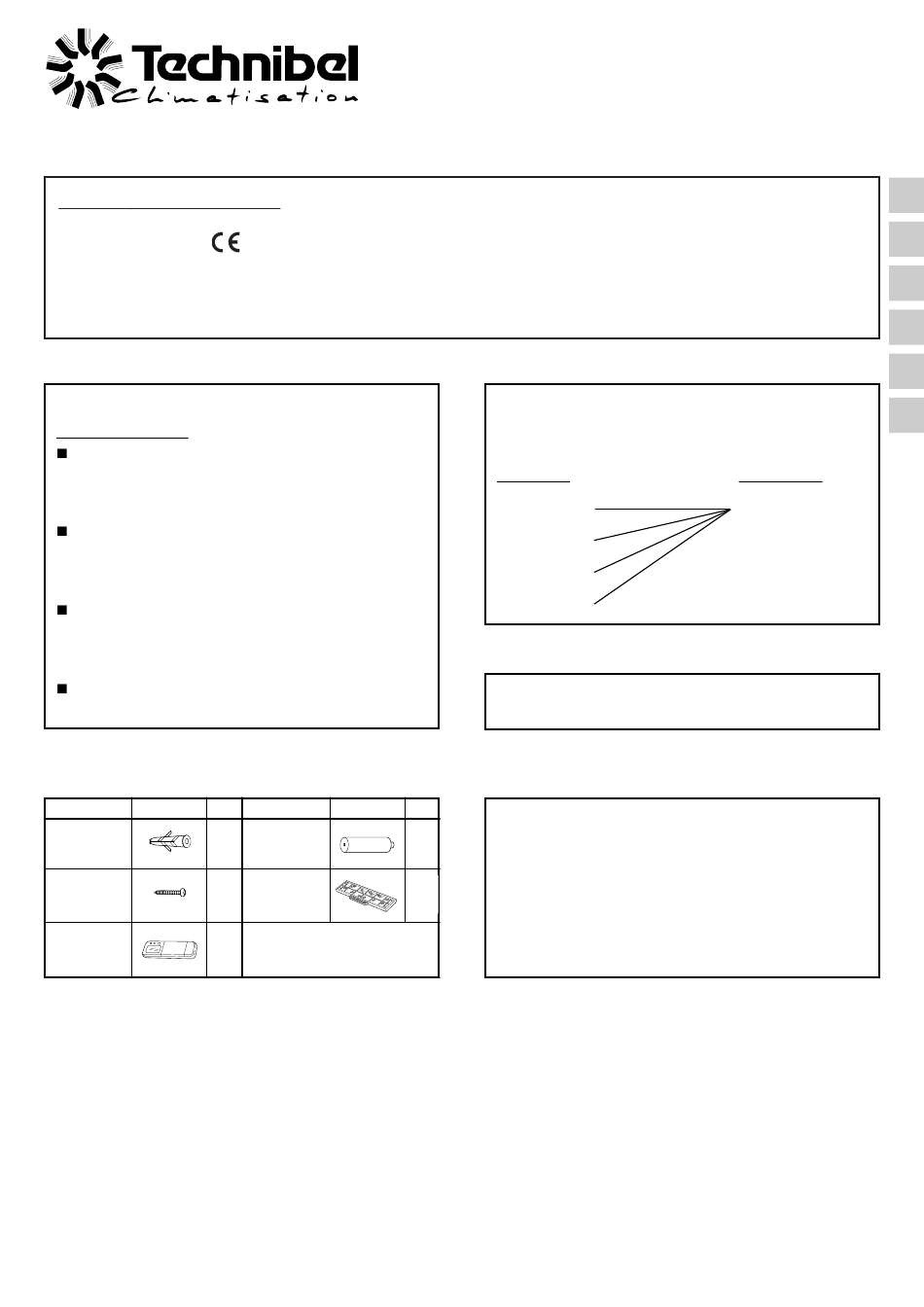

DECLARATION OF CONFORMITY
This product is marked
– Low voltage no. 73/23 EEC and 93/68 EEC.
– Electromagnetic compatibility no. 89/336 ECC, 92/31 EEC and 93/68 EEC.
This declaration will become void in case of misuse and/or non observance though partial of manufacturer's installation and/or
operating instructions.
HEAT PUMP MODELS
OPERATING LIMITS
Cooling Maximum conditions
Outdoor temperature : 46°C D.B.
Room temperature
: 32°C D.B. / 23°C W.B.
Cooling Minimum conditions
Outdoor temperature : 19°C D.B.
Room temperature
: 19°C D.B. / 14°C W.B.
Heating Maximum conditions
Outdoor temperature : 24°C D.B. / 18°C W.B.
Room temperature
: 27°C D.B.
Heating Minimum conditions
Outdoor temperature : –5°C D.B. / –6°C W.B.
ACCESSORIES SUPPLIED WITH THE UNIT
PARTS
FIGURE
Q.TY
RAWL PLUG
6
TAPPING
6
SCREW
REMOTE
1
CONTROL UNIT
as it satisfies Directives:
PARTS
FIGURE
Q.TY
AAA ALKALINE
2
BATTERY
AIR CLEAN
2
FILTER
37.4163.192.1
INSTALLATION INSTRUCTIONS
- Split system air conditioner -
Model Combinations - 4 units -
Combine indoor and out door units only as listed below.
Indoor Units
MCA90MR5TAA
MCA90MR5TAA
MCA90MR5TAA
MCA90MR5TAA
Power Supply:
220 - 240 V ~ 50 Hz
Tools required for installation (not supplied)
11. Standard screwdriver
12. Phillips head screwdriver
13. Knife or wire stripper
14. Tape measure
15. Level
16. Sabre saw or key hole saw
17. Hacksaw
18. Core bits ø 5
06/2001
HEAT PUMP MODELS
Outdoor Units
GR360M4R5TAA
19. Hammer
10. Drill
11. Tube cutter
12. Tube flaring tool
13. Torque wrench
14. Adjustable wrench
15. Reamer (for reburring)
16. Hex wrench
EG
I
F
E
P
GR
