installing the dishwasher

Be sure that you or your installer follow these instructions closely so that the new
dishwasher works properly and that you're not at risk of injury when washing dishes.

STEP 1 CHECK THE PARTS AND TOOLS

Before starting on the installation, prepare all the necessary tools and parts required to install the
dishwasher. This will save installation time and simplify the installation process.

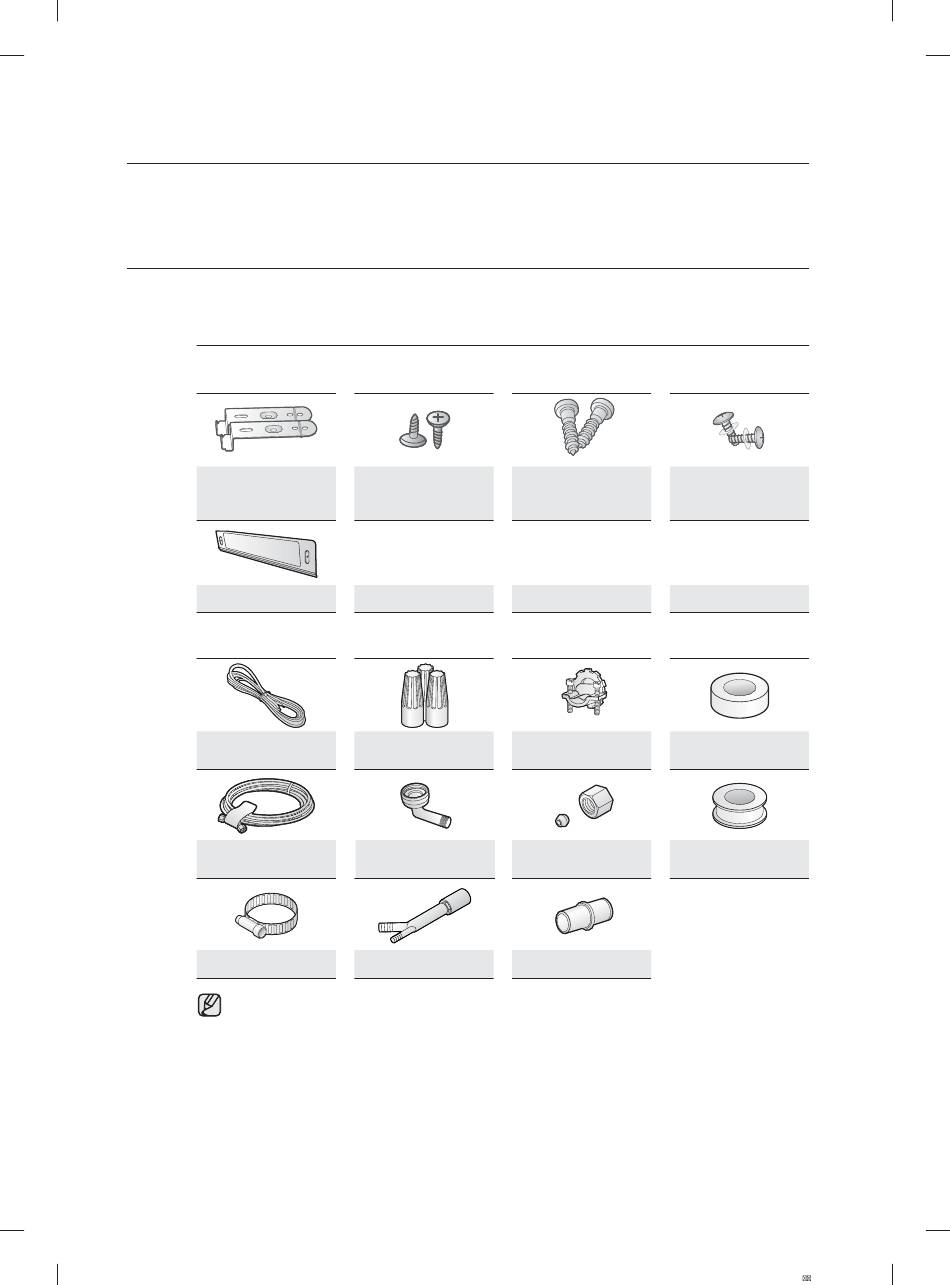

Parts required
Provided with the dishwasher. Check when you unbox the dishwasher in Step 5.
2 Installation Brackets
Kick Plate
Not provided
Power cable
Hot water supply line
Hose clamp
For the hot water supply line – We strongly recommend using
compression fi tting or a fl exible stainless steel braided hot water supply line.
[Warning: Do not use plastic tubing. Plastic tubing can deteriorate over time and cause a leak inside
the tube fi tting.]
You also need a 90° elbow with
your hot water supply line (copper tubing/compression fi tting or braided hose) on the other.
For the power cable, we recommend a jacketed 12-2 cable with ground. Note that some local codes
may require the cable to have a BX style metal jacket.
6_ installing the dishwasher
installation_DD81-01864B-022_EN_160314.indd Sec3:6 installation_DD81-01864B-03_EN_160314.indd Sec3:6
2 Flat Head Screws
(For the installation
(for the side walls)
bracket)
Twist on wire
connector
90° Fitting ¾" ) (
Tube fi ttings
Air gap Rubber connector
3
/ " N.P.T. external pipe threads on one end and a fi tting sized to fi t
4
2 Screws 2 Screws
(for the kick plate)
Electrical tape &
Strain relief
Standard duct tape
Tefl on ® tape or sealing
compound
3
/ " minimum O.D. copper tubing with a
8
