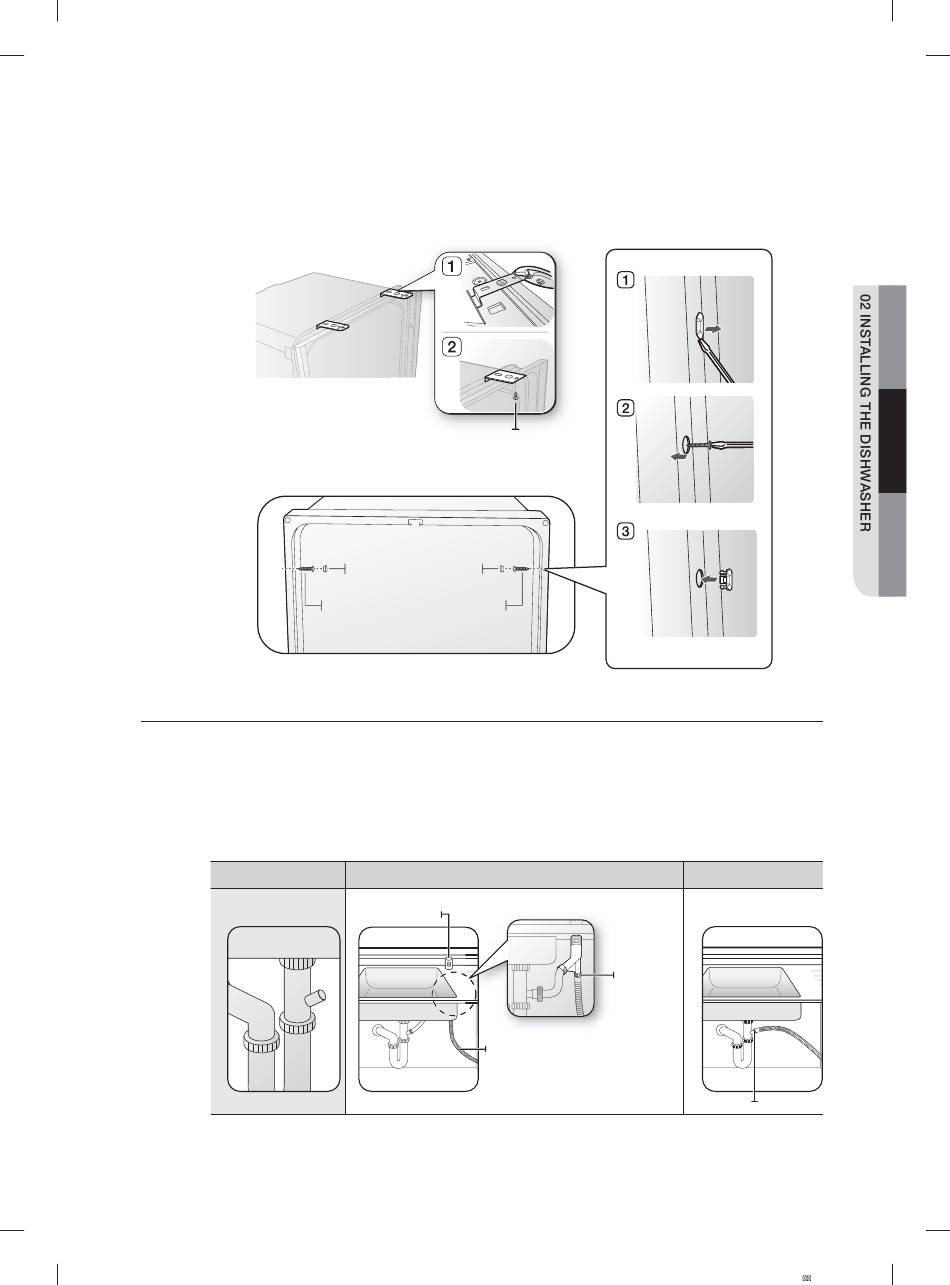

STEP 10 CONNECTING THE DRAIN HOSE

1. Check the parts on the sink to which the drain hose will be connected.
2. There are several ways to insert the drain hose into the drain hose connector of the sink,
as shown in the following fi gures. You must connect the drain hose in accordance with the
water pipe installation regulations in your region.
<Figure 10>
Case 1. Without disposal
Without disposal
installation_DD81-01864B-0 _EN_160314.indd Sec3:17 installation_DD81-01864B-01_EN_160314.indd Sec3:17 3
Screw to countertop
Tub spacer cap
Screw to side wall
With an air gap/without disposal
Air gap
Hose clamp
Without an air gap
Drain hose
Hose clamp
installing the dishwasher _17
