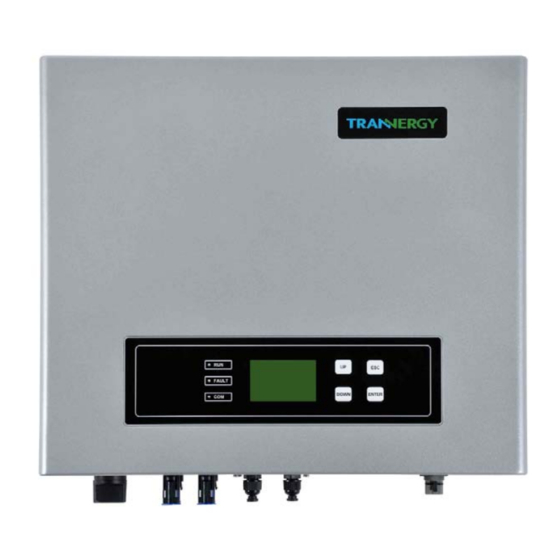

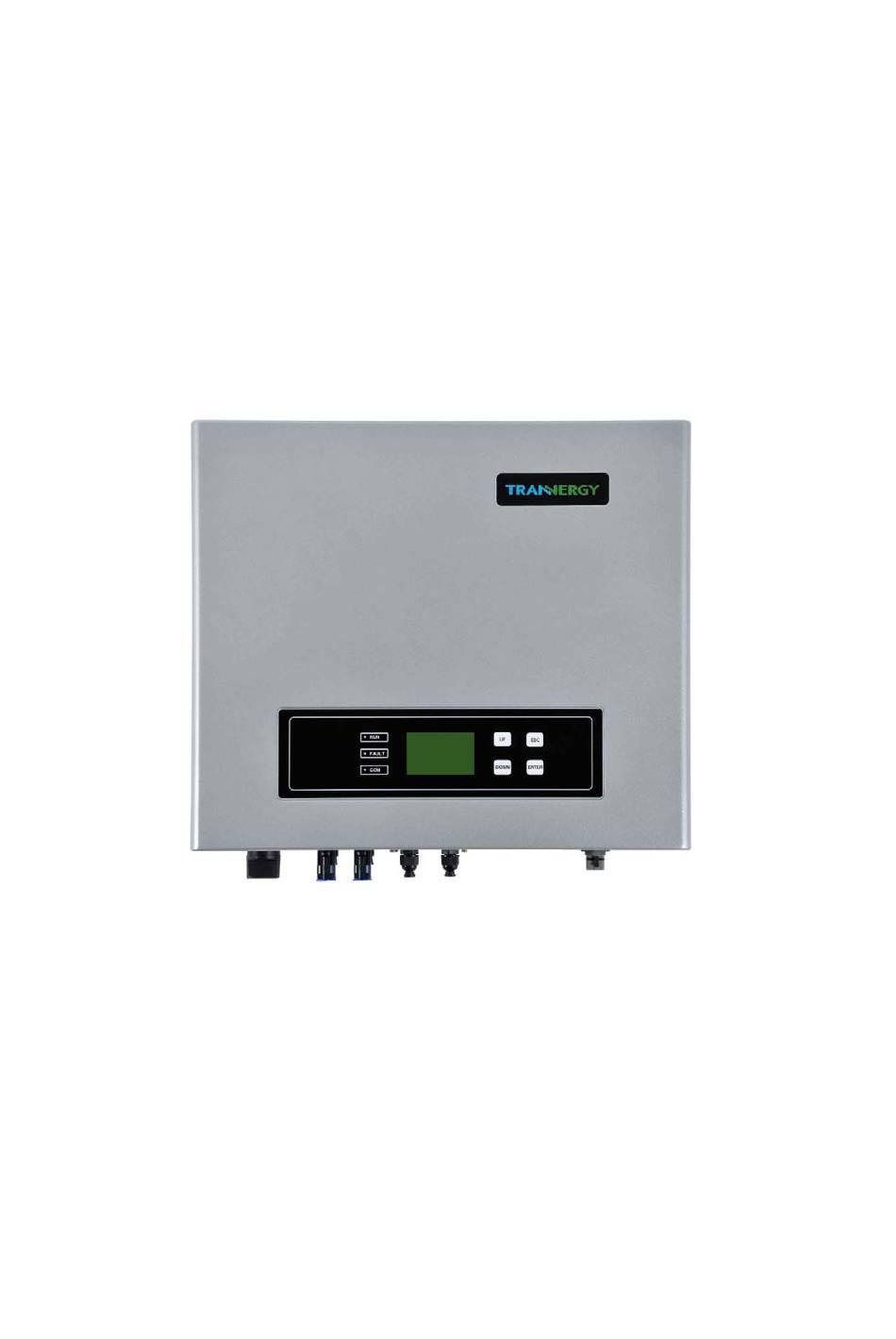

- Page 1 User Manual TRB4000TL/TRB5000TL/TRB6000TL/TRB8000TL/TRB9000TL/ TRB010KTL...
-
Page 2: Table Of Contents
Contents Copyright Declaration ........................3 1. Introduction ..........................4 1.1. Introduction ........................4 1.2. How to Use this manual ..................... 4 1.3. Applied Designations (Warning, Caution, Note) ............... 4 1.4. Important Safety Information ..................... 4 1.5. General Safety Rules for Working on Electrical Equipment ..........5 1.6. - Page 3 5.4. Function Keys ........................24 5.4.1. Configure ........................24 5.4.2. Energy yield ......................26 5.4.3. Inverter state ......................27 5.4.4. Device Information ....................27 5.4.5. log Information ......................27 5.5. Display of Fault ........................ 28 6. Communication and Monitoring ..................... 29 6.1.
-
Page 4: Copyright Declaration
Copyright Declaration The copyright of this manual belongs to Trannergy Co., Ltd.. Any corporation or individual should not plagiarize, partially copy or fully copy it (including software, etc.), and no reproduction or distribution of it in any form or by any means. All rights reserved. -
Page 5: Introduction
Check for damage to inverter and packaging. If you are in doubt, please contact your supplier before installing the inverter. Check the voltages of the solar modules and make sure they are within the limits of the Trannergy inverter specifications before connecting them to the inverter. -
Page 6: General Safety Rules For Working On Electrical Equipment
Unauthorized changes of functional safety parameters may cause injury or accidents to people or inverter. Additionally it will lead to the cancelling of all inverter operating approval certificates. The Trannergy inverters in the TRB range are all designed according to international safety requirements. -
Page 7: System Sizing
The limitation depends mainly on internal and ambient temperatures. The limitation is calculated continuously and always allows the maximum possible amount of energy to be produced. Please use the tool supplied by Trannergy when dimensioning a photovoltaic system. User Manual... -
Page 8: Technical Description Of Inverters
2. Technical Description of Inverters 2.1. Mechanical design Figure 2-1 shows the outline dimensions of TRB4000TL/5000TL/6000TL/8000TL/9000TL/010KTL Figure 2-1 Outline dimensions of TRB4000TL/5000TL/6000TL/8000TL/9000TL/010KTL The AC output terminal is most length part at the bottom of inverter, so take care of the AC output terminals, do not make it stand on the ground or other materials while moving or lifting the inverters otherwise will make terminal damaged. -
Page 9: Electrical System Design
2.2. Electrical system design Figure 2-3 wiring diagram of the whole TRB4000TL/5000TL/6000TL/8000TL/9000TL/010KTL system. Please refer to chapter 4 for the detail connecting and install methods. 2.3. The illustration of derating and limit the input power To avoid inverter to be damaged by over temperature or over current. ... -
Page 10: Operation Mode Illustration Of The Inverter
3. Operation mode illustration of the inverter Our inverter has five operation modes during the whole work process; they are wait, check, normal, fault and flash modes. Its detail illustration is shown by Figure 3-1 below. Check Mode Flash Event Flash Event Default: Wait Mode... -
Page 11: Fault Mode
calculate the generated energy per day/per month/per year automatically, save the number in EEPROM and the number can be read from the HMI. 3.4. Fault mode When there are fault during the inverter running, it will stop generating power and turn to fault mode and display the fault information on LCD. -
Page 12: Installation And Startup
Note！ Inverters must be installed by qualified person. Trannergy assures the product guarantee of the TRB series inverters during five years after your purchase, if the installation site does not meet the instructions described in this manual, it is out of warranty. The warranty is limited to the costs of repair and/or replacement of the product by Trannergy only. - Page 13 6X Φ 10,45-50mm,Deep Figure 4-2 Dimensions of drilling holes Note！ Keep drilling vertical to the wall, and don’t shake when drilling to avoid damage to the wall. It need repositioning and drilling holes if the hole with much error. Step2: Put the expansion pipe showing in Figure 4-3 into the hole vertically, use hammer to tap the pipe into the wall completely.
-
Page 14: Electrical Connection
Setp4: Hung the inverter on to the mounting panel: Figure 4-5 Hung the inverter 4.3. Electrical connection 4.3.1. Connection to the grid (AC output) Attention Safeguard each inverter with an individual manual AC breaker in order that inverter can be safely disconnected under load when installation & maintenance. - Page 15 Figure 4-7 Step4: Put the wires through Screw Cap, Adapter Body of the AC female connector: Figure 4-8 Step5: Connect the cables according to the following pictures: Figure 4-9 Attention! Please ensure the corresponding relationship between polarities the core cable and the hole of the terminal is correct. Step6: Screw these components tightly after connecting the wires: Figure 4-10 Step7: Connect AC female terminal to AC male terminal on inverter and then...
-
Page 16: Connection To Pv Generator (Dc Input)
4.3.2. Connection to PV generator (DC input) Attention! Safeguard each inverter with an individual manual DC breaker in order that inverter can be safely disconnected under load when installation & maintenance. The breaker should have certain capacity of over current and over voltage. - Page 17 Figure 4-13 Insert striped cable into contact barrel and insure all conductor strands are captured in the contact barrel and the conductors are visible in the contact barrel observation hole. See below figures. Figure 4-14 Crimp contact barrel by using the hex crimping die. See below figures Figure 4-15 ...
- Page 18 Insert contact cable assembly into back of male and female connector. A “click” should be heard or felt when the contact cable assembly is seated correctly. See below figures. Figure 4-17 Wrest the cap by using the torque of 2.6~2.9NM. Figure 4-18 Step2: Mate and separate Helios H4 connector: ...
-
Page 19: Test Run
tool (Ring tool or wrench tool) to separate. And while using the ring tool or wrench tool, please make sure the wedge side of the fingers faces the female connector and push the tool down. Then separate the connector by hand. See below figures. -
Page 20: Human Machine Interface
5. Human Machine Interface 5.1. Control and Display Panel Info provided here mainly includes LED display, LCD display, function keys and display fault etc. All function including parameter review, setting, and malfunction info etc can be realized at this interface. It is showing as the follow (Figure 5-1). Figure 5-1 Control and Display Panel Object Description... -
Page 21: Led Display
OK Button: confirm the selection. UP Button: move cursor to up selection or increase the values. DOWN Button: move cursor to down or decrease the values. ESC Button: exit current menu into main menu. 5.2. LED Display TRB4000TL/5000TL/6000TL/8000TL/9000T/010KTL are equipped with three LEDs including “Green”, “Yellow”... -
Page 22: Lcd Display
For details, please refer to table as below: Status Detailed Message Green Normal TRB inverters is working normally. Communication state TRB inverters is communicating with other devices. Yellow Burning software/ The firmware is upgraded. Software upgrade GFCI Failure The GFCI detection circuit is abnormal. AC HCT Failure The AC output sensor is abnormal. - Page 23 keys. On the top, it always shows working status and Ethernet status, The left area is for displaying parameter info or energy wave; On the right, it always shows power, E-today, E-total; At the bottom of LCD display, time and date will be shown (Figure 5-2 Main Interface 1) When press “enter”...
- Page 24 Object Description Working status of inverter and Ethernet Real-time power of inverter. Power generated today in kilowatt hours. Total power generated since inverter starting up. Display date & time. Specific parameters, curve display area. Main menu: generated inverter state, energy yield, Pull-down menu under main menu.
-
Page 25: Function Keys
5.4. Function Keys There are four function keys, by which users can choose menus on LCD and realize online parameter reviewing & setting etc. 5.4.1. C onfigure 5.4.1.1. Language and Time In main menu, Move the cursor to “settings” by pressing the “up” or “down” key; Press the “enter”... - Page 26 Notes: After setting the “Language”, “Date” and “Time”, press the “down” key to “ok”, and then press “enter” to save setting. If pressing “esc” to discard setting. 5.4.1.2. S afety P arameters S etting pressing the “enter” key, you will find a pull-down menu. Please move the cursor to “Safety Parameters”...
-
Page 27: Energy Yield
Figure 5-9 Clear Data Verify Interface Notes: 1) This operation step requires password (default value: 1001). 2) If this operation is done, all the data in the memory will be cleared, so backup of all the data before clear is recommended. 5.4.1.4. -
Page 28: Inverter State
Using the same operating procedures, you can check “E- Month”, “E-Year”. 5.4.3. Inverter state Press the “OK” key, and then you will find a pull-down menu. Please move the cursor to “inverter state” by pressing the “up” or “down” key, and then press “enter”... -
Page 29: Display Of Fault
Figure 5-15 Error Messages Interface 5.5. Display of Fault When inverter cannot work normally and faults haven’t been solved, the specific fault information will show in window on the LCD, showing when the fault happened and the error information. At the same time, the red LED lights up and the green LED goes out. -
Page 30: Communication And Monitoring
6. Communication and Monitoring 6.1. Communication Interfaces This product has a communication interface RS-232,RS-485/422and WiFi/ GPRS/ Ethernet (optional). Operating information like output voltage, current, frequency, fault information, etc., can be delivered to PC or hardware storage devices or other monitoring equipment via communication interface. 6.2. -
Page 31: Rs-485/422 Communication
3 TX termination of inverter connect with RX termination of USB to RS-485/422 converters, RX termination of inverter connect with TX termination of USB to RS-485/422 converters. 6.2.3. WiFi/GPRS/Ethernet Communication can be communicated with . Trannergy can WiFi/ GPRS/ Ethernet inverters User Manual... -
Page 32: Usb Communication
At Apple’s and Android’s app store, you can input the key words: Trannergy-log, then you can download and install the Trannergy-log to your Mobile equipment. After the download and installed, input your user name and password, then visit your station,(we supply a free demo, for the users who do not register)choose the power station and enter the main interface, then you the daily energy etc. -
Page 33: Maintenance And Repair
7. Maintenance and Repair 7.1 Routine maintenance Generally, the inverter needn’t to maintain or calibrate, but you need to ensure the heat sink uncovered by the dust or dirty things. In order to prove the inverter’s normal function and long life, you best to clean the inverter and heat sink regularly and ensure there is enough space for air flow around the heat sink. -
Page 34: Technical Data
8. Technical data MODEL TRB4000TL TRB5000TL TRB6000TL TRB8000TL TRB9000TL TRB010KTL Rated AC power 4000 W 5000 W 6000 W 8000 W 9000 W 9600 W Maximum AC power 4000 VA 5000 VA 6000 VA 8000 VA 9000 VA 10000 VA... -
Page 35: Qualification
9. Qualification We grant a warranty of 60 months as standard, starting from the date of the purchase invoice marked. We will only perform warranty services when the faulty unit is returned to us together with a copy of the invoice and warranty card which are issued by the dealer to the user. -
Page 36: Contact Information
Loosterwegnoord 2J, 2161AP Lisse, The Netherlands Email: service@trannergy.com Hotline: +31 2 02170801 Trannergy Australia Service Center Email: service@trannergy.com Hotline: +61 (0)9 2188 2117 Signature: Date: Mar.1 2015 For further information of Trannergy warranty regulation and reliability, please visit www.trannergy.com User Manual... -
Page 37: Appendix A: Faq (Frequently Asked Questions)
Appendix A: FAQ (Frequently asked questions) Sometimes, the PV system does not work normally; we recommend the following solutions for average troubleshooting. This can help the technician to understand the problem and take a proper action. LCD display Possible actions Isolation Fault 1. -
Page 38: Appendix B: Abbreviation
shut down. This is due to insufficient power generated and it is normal working state. If sunlight strengthens or energy increase to support the inverter’s startup, while the problems remain, please call service. Except the frequent problems as above, if you still have any problems which cannot be solved, please contact us and we will offer the best services as we can. - Page 39 P/N: 540-00033-02 Ver: 00...
