Summary of Contents for Ovislink Air Live SG-101

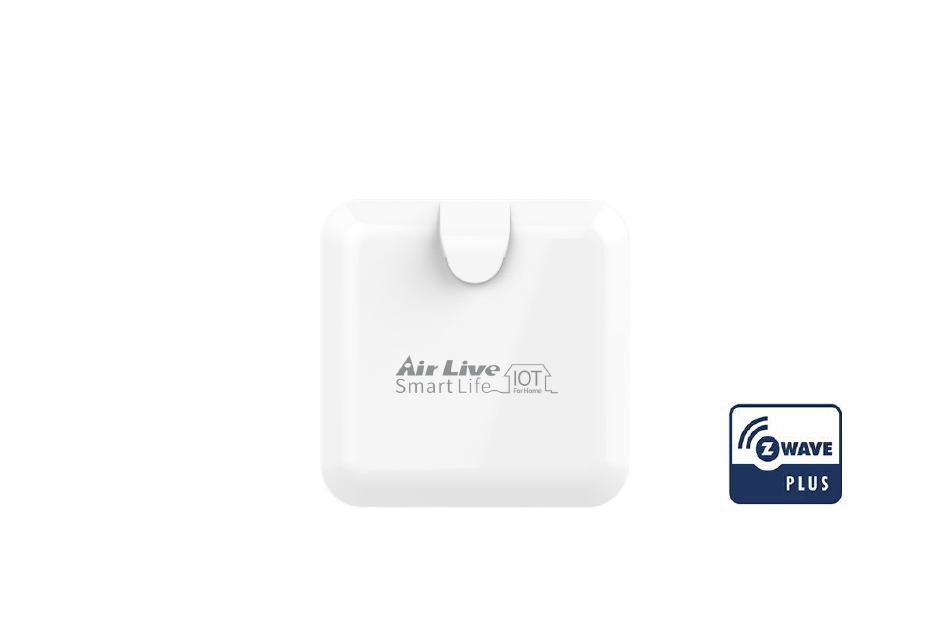

- Page 1 SG-101 Gateway User Manual...
- Page 2 1. Connect to the internet. Go to Settings -> Wi-Fi, choose your own Wi-Fi SSID, and connect it. Once you connect to Wi-Fi, open the app.
- Page 3 2. Go to Settings -> Gateway Address -> UID, and press QR Code. Use the camera of your mobile device to scan the QR Code to set up the gateway address.
- Page 5 3. Add your devices In the Sensor page, press Blue Gear -> Include Device to add Z-wave devices. (Remember to activate the include mode of your device by flipping three times the trigger on it.)
- Page 6 4. 4. Add IPCam In the Sensor page, press Blue Gear -> Add IPCam → QR Code to add IPCam by scanning the QR Code with camera.
- Page 8 5. Add a room...
- Page 9 Press Add new in the Room page to add a new room, enter the name of the room as you like. 6. You can use the picture as your room cover which the IPCam is monitoring.
- Page 10 Drag the sensor icon into your room card for easy management. 7. Scene...
- Page 11 Scene can set the room ambiance quickly. It can help you to have a better experience at the special moment. Macro...
- Page 12 Still worry about your flat security? Macro is just like your 24-7 personal home guard. It secures your flat. Just set the reactives you wishes, it obeys your orders faithfully.
- Page 13 Schedule Schedule is your loyalty housekeeper. It do everything accurately you asked. Drag event icon into Schedule, set date, and time , just that easy.
- Page 14 Specification Operating Voltage 5Vdc (USB Port) Operating Current 300mA...
- Page 15 RF Range Minimum 40 m in door 100m outdoor line of sight Operating Temperature 0°C ~ 40°C Frequency Range (WIFI) 2400 MHz ~ 2483 MHz Frequency Range (Z-Wave) 868.40MHz & 869.85MHz/ EU 908.4MHz & 916.0MHz/ USA 921.4MHz & 919.8MHz/ AS/ NZS 922 MHz ~ 927 MHz/ Taiwan/ Japan WIFI Maximum Power +20 dBm...
- Page 16 OvisLink Corp., http://www.airlive.com/ TEL: +886 2 2218 6888 FAX: +886 2 2918 6988 FCC ID: ODMSG101...
- Page 17 FCC Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with instructions, may cause harmful interference to radio communications.
- Page 18 user's authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Warning Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact your local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
