OV915WVA Quick Installation Guide
1
Indicators and Interfaces
1.1
Front Panel LED indicators
Indicator
Color
Green
Power
Red
DSL
Green
Green
Internet
Red
WAN
Green
LAN 4/3/2/1
Green
2.4G
Green
5G
Green
WPS
Green
Status
On
The device is powered on and the device operates normally.
Blink
The software is upgrading.
Off
The device is powered off.
On
The device is initiating.
Blink
The software is upgrading.
On
DSL link has established.
Blink
The DSL line is training.
Off
Device is powered off.
On
Internet is synchronized successfully in the route mode.
Blink
Internet data is being transmitted.
Off
Ethernet interface is disconnected.
On
Authentication has failed.
On
The Ethernet interface is connected.
Blink
Data is being transmitted through the Ethernet interface.
Off
The Ethernet interface is disconnected.
On
The Ethernet interface is connected.
Blink
Data is being transmitted through the Ethernet interface.
Off
The Ethernet interface is disconnected.
On
WLAN is enabled.
Blink
Data is being transmitted through the wireless interface.
Off
WLAN is disabled.
On
WLAN is enabled.
Blink
Data is being transmitted through the wireless interface.
Off
WLAN is disabled.
On
Connection succeeds under Wi-Fi Protected Setup.
Blink
Negotiation is in progress under Wi-Fi Protected Setup.
Description
1
Advertisement
Related Manuals for Ovislink OV915WV
Summary of Contents for Ovislink OV915WV
-

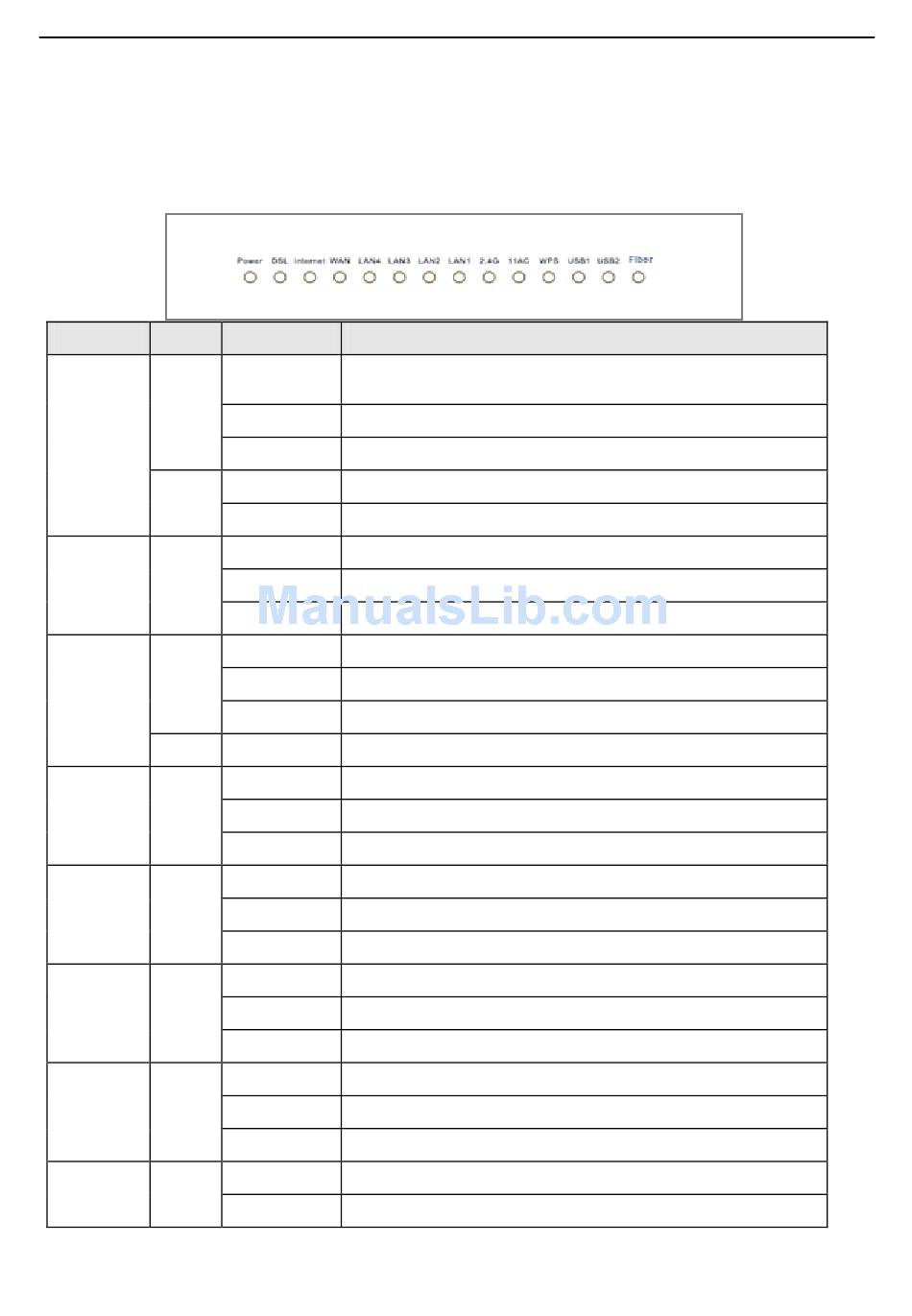

Page 1: Front Panel Led Indicators
OV915WVA Quick Installation Guide Indicators and Interfaces Front Panel LED indicators Indicator Color Status Description The device is powered on and the device operates normally. Green Blink The software is upgrading. Power The device is powered off. The device is initiating. Blink The software is upgrading. - Page 2 OV915WVA Quick Installation Guide Indicator Color Status Description Wi-Fi Protected Setup is disabled. The connection of 3G or USB flash disk has established. USB1 Green Blink Data is being transmitted. No signal is detected. The connection of 3G or USB flash disk has established. USB2 Green Blink...
-
Page 3: Interface Description
OV915WVA Quick Installation Guide Interface Description Key reuse, Press the button for less than 5 second and then release it, enable or disable the 802.11n function; press the button for more than 5 second and then 2.4G release it, enable WPS PBC mode., if WPS is enabled, the wireless router starts to accept the negotiation of PBC mode. - Page 4 OV915WVA Quick Installation Guide Right-click the Ethernet connection icon and choose Properties. On the General tab select the Internet Protocol (TCP/IP) component and click Properties. The Internet Protocol (TCP/IP) Properties window appears. Select the Obtain an IP address automatically button. Select the Obtain DNS server address automatically button.
