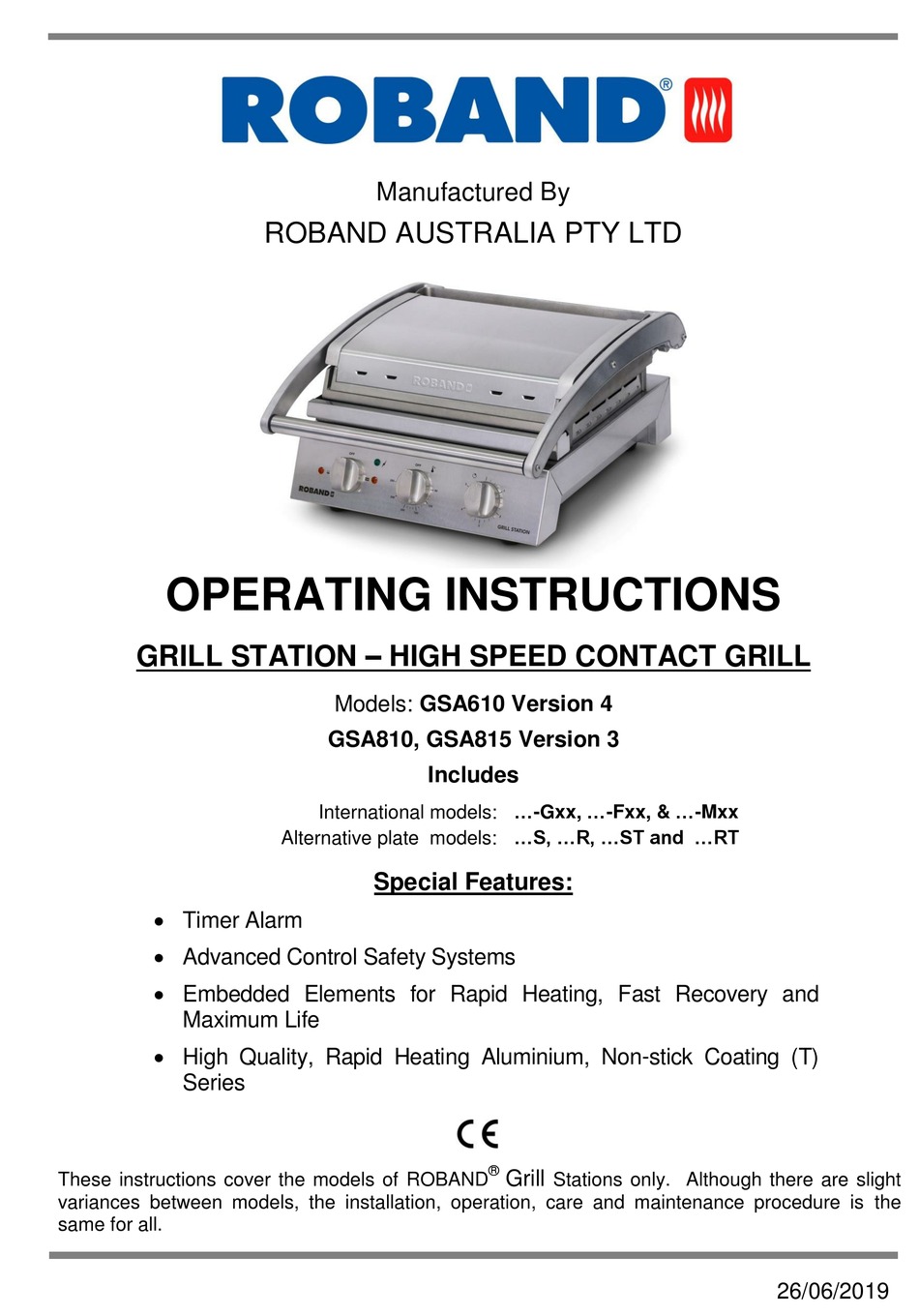

OPERATING INSTRUCTIONS

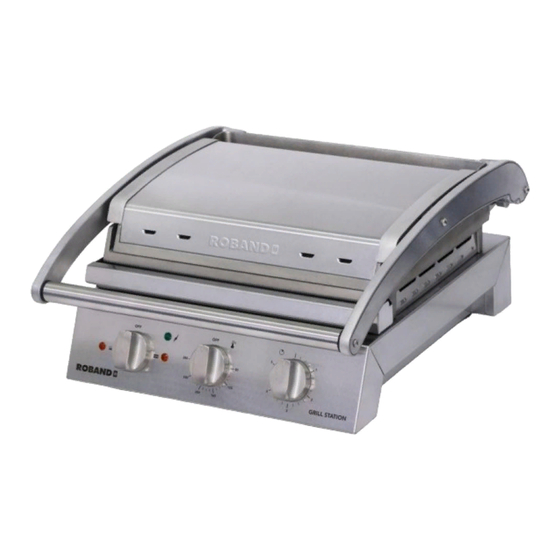

GRILL STATION – HIGH SPEED CONTACT GRILL
Timer Alarm
Advanced Control Safety Systems
Embedded Elements for Rapid Heating, Fast Recovery and
Maximum Life
High Quality, Rapid Heating Aluminium, Non-stick Coating (T)
Series
These instructions cover the models of ROBAND
variances between models, the installation, operation, care and maintenance procedure is the
same for all.
Manufactured By
ROBAND AUSTRALIA PTY LTD
Models: GSA610 Version 4
GSA810, GSA815 Version 3
Includes
International models: ...-Gxx, ...-Fxx, & ...-Mxx
Alternative plate models: ...S, ...R, ...ST and ...RT
Special Features:
®
Grill
Stations only. Although there are slight
26/06/2019
Advertisement
Table of Contents
Related Manuals for ROBAND GSA810G
Summary of Contents for ROBAND GSA810G
- Page 1 High Quality, Rapid Heating Aluminium, Non-stick Coating (T) Series ® Grill These instructions cover the models of ROBAND Stations only. Although there are slight variances between models, the installation, operation, care and maintenance procedure is the same for all.
- Page 2 Australia is a wholly Australian owned company and has been manufacturing quality commercial catering equipment for the food service industry for more than 50 years. Roband products are engineered and manufactured to the highest standards to provide functionality, reliability and durability, and our quality products are exported world-wide.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ..................... 1 GENERAL PRECAUTIONS ..................1 PACKAGING ......................2 COMPLIANCE ......................2 INSTALLATION ....................... 3 OPERATION......................4 COOKING GUIDELINES ..................6 GENERAL SAFETY ....................7 CLEANING, CARE & MAINTENANCE ..............8 SPECIAL NOTES REGARDING NON STICK COATED EQUIPMENT ....10 TROUBLESHOOTING ................... -
Page 4: Introduction
INTRODUCTION ® Congratulations on your purchase of this quality ROBAND product. With proper care and management your new purchase will give you years of trouble free service. By reading these instructions carefully you can ensure that this machine is used and maintained properly, helping your new investment to perform well for you now, and to continue performing in the many years to come. -
Page 5: Packaging
PACKAGING ® All care is taken when packing and Roband ensures that every unit is functional and undamaged at the time of packaging. The Package of these grills should include: One High Speed Grill Station (appropriate model) This Manual Grease Box... -
Page 6: Installation
® close to a wall will not be covered by warranty. Roband recommends a minimum gap of 100 mm be maintained all around the unit to allow adequate ventilation and to prevent any damage to heat sensitive materials. -
Page 7: Operation
OPERATION INITIAL STARTUP To turn on the unit, turn the Selector switch either left or right (see below). Selector Thermostat Timer CONTROLS DESCRIPTION The Selector switch displays the different cooking and plate combinations possible on this unit. The green pilot light above and to the right of the switch will illuminate whenever the unit is switched on, in either mode of operation, indicating that power is being supplied to the unit. - Page 8 SEASONING NOTE: ONLY REQUIRED FOR UNITS WITHOUT NON STICK COATING ON PLATES Before cooking for the first time the plates need to be seasoned as follows. Wipe the top and bottom plates clean and apply a liberal coating of paraffin or vegetable oil.
-
Page 9: Cooking Guidelines
COOKING GUIDELINES The following table shows cooking times and temperatures for common food types that be used on the contact grill. Times based on GSA815 and GSA610 models. GSA810 can expect slightly longer times. 1. Individual experimentation is always necessary - this is a guide only 2. -
Page 10: General Safety
SAFETY GENERAL SAFETY ® This machine contains no user-serviceable parts. Roband Australia, one of our agents, or a similarly qualified person(s) should carry out any and all repairs. Any repair person(s) should be instructed to read the Safety warnings within this manual before commencing work on these units. -
Page 11: Cleaning, Care & Maintenance
CLEANING, CARE & MAINTENANCE Attention to regular care and maintenance will ensure long and trouble free operation of your Grill Station. Although scheduled servicing is not required we do recommend you adopt a program of regular maintenance to ensure that the Grill Station is clean and functional and to avoid inadvertently damaging the unit. - Page 12 Wipe down the remainder of the machine with a cloth or sponge that is only DAMP with soapy hot water, taking care to avoid water entering any part of the Grill Station. Do not clean with the use of a water jet, spray applicator or place the unit in a dishwasher.
-
Page 13: Special Notes Regarding Non Stick Coated Equipment
® The non-stick coating utilised is high quality, however Roband Australia Pty Ltd cannot guarantee the performance or longevity of these coatings other than against faulty workmanship. This is the case due to the protective coating nature of the product and its use in unknown commercial environments. -
Page 14: Troubleshooting
TROUBLESHOOTING If the grill does not heat up check the following points before calling for service. The grill is plugged in correctly and the power switched on. The power point is not faulty. The temperature has been set correctly and the green pilot light is illuminated indicating the machine has power. -
Page 15: Specifications
SPECIFICATIONS Model GSA610 models GSA810 models GSA815 models Power Source 220-240 Volts AC 220-240 Volts AC 220-240 Volts AC Power Frequency 50-60Hz 50-60Hz 50-60Hz Power 2150-2250 Watts 2200-2400 Watts 2860-3120 Watts Consumption Amps 10.0 13.0 Width mm Height mm Depth mm Weight kg 17.3 Cooking Area mm... -
Page 16: Circuit Diagram
CIRCUIT DIAGRAM All Models Note: This circuit diagram has been provided for reference and to assist qualified service and repair agents only. Under no circumstances should persons not suitably qualified attempt repairs to any electrical equipment. Page: 13... -
Page 17: Gsa6 Parts List
Grease Box ES0258 Rotary Switch, 3 Position & Al Knob Thermostat 50-285°C & Metal Knob TS0020 (Satin Finish) Knob & Spring - Roband® Satin MC0846 Finish - 6mm 0° VS0241 Grill Station Minimelt Spares Kit VS0267 GSA6 Handle and Arms Assembly... -
Page 18: Gsa8 Parts List
10mm screwed (includes nut) M6x16 Screws) ES0258 Rotary Switch, 3 Position & Al Knob Grease Box SS2503 Knob & Spring - Roband® Satin Thermostat 50-285°C & Metal Knob MC0846 TS0020 Finish - 6mm 0° (Satin Finish) Tension Spring SS - for GS_8... - Page 19 If you are unable to locate a circuit without an RCD please contact your ® supplier or contact Roband or our Agent for alternative suggestions. Page: 16...
- Page 20 NOTES (Record any preferred times or settings etc. here to act as a quick reference for other users) Page: 17...
- Page 21 NOTES (Record any preferred times or settings etc. here to act as a quick reference for other users) Page: 18...
-
Page 22: Notes
NOTES (Record any preferred times or settings etc. here to act as a quick reference for other users) Page: 19... -
Page 23: Warranty
Any repairs or replacement of defective goods or materials pursuant to this warranty, must be authorized by Roband Australia prior to any action being taken. The company reserves the right to reject a claim for warranty if it is not completely satisfied with the circumstances under which it occurred and any other costs incurred for false claims or faults due to incorrect usage etc. - Page 24 OTHER LEADING PRODUCTS AVAILABLE: Sycloid Toaster DRINK MIXERS HIGH PERFORMANCE DEEP FRYERS VITAMIX BLENDERS NOAW Slicers GRILLMAX TOASTERS Manufactured/Imported in Australia by: Authorised Distributor/Agent...
