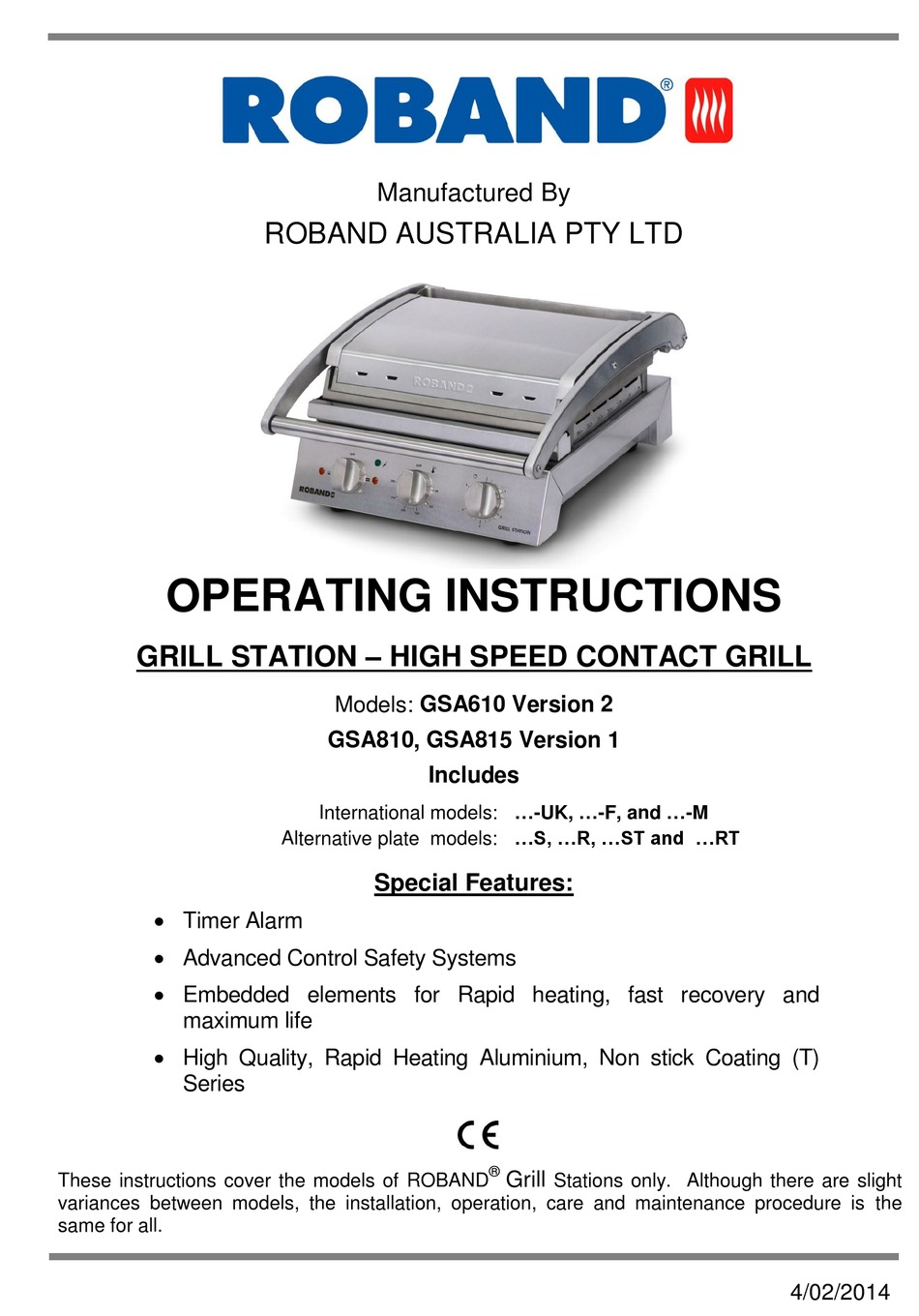

OPERATING INSTRUCTIONS

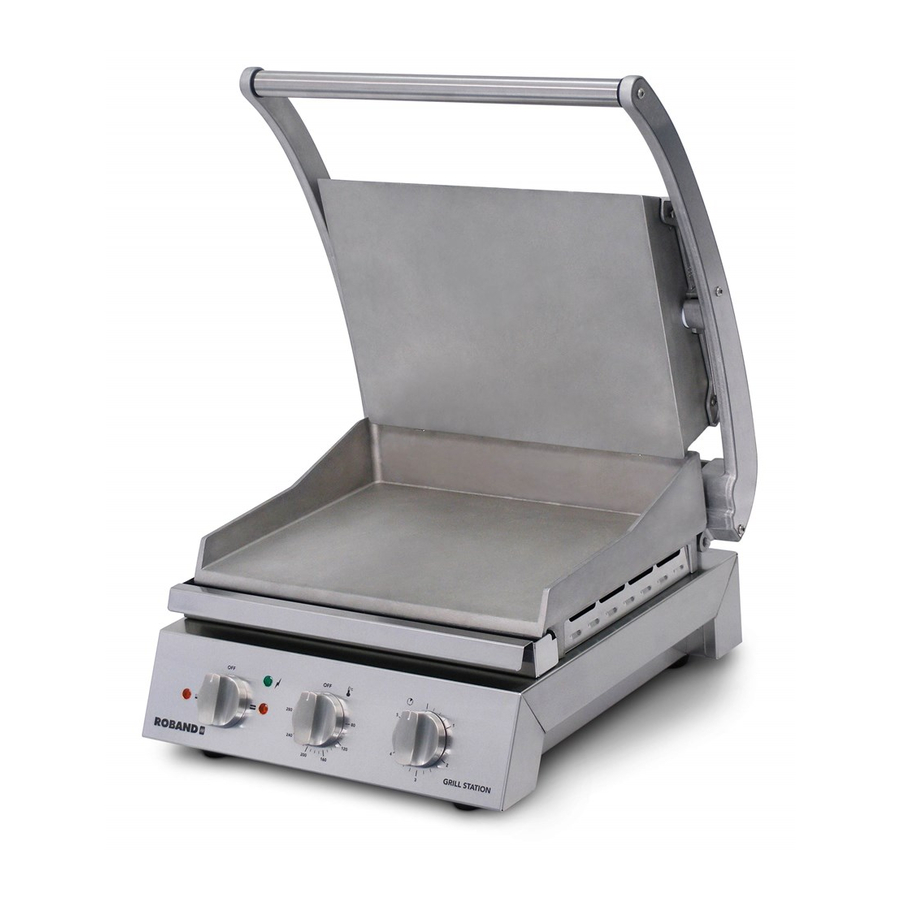

GRILL STATION – HIGH SPEED CONTACT GRILL
 Timer Alarm
 Advanced Control Safety Systems
 Embedded elements for Rapid heating, fast recovery and
maximum life
 High Quality, Rapid Heating Aluminium, Non stick Coating (T)
Series
These instructions cover the models of ROBAND
variances between models, the installation, operation, care and maintenance procedure is the
same for all.
Manufactured By
ROBAND AUSTRALIA PTY LTD
Models: GSA610 Version 2
GSA810, GSA815 Version 1
Includes
International models: ...-UK, ...-F, and ...-M
Alternative plate models: ...S, ...R, ...ST and ...RT
Special Features:
®
Grill
Stations only. Although there are slight
4/02/2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSA610 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ROBAND GSA610

  • Page 1: Operating Instructions

     High Quality, Rapid Heating Aluminium, Non stick Coating (T) Series ® Grill These instructions cover the models of ROBAND Stations only. Although there are slight variances between models, the installation, operation, care and maintenance procedure is the same for all.
  • Page 2 ö ® Soup/Rice Warmers, Robatherm Urns, Austheat Fryers, Dipo Induction & Autofry Machines. Roband also has its own line of commercial cookware and cutlery under the ® Robinox brand name. For a complete set of brochures please contact your nearest authorised dealer or contact Roband directly at our head office.
  • Page 3: Table Of Contents

    CONTENTS INTRODUCTION ..................... 1 GENERAL PRECAUTIONS ..................1 PACKAGING ......................2 COMPLIANCE ......................2 INSTALLATION ....................... 3 OPERATION......................4 COOKING GUIDELINES ..................6 GENERAL SAFETY ....................7 CLEANING, CARE & MAINTENANCE ..............8 SPECIAL NOTES REGARDING NON STICK COATED EQUIPMENT ....10 TROUBLESHOOTING ...................
  • Page 4: Introduction

    INTRODUCTION ® Congratulations on your purchase of this quality ROBAND product. With proper care and management your new purchase will give you years of trouble free service. By reading these instructions carefully you can ensure that this machine is used and maintained properly, helping your new investment to perform well for you now, and to continue performing in the many years to come.
  • Page 5: Packaging

    PACKAGING ® All care is taken when packing and Roband ensures that every unit is functional and undamaged at the time of packaging. The Package of these grills should include: One High Speed Grill Station (appropriate model) This manual Grease Box...
  • Page 6: Installation

     Do not place the Grill Station above other equipment that may give off heat. AUSTRALIAN MODELS For the GSA610 and GSA810 models plug the machine into a single phase, 10 Amp power point. For the GSA815 models, plug the grill into a single phase 15A power point.
  • Page 7: Operation

    OPERATION INITIAL STARTUP To turn on the unit, turn the Selector switch either left or right (see below). Selector Thermostat Timer CONTROLS DESCRIPTION The Selector switch displays the different cooking and plate combinations possible on this unit. The green pilot light above and to the right of the switch will illuminate whenever the unit is switched on, in either mode of operation, indicating that power is being supplied to the unit.
  • Page 8 SEASONING NOTE: ONLY REQUIRED FOR UNITS WITHOUT NON STICK COATING ON PLATES Before cooking for the first time the plates need to be seasoned as follows.  Wipe the top and bottom plates clean and apply a liberal coating of paraffin or vegetable oil.
  • Page 9: Cooking Guidelines

    COOKING GUIDELINES The following table shows cooking times and temperatures for common food types that be used on the contact grill. Times based on GSA815 and GSA610 models. GSA810 can expect slightly longer times. 1. Individual experimentation is always necessary - this is a guide only 2.
  • Page 10: General Safety

    SAFETY GENERAL SAFETY ® This machine contains no user-serviceable parts. Roband Australia, one of our agents, or a similarly qualified person(s) should carry out any and all repairs. Any repair person(s) should be instructed to read the Safety warnings within this manual before commencing work on these units.
  • Page 11: Cleaning, Care & Maintenance

    CLEANING, CARE & MAINTENANCE Attention to regular care and maintenance will ensure long and trouble free operation of your Grill Station. Although scheduled servicing is not required we do recommend you adopt a program of regular maintenance to ensure that the Grill Station is clean and functional and to avoid inadvertently damaging the unit.
  • Page 12  Wipe down the remainder of the machine with a cloth or sponge that is only DAMP with soapy hot water, taking care to avoid water entering any part of the Grill Station. Do not clean with the use of a water jet, spray applicator or place the unit in a dishwasher.
  • Page 13: Special Notes Regarding Non Stick Coated Equipment

    ® The non stick coating utilised is high quality, however Roband Australia Pty Ltd cannot guarantee the performance or longevity of these coatings other than against faulty workmanship. This is the case due to the protective coating nature of the product and its use in unknown commercial environments.
  • Page 14: Troubleshooting

    TROUBLESHOOTING If the grill does not heat up check the following points before calling for service.  The grill is plugged in correctly and the power switched on.  The power point is not faulty.  The temperature has been set correctly and the green pilot light is illuminated indicating the machine has power.
  • Page 15: Specifications

    SPECIFICATIONS Model GSA610 models GSA810 models GSA815 models Power Source 220-240 Volts AC 220-240 Volts AC 220-240 Volts AC Power Frequency 50-60Hz 50-60Hz 50-60Hz Power 2150-2250 Watts 2200-2400 Watts 2860-3120 Watts Consumption Amps 10.0 13.0 Width mm Height mm Depth mm Weight kg 17.3...
  • Page 16: Circuit Diagram

    CIRCUIT DIAGRAM All Models Note: This circuit diagram has been provided for reference and to assist qualified service and repair agents only. Under no circumstances should persons not suitably qualified attempt repairs to any electrical equipment. Page: 13...
  • Page 17: Gsa6 Parts List

    Pilot Light and Viton O-ring - Green, ES0265 10mm screwed (includes nut) Thermostat 50-285°C & Metal Knob TS0020 (Satin Finish) GSA610 Bottom Element & Plate HC0169* Assy - Aluminium 1300W 230V VS0241 Grill Station Minimelt Spares Kit MC0844 Tension Spring SS - for GS_6 series...
  • Page 18: Gsa8 Parts List

    TS0020 10mm screwed (includes nut) Knob (Satin Finish) MC0845 VS0241 Cam Roller Grill Station Minimelt Spares Kit Knob & Spring - Roband® Satin GSA8 Handle and Arms MC0846 VS0268 Finish - 6mm 0° Assembly PARTS FOR GSA810S PARTS FOR GSA815S...
  • Page 19: Appendix A

    If you are unable to locate a circuit without an RCD please contact your ® supplier or contact Roband or our Agent for alternative suggestions. Page: 16...
  • Page 20 NOTES (Record any preferred times or settings etc. here to act as a quick reference for other users) Page: 17...
  • Page 21 NOTES (Record any preferred times or settings etc. here to act as a quick reference for other users) Page: 18...
  • Page 22: Ec Declaration Of Conformity

    DECLARATION I hereby declare under our sole responsibility that the product mentioned above to which this declaration relates complies with the above-mentioned standard(s). Roband® Australia has appointed Valera Ltd as our EU Authorised Representative of : 5-7 The Glade Business...
  • Page 23: Warranty

    ® claimant. Under no circumstances shall Roband Australia Pty Ltd or any subsidiary company or Agent be liable for loss of profit or damage to other equipment and property.
  • Page 24 OTHER LEADING PRODUCTS AVAILABLE:  -PLUS DRINK MIXERS PIE & FOOD WARMERS HIGH PERFORMANCE DEEP FRYERS VITAMIX BLENDERS GRILLMAX TOASTERS NOAW Slicers Manufactured/Imported in Australia by: Authorised Distributor/Agent...
