OPERATING INSTRUCTIONS

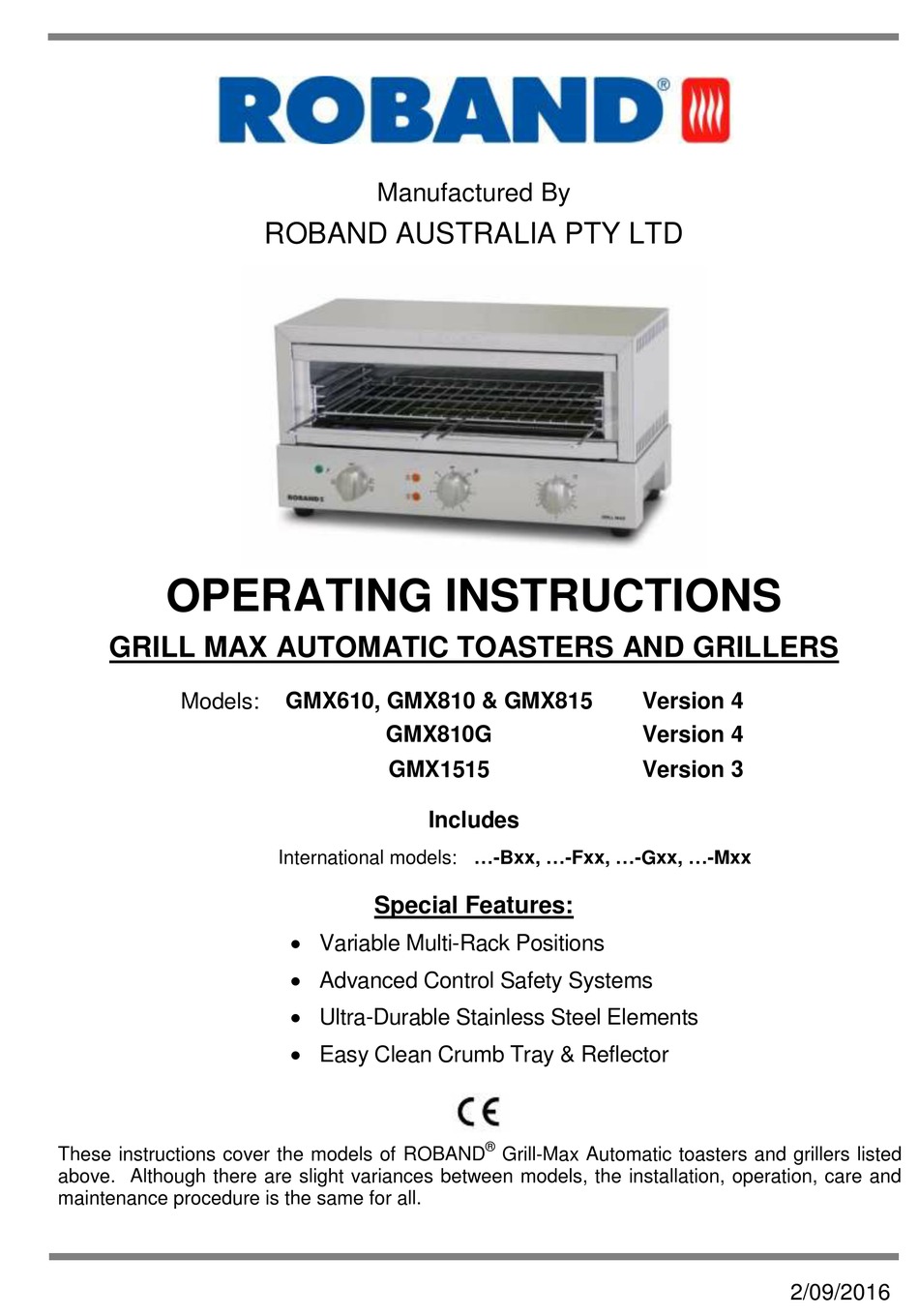

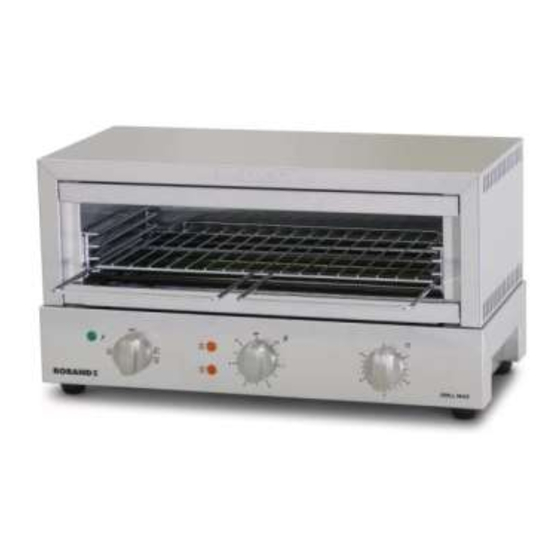

GRILL MAX AUTOMATIC TOASTERS AND GRILLERS
Models:
These instructions cover the models of ROBAND
above. Although there are slight variances between models, the installation, operation, care and
maintenance procedure is the same for all.
Manufactured By
ROBAND AUSTRALIA PTY LTD
GMX610, GMX810 & GMX815
GMX810G
GMX1515
Includes
International models: ...-Bxx, ...-Fxx, ...-Gxx, ...-Mxx
Special Features:
Variable Multi-Rack Positions
Advanced Control Safety Systems
Ultra-Durable Stainless Steel Elements
Easy Clean Crumb Tray & Reflector
Version 4
Version 4
Version 3
®
Grill-Max Automatic toasters and grillers listed
2/09/2016
Advertisement
Table of Contents
Related Manuals for ROBAND GMX610, GMX810
Summary of Contents for ROBAND GMX610, GMX810
-
Page 1: Operating Instructions
Ultra-Durable Stainless Steel Elements Easy Clean Crumb Tray & Reflector ® These instructions cover the models of ROBAND Grill-Max Automatic toasters and grillers listed above. Although there are slight variances between models, the installation, operation, care and maintenance procedure is the same for all. - Page 2 Soup/Rice Warmers, Robatherm Urns, ö ® Austheat Fryers, Dipo Induction & Autofry Machines. Roband also has its own line of ® commercial cookware and cutlery under the Robinox brand name. For a complete set of brochures please contact your nearest authorised dealer or contact Roband directly at our head office.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ..................... 1 GENERAL PRECAUTIONS ..................1 PACKAGING ......................2 COMPLIANCE ......................2 INSTALLATION ....................... 3 OPERATION......................4 GENERAL SAFETY ....................6 CLEANING, CARE & MAINTENANCE ..............7 TROUBLESHOOTING ..................... 8 SPECIFICATIONS ....................9 CIRCUIT DIAGRAMS .................... 10 SPARE PARTS LIST ..................... 12 TOASTING ADVICE .................... -
Page 4: Introduction
Always be careful when near an operating machine, and ensure that any risk to unwary customers or staff is minimised with additional signage if necessary. Due to the obvious heat hazard Roband recommends that these units be kept out of reach of children. -
Page 5: Packaging
PACKAGING All care is taken when packing and Roband ensures that every unit is functional and undamaged at the time of packaging. The Package of these toasters should include: One Automatic Toaster and Griller (appropriate model) Packing Inserts One cooking rack... -
Page 6: Installation
Any damage caused to adjacent surfaces or equipment as a result of the unit being too close will not be covered by warranty. Roband recommends a minimum gap of 100mm be maintained all around the unit to allow adequate ventilation and to prevent any damage to heat sensitive materials. -
Page 7: Operation
OPERATION All models of toasters are capable of toasting and grilling on both sides at once or on the top only. They also have the flexibility to be controlled with the timer or the energy regulator(s) depending on your requirements. However, the way in which these methods of use are carried out varies slightly between the models. - Page 8 OPERATING TIPS We recommend a “COOK - IDLE” approach for toasting. This is more energy efficient then having the elements at a high setting for long periods between toasting, but still enables a fast toast time. IDLE: When not toasting leave the Energy Regulator at a low – medium heat, setting 1.5 to 2 ...
-
Page 9: General Safety
SAFETY GENERAL SAFETY This machine contains no user-serviceable parts. Roband Australia, one of our agents, or a similarly qualified person(s) should carry out any and all repairs. Any repair person(s) should be instructed to read the Safety warnings within this manual before commencing work on these units. -
Page 10: Cleaning, Care & Maintenance
CLEANING, CARE & MAINTENANCE Attention to regular care and maintenance will ensure long and trouble free operation of your toaster. Although scheduled servicing is not required we do recommend you adopt a program of regular maintenance to ensure that the Toaster is clean and functional and to avoid inadvertently damaging the unit. -
Page 11: Troubleshooting
MAINTAINING APPEARANCE OF THE STAINLESS For protection and cleaning of “brushed” stainless steel surfaces, it is best to use a cleaner that will both remove grease and dirt while protecting the surface from future marks. Whilst there are many possible products on the market, our tests have shown that the following products work well on brushed stainless surfaces. -
Page 12: Specifications
SPECIFICATIONS GMX610 GMX810 GMX815 GMX1515 GMX810G Model Power Source 220-240 ( Volts AC ) Power Consumption 1795-2135 2105-2505 3155-3755 3170-3775 2015-2400 ( Watts ) Nominal Dimensions Width (mm) Height (mm) Depth (mm) Constant research and development may necessitate specification changes at any time. -
Page 13: Circuit Diagrams
CIRCUIT DIAGRAMS MODELS: GMX610, GMX810, GMX815 AND GMX1515 NOTE: This circuit diagram has been provided for reference and to assist qualified service and repair agents only. Under no circumstances should persons not suitably qualified attempt repairs to any electrical equipment. - Page 14 CIRCUIT DIAGRAMS - Continued MODEL: GMX810G NOTE: This circuit diagram has been provided for reference and to assist qualified service and repair agents only. Under no circumstances should a person not suitably qualified attempt repairs to any electrical equipment. Page: 11...
-
Page 15: Spare Parts List
SPARE PARTS LIST COMMON PARTS TO ALL MODELS PART NO DESCRIPTION PART NO DESCRIPTION EC0031 Ceramic Terminal Block MC0846 Knob Rotary Switch & Aluminium ES0258 PC0246 Wiring Grommet 5/8" Knob Foot Set (inc 4x Foot, ES0264 Pilot Light - Amber PS0129 Screws and Cap) Energy Regulator with... - Page 16 SPARE PARTS LIST - Continued GMX815 PARTS LIST PART NO DESCRIPTION PART NO DESCRIPTION Plug & Cord – 15 Amp Cord Clamp – 15 Amp EC0306 PC0061 Element – 1680W 230V HC0205 VS0256 Element Assembly MC0884 Toasting Rack VS0258 Side Rack Assembly GMX810G PARTS LIST PART NO DESCRIPTION...
-
Page 17: Toasting Advice
TOASTING ADVICE AN EXCERPT FROM AN ARTICLE PUBLISHED BY ROBAND AUSTRALIA Regardless of the brand, any radiant heat toaster will run into problems when faced with the nasty prospect of fresh bread. The reason for this is simple; the high moisture content in fresh bread acts to counter the toasting effect. -
Page 18: Appendix A
If you are unable to locate a circuit without an RCD please contact your supplier or contact Roband or our Agent for alternative suggestions. Page: 15... - Page 19 NOTES This page is intentionally left blank. Page: 16...
- Page 20 NOTES This page is intentionally left blank. Page: 17...
- Page 21 NOTES This page is intentionally left blank. Please note your favourite settings here. Page: 18...
-
Page 22: Ec Declaration Of Conformity
DECLARATION I hereby declare under our sole responsibility that the product mentioned above to which this declaration relates complies with the above-mentioned standard(s). Roband Australia has appointed Valera Ltd as our EU Authorised Representative of : 5-7 The Glade Business... -
Page 23: Warranty
Any repairs or replacement of defective goods or materials pursuant to this warranty, must be authorized by Roband Australia prior to any action being taken. The company reserves the right to reject a claim for warranty if it is not completely satisfied with the circumstances under which it occurred and any other costs incurred for false claims or faults due to incorrect usage etc. - Page 24 OTHER LEADING PRODUCTS AVAILABLE: Sycloid Toaster DRINK MIXERS HIGH PERFORMANCE DEEP FRYERS VITAMIX BLENDERS NOAW Slicers GRILLMAX TOASTERS Manufactured/Imported in Australia by: Authorised Distributor/Agent...
