  • Page 1 TR- GP3600-08 GPON Hardware Installation Manual...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents Chapter 1 Introduction of TR- GP3600-08 GPON Access Device..................1 1.1 Standard Configuration ............................1 1.2 Attribute Parameters of GP3600-08 GPON ......................3 1.3 ROHS Description ..............................5 Chapter 2 Installation Preparation ............................6 2.1 Cautions ................................

  • Page 3: Chapter 1 Introduction Of Tr- Gp3600-08 Gpon Access Device

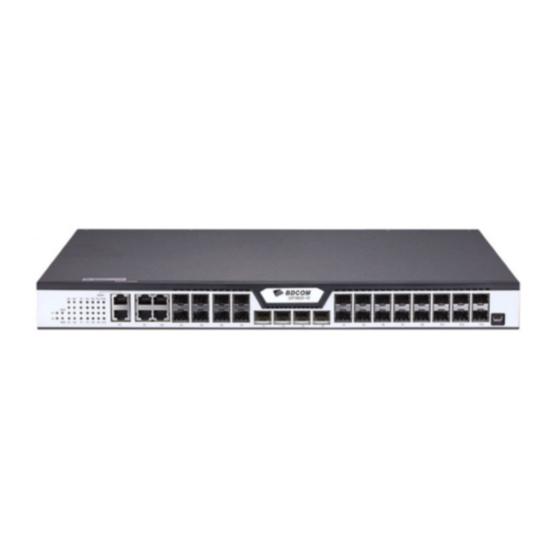

    TR-GP3600-08 GPON Hardware Installation Manual Chapter 1 Introduction of TR- GP3600-08 GPON Access Device The document describes the characteristics and parameters of TR- GP3600-08 GPON and gives an overview of GP3600-08 GPON. 1.1 Standard Configuration TR- GP3600-08 GPON has 16 GPON SFP ports, 4 gigabit optical/electrical combo ports, 4 gigabit SFP ports, 4 10GE optical ports, 1 Console port, and 1 ETH 100M network management port.
  • Page 4 TR-GP3600-08 GPON Hardware Installation Manual When PWR1 supplies power, this LED LED of power supply 1 is on. If the indicator is always on, the system is being started. LED of system’s running If the indicator flickers, the system works normally.

  • Page 5: Attribute Parameters Of Gp3600-08 Gpon

    TR-GP3600-08 GPON Hardware Installation Manual PON port console PON port debug serial port Figure 1-2 Back faceplate of GP3600-08 GPON- Parts at the Back Template of GP3600-08 GPON Access Device Abbrev. Name Remarks Grounding column The grounding must be fine.
  • Page 6 TR-GP3600-08 GPON Hardware Installation Manual 1 100M network management port 4 gigabit electric/optical combo ports 4 gigabit optical ports 16 gigabit GPON ports 4 10GE SFP+ optical ports 445x300x44.5 Dimensions (W×H×D) mm 0℃-45℃; 10%-85% non-condensing Operating temperature/humidity -40℃-80℃; 5%-95% non-condensing...

  • Page 7: Rohs Description

    TR-GP3600-08 GPON Hardware Installation Manual 1.3 ROHS Description - 5 -...

  • Page 8: Chapter 2 Installation Preparation

    TR-GP3600-08 GPON Hardware Installation Manual Chapter 2 Installation Preparation 2.1 Cautions Similar to other electronic products, the semiconductor chip easily gets damaged if you power on and off abruptly and frequently. To restart up the GP3600-08 GPON, you have to open the power on-off three or five seconds after the power is cut off.

  • Page 9: Electrostatic Discharge Prevention

    TR-GP3600-08 GPON Hardware Installation Manual  Put off ornaments, such as ring, necklace, watch and bracelet, before you operate under live working. When metal articles connect the power to the ground, short circuit happens and components may be damaged. Pull out the AC power socket and close the direct-current power before operating ...

  • Page 10: Location Configuration Prevention

    TR-GP3600-08 GPON Hardware Installation Manual For location planning and device locating, refer to section 2.3.2 “Location Configuration Prevention”. 2.3.2 Location Configuration Prevention The following preventive measures assist you to design the proper environment for this GPON access device.  Make sure that the workshop is well-ventilated, the heat of electrical devices is well-discharged and sufficient air circulation is provided for device cooling.
  • Page 11 TR-GP3600-08 GPON Hardware Installation Manual  Other Ethernet terminal devices  Control terminal - 9 -...

  • Page 12: Chapter 3 Installing Gp3600-08 Gpon Device

    TR-GP3600-08 GPON Hardware Installation Manual Chapter 3 Installing GP3600-08 GPON Device Caution: Only professionals are allowed to install or replace the devices of this device. 3.1 Installation Flow of GP3600-08 GPON Installing the Machine Box of GP3600-08 GPON The machine box of TR- GP3600-08 GPON can be installed on the desk or can be fixed to other cabinets.

  • Page 13: Installing The Chassis On The Cabinet

    TR-GP3600-08 GPON Hardware Installation Manual 3.2.2 Installing the Chassis on the Cabinet The machine box of TR- GP3600-08 GPON is fixed on the cabinet through the brackets. When you fix the brackets, the front faceplate of TR- GP3600-08 GPON faces forward.
  • Page 14 TR-GP3600-08 GPON Hardware Installation Manual The RJ45 connector of the console port is shown in the following figure. The RJ45 plug corresponds to the RJ45 socket, whose pins can be aligned from left to right with the value from 1 to 8.

  • Page 15: Connecting The Gpon Sfp Interface

    TR-GP3600-08 GPON Hardware Installation Manual Data terminal ready No connect Signal ground Note: The console port of TR- GP3600-08 GPON does not support traffic control. Therefore, you must set the option data traffic control to none when you configure TR- GP3600- 08 GPON with the super terminal.

  • Page 16: Connecting Ethernet Gigabit Optical Port

    TR-GP3600-08 GPON Hardware Installation Manual Figure 3-6 Connecting the GPON interface and other ONUs or optical splitters 3.3.3 Connecting Ethernet Gigabit Optical Port TR- GP3600-08 GPON provides 8 gigabit optical SFP ports, among which 4 are optical/electrical ports. Each port has a corresponding indicator for showing the LINK/ACT state of the port.

  • Page 17: Connecting Ethernet Gigabit Tx Port

    TR-GP3600-08 GPON Hardware Installation Manual Figure 3-7 Connecting the gigabit optical port and other Ethernet devices 3.3.4 Connecting Ethernet Gigabit TX Port TR- GP3600-08 GPON provides 4 fixed gigabit optical/electric Ethernet ports (G1~G4). On the right side are LINK/ACT indicators.
  • Page 18 TR-GP3600-08 GPON Hardware Installation Manual Figure 3-8 Connecting the 1000M optical port and other devices To use the electrical port, you can connect the electric port and other Ethernet devices with the direct-through or cross cable through the UTP port of the GPON access device.

  • Page 19: Connecting 10Ge Ethernet Optical Ports

    TR-GP3600-08 GPON Hardware Installation Manual Sending the normal phase of the data TXD2+ Output Sending the paraphase of the data TXD2- Output Receiving the paraphase of the data RXD1- Input Receiving the normal phase of the data RXD2+ Input Receiving the paraphase of the data...
  • Page 20 TR-GP3600-08 GPON Hardware Installation Manual  If the GPON access device is installed on the cabinet, check whether the installation point between the cabinet and the GPON access device is strong. If the GPON access device is installed on the desk, check whether there is enough space for the GPON access device to discharge its heat and whether the desk is stable.

  • Page 21: Chapter 4 Maintaining The Gpon Access Device

    TR-GP3600-08 GPON Hardware Installation Manual Chapter 4 Maintaining the GPON Access Device Caution: Before opening the chassis, make sure that you have released the static you carried and then turn off the power on-off of the GPON access device. Before operating any step in Appendix B, read the section “Safety Advice”.

  • Page 22: Closing The Chassis

    TR-GP3600-08 GPON Hardware Installation Manual When the cover is opened, put it aside. The main board of the system appears. Note: After taking off the cover, put it horizontally and avoid it to be crushed or collided. Otherwise, the chassis is hard to install.
  • Page 23 TR-GP3600-08 GPON Hardware Installation Manual When the cover and the bottom are closely tied, let the cover slide the slot of the front template at the bottom. Nail the bolt and screw it tightly with the screwdriver. Reinstall the GPON access device on the cabinet or the desk.

  • Page 24: Chapter 5 Hardware Fault Analysis

    TR-GP3600-08 GPON Hardware Installation Manual Chapter 5 Hardware Fault Analysis The part describes how to remove the fault from the GPON access device. 5.1 Fault Separation The key for resolving the systematic faults is to separate the fault from the system. You can compare what the system is doing with what the system should do to detect the fault.
  • Page 25 TR-GP3600-08 GPON Hardware Installation Manual port is normal. If the indicator flickers, the data is received or transmitted through the port. - 23 -...
