- Page 1 BDCOM GP3600-16 GPON Hardware Installation Manual...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Chapter 1 Introduction of BDCOM GP3600-16 GPON Access Device................1 1.1 Standard Configuration..........................1 1.2 Attribute Parameters of GP3600-16 GPON....................4 1.3 ROHS Description.............................5 Chapter 2 Installation Preparation..........................6 2.1 Cautions..............................6 2.2 Safety Advice............................6 2.2.1 Safety Principles..........................6 2.2.2 Safety Notices.......................... -
Page 3: Chapter 1 Introduction Of Bdcom Gp3600-16 Gpon Access Device

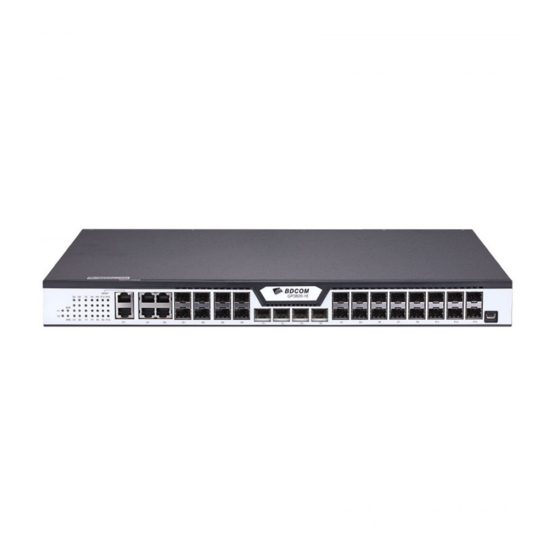

GPON and gives an overview of GP3600-16 GPON. 1.1 Standard Configuration BDCOM GP3600-16 GPON has 16 GPON SFP ports, 4 gigabit optical/electrical combo ports, 4 gigabit SFP ports, 4 10GE optical ports, 1 Console port, and 1 ETH 100M network management port. For details, see the following table. - Page 4 BDCOM GP3600-16 GPON Hardware Installation Manual When PWR2 supplies power, this LED LED of power supply 2 is on. When PWR1 supplies power, this LED LED of power supply 1 is on. If the indicator is always on, the system is being started.
- Page 5 Gigabit OLT PON ports Realizes the access of GPON ONU PON port console PON port debug serial port Figure 1-2 Back faceplate of GP3600-16 GPON- Parts at the Back Template of GP3600-16 GPON Access Device Abbrev. Name Remarks Grounding column The grounding must be fine.
-
Page 6: Attribute Parameters Of Gp3600-16 Gpon
BDCOM GP3600-16 GPON Hardware Installation Manual 1.2 Attribute Parameters of GP3600-16 GPON IEEE 802.1d Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1q tagged VLAN Protocol standard IEEE 802.3x Flow control IEEE 802.3ad Link aggregation IEEE 802.3ah Ethernet in the First Mile Task Force... -
Page 7: Rohs Description
BDCOM GP3600-16 GPON Hardware Installation Manual 1.3 ROHS Description - 5 -... -
Page 8: Chapter 2 Installation Preparation
Similar to other electronic products, the semiconductor chip easily gets damaged if you power on and off abruptly and frequently. To restart up the GP3600-16 GPON, you have to open the power on-off three or five seconds after the power is cut off. -
Page 9: Safety Principles For Live Working
BDCOM GP3600-16 GPON Hardware Installation Manual Only professionals are allowed to install or replace the GPON access device. Pull out the power socket and close the direct-current power before operating on the chassis or working beside the power supply. -
Page 10: Electrostatic Discharge Prevention
BDCOM GP3600-16 GPON Hardware Installation Manual 2.2.4 Electrostatic Discharge Prevention Electrostatic discharge may damage devices and circuits. Improper treatment may cause this device to malfunction completely or discontinuously. Move or locate the devices according to the measures of electrostatic discharge prevention, ensuring the chassis connects the ground. -
Page 11: Power Requirements
2.4 Installation Tools and Device The tools and devices to install BDCOM GP3600-16 GPON are not provided by the GP3600-16 GPON. You yourself need to prepare them. The following are the tools and... -
Page 12: Chapter 3 Installing Gp3600-16 Gpon Device
3.1 Installation Flow of GP3600-16 GPON Installing the Machine Box of GP3600-16 GPON The machine box of BDCOM GP3600-16 GPON can be installed on the desk or can be fixed to other cabinets. Your network installation requirements can be met if you conduct the operations according to the following procedure. -
Page 13: Installing The Machine Box On The Desk
Installing the Machine Box on the Desk BDCOM GP3600-16 GPON can be directly put on the smooth and safe desk. Note: Do not put items with more than 4.5kg on GP3600-16 GPON, or it will be damaged. 3.2.2 Installing the Chassis on the Cabinet The machine box of BDCOM GP3600-16 GPON is fixed on the cabinet through the brackets. -
Page 14: Connecting The Port
RJ45 plug. After you connect the console port to the serial port of PC through a console cable, you can configure and monitor BDCOM GP3600-16 GPON by running a terminal emulation software, such as super Windows terminal. The cable is provided according to the host. -
Page 15: Connecting The Gpon Sfp Interface
One end of the cable is a 9-pin RJ45 plug and the other end is a 9-hole plug (DB9). The RJ45 plug is put into the socket of the console port on GP3600-16 GPON. The inner line connection in the cable is shown in figure 3-1. The console cable is numbered as RLC0301. -
Page 16: Connecting Ethernet Gigabit Optical Port
3.3.3 Connecting Ethernet Gigabit Optical Port BDCOM GP3600-16 GPON provides 8 gigabit optical SFP ports, among which 4 are optical/electrical ports. Each port has a corresponding indicator for showing the LINK/ACT state of the port. If the indicator is always on, the port is normally linked; if the indicator flickers, the data is forwarded through the port. -
Page 17: Connecting Ethernet Gigabit Tx Port
3.3.4 Connecting Ethernet Gigabit TX Port BDCOM GP3600-16 GPON provides 4 fixed gigabit optical/electric Ethernet ports (G1~G4). On the right side are LINK/ACT indicators. When using the ports (G1~G4) as the TX ports, they cannot be used as the optical ports. - Page 18 Figure 3- 9 RJ-45 connector of the console port Because 4 1000Base-T ports of BDCOM GP3600-16 GPON support the MDI/MDIX auto-identification of the cable, BDCOM GP3600-16 GPON can adopt five classes of direct-through/cross network cables when it connects other Ethernet terminals.
-
Page 19: Connecting 10Ge Ethernet Optical Ports
3.3.5 Connecting 10GE Ethernet Optical Ports BDCOM GP3600-16 provides with 4 fixed 10GE optical ports (T1~T4). On the right side is the LINK/ACT indicators. If the indicator is always on, the system is linked normally; if the indicator flickers, the data is forwarded through the port. To use the optical port, you need connect it to the SFP optical module, and then to other Ethernet terminal devices through an optical fiber. -
Page 20: Checking After Installation
BDCOM GP3600-16 GPON Hardware Installation Manual 3.4 Checking after Installation After BDCOM GP3600-16 GPON is installed, please conduct the following checkups before it is powered. If the GPON access device is installed on the cabinet, check whether the installation point between the cabinet and the GPON access device is strong. If... -
Page 21: Chapter 4 Maintaining The Gpon Access Device
BDCOM GP3600-16 GPON Hardware Installation Manual Chapter 4 Maintaining the GPON Access Device Caution: Before opening the chassis, make sure that you have released the static you carried and then turn off the power on-off of the GPON access device. Before operating any step in Appendix B, read the section “Safety Advice”. -
Page 22: Closing The Chassis
BDCOM GP3600-16 GPON Hardware Installation Manual When the cover is opened, put it aside. The main board of the system appears. Note: After taking off the cover, put it horizontally and avoid it to be crushed or collided. Otherwise, the chassis is hard to install. - Page 23 BDCOM GP3600-16 GPON Hardware Installation Manual See the following figure. When the cover and the bottom are closely tied, let the cover slide the slot of the front template at the bottom. Nail the bolt and screw it tightly with the screwdriver.
-
Page 24: Chapter 5 Hardware Fault Analysis
5.2 Indicator Description The LEDs are used to show what operations are conducted by the GPON access device. For the LEDs of BDCOM GP3600-16 GPON and their description, see the following table: Abbrev. - Page 25 BDCOM GP3600-16 GPON Hardware Installation Manual If the indicator is on, the temperature of the Alarm indicator device is over high and need to check. If the indicator is always on, the system is being started. System indicator If the indicator flickers, the system works normally.
