2.2 System components

2.2.1 Front panel

LED indication
for the events
Heat printer
(option)

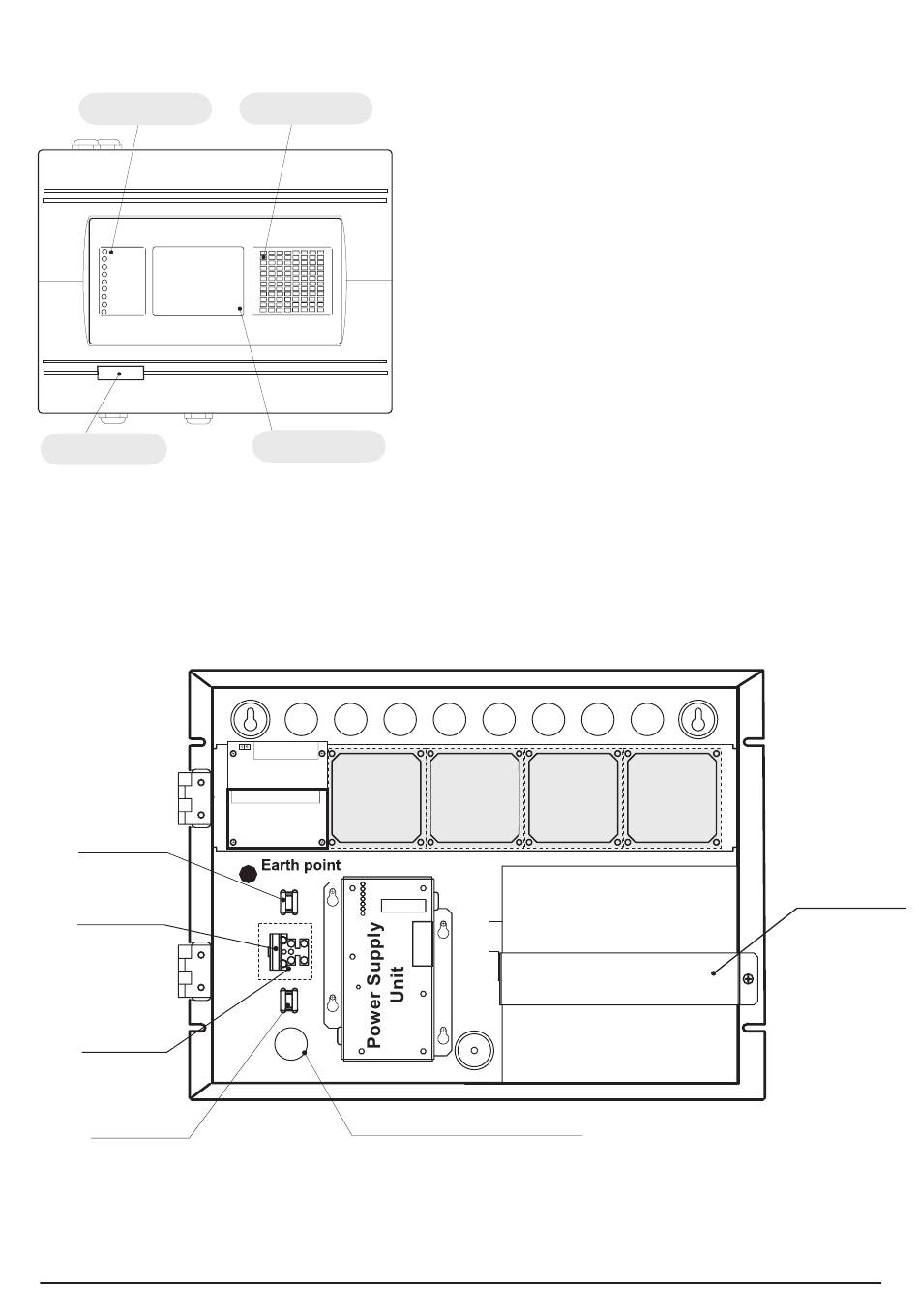

Figure 9.
Main view of the front panel.

2.2.2 Configuration of the basic modules

Clamp for supporting
the main power
supply cable.
A slow type fuse 2A
situated into
the terminal.
Terminal for
connection
between the mains
power supply and
the power source.
Clamp for supporting
the main power
supply cable.
Figure 10. Configuration of the basic modules in the system.
Addressable Fire Panel MAGPRO96 - Installation and Programming Manual
LED indication
for the zones
LCD Display
(320x240)
I/O Module
Loop
Controller
4 Relay 1
Module
Mains power supply opening.
LED-indication of the events provides following functions:
GENERAL FIRE - General FIRE Indication
PREALARM - Indication for zones in Pre-Alarm Condition
GENERAL FAULT - General FAULT Indication
SYSTEM FAULT - General SYSTEM FAULT Indication
SYSTEM SILENCE - General Indication for Silenced Sounders
DELAY - General Indication for Active Delay in any of the Out-
puts
DISABLE - General Indication for introduced Disability
TEST - General Indication for Test
POWER ON - Presence of mains power supply 230V AC
Loop Loop
Controller Controller
2 3
Accumulator
Battery
12V / 18 Ah
Loop
Controller
4
Metal clamp for
supporting
the battery.
