MAGPRO-WSBIP65
Waterproof IP65 deep base
for use with sounder models :
MAGPRO-WS
MAGPRO-WSS
MAGPRO-WSS23
EN 60529+A1:2004
Distributor:
Elite Security Products Ltd, Unit 7
Target Park, Shawbank Road Lakeside,
Redditch B98 8YN, UK
http://www.espuk.com
Manufacturer:
Teletek Electronics JSC,
Address: 14A Srebarna Str,
1407 Sofia, Bulgaria
!
Installation
The declared IP65 is
achieved only when using
IP65 or higher rated cable
glands!
IP65*
* With mounted sounder:
- MAGPRO-WS
- MAGPRO-WSS
- MAGPRO-WSS23
Indoor and
Outdoor Use
INSTALLATION INSTRUCTIONS
ATTENTION: MAGPRO-WSBIP65 must be connected only to fire panels, which support MAGPRO
communication protocol!
General Description
MAGPRO-WSBIP65 is a waterproof protected deep base specially designed for outdoor installations of addressable sounders
MAGPRO series. The deep base is suitable for wall mounting in applications in aggressive environments requiring IP65
protection of the devices.
MAGPRO-WSBIP65 comes in a kit with a solid rubber gasket, o-ring sealant and IP65 rated cable glands.
MAGPRO-DB standard base is mounted with screws.
Installation
1. Remove the MAGPRO-DB standard base from the deep base body.
2. Remove the knockouts and place the two cable glands from the kit.
3. Fix the deep base and the solid gasket to the mounting surface.
4. Run the loop wires through the cable glands.
5. Mount the MAGPRO-DB standard base back in place as observe the short mark on its narrow side to align with the short
mark of the deep base. Then fix the standard base to the deep base body with the screws from the kit.
6. Connect the loop wires to the standard base terminals according the connection diagram. Please, also refer to the
installation manual of the mounted sounder to perform a correct wiring - the electrical connection may differ according that the
sounder is with or without built-in isolator module.
Technical Specifications
Installation wires. . . . . . . . . 3mm
Material (plastic), color . . . . ABS, red
Operation temperature . . . . -10°C ÷ +60°C
Relative humidity . . . . . . . . ≤93% @ +40°C
Weight . . . . . . . . . . . . . . . . ~140.5g
!

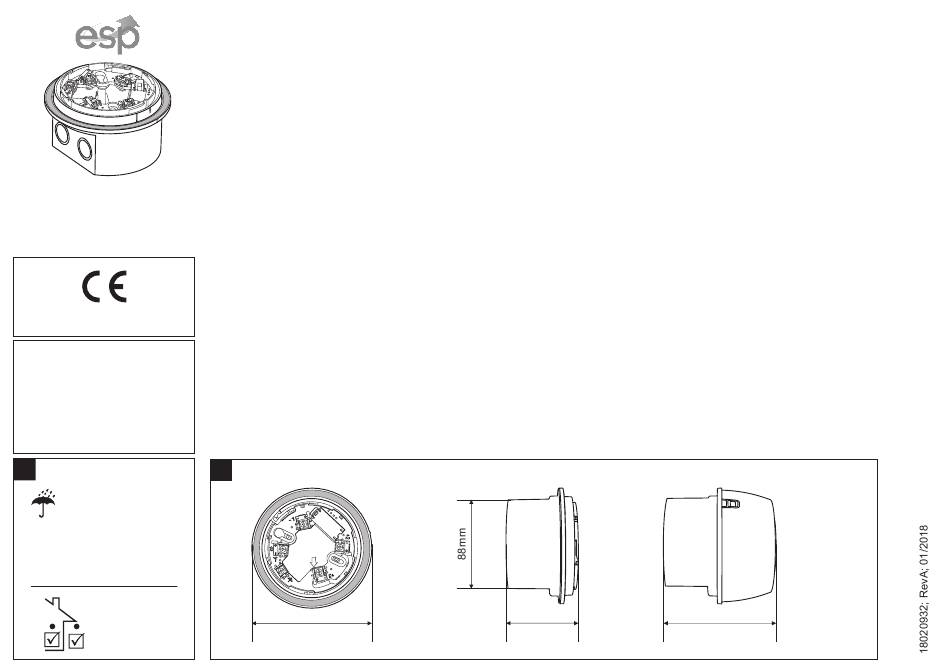

Dimensions
120mm
2
68mm
With mounted
sounder
108mm
